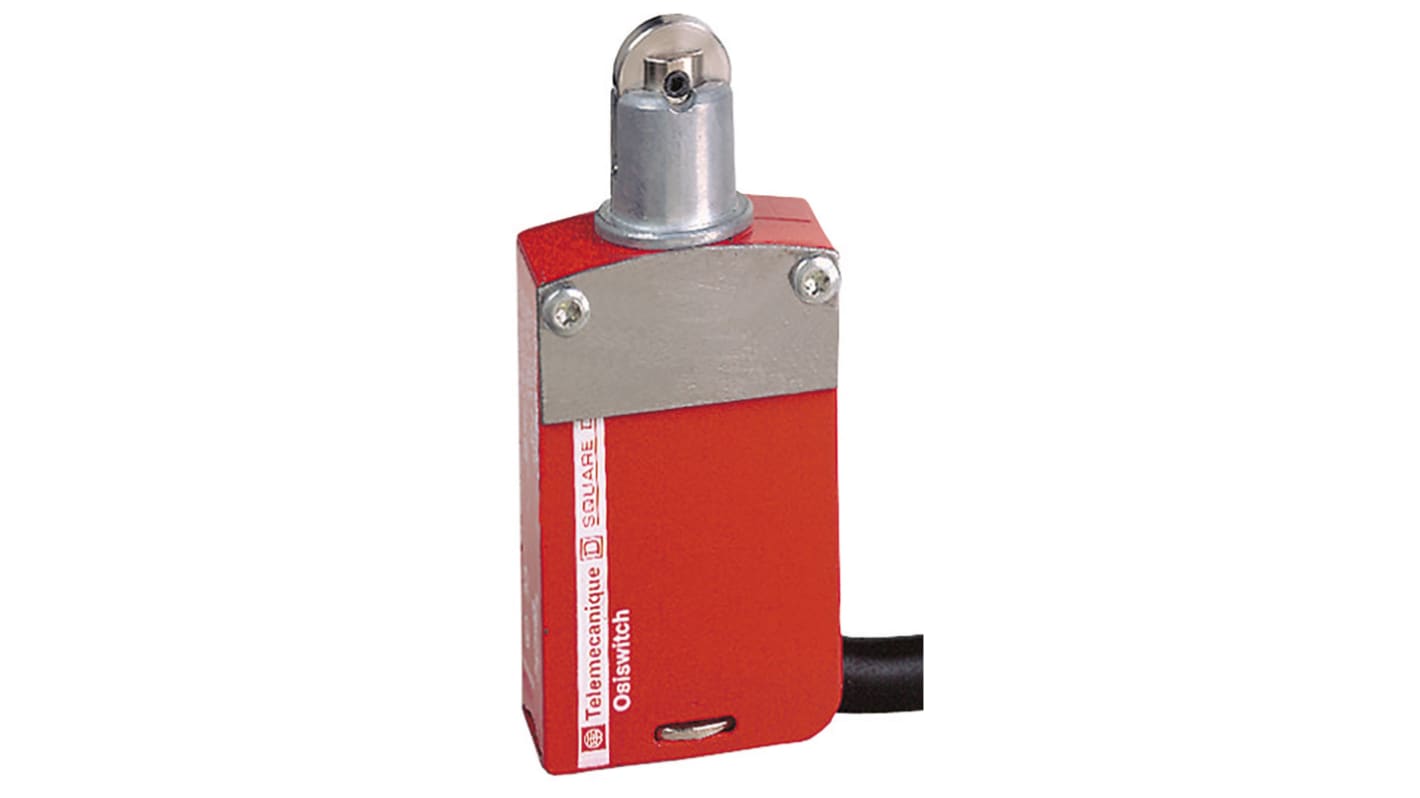

Telemecanique Sensors XCSM Series Roller Plunger Safety Limit Switch, 2 NO/2 NC, IP66, IP67, IP68, Metal Housing, 400V

RS Stock No.:: 133-0061
Distrelec Article No.:: 304-10-785
Mfr. Part No.:: XCSM4102L5
Brand:: Telemecanique Sensors

Telemecanique Sensors XCSM Series Roller Plunger Safety Limit Switch, 2 NO/2 NC, IP66, IP67, IP68, Metal Housing, 400V

Subtotal (1 unit)*

£136.80

(exc. VAT)

£164.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

5 unit(s) ready to ship
Plus 7 unit(s) ready to ship from another location
Plus 45 unit(s) shipping from 16 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£136.80

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 133-0061
Distrelec Article No.:: 304-10-785
Mfr. Part No.:: XCSM4102L5
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Product Type	Safety Limit Switch
	IP Rating	IP66, IP67, IP68
	Contact Configuration	2 NO/2 NC
	Housing Material	Metal
	Contact Type	Snap Action
	Terminal Type	Pre-Cabled
	Switching Current	6A
	Series	XCSM
	Switching AC Voltage	400V ac
	Switching DC Voltage	300V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Length	70mm
	Width	30mm
	Standards/Approvals	CSA, UL
	Depth	16mm
	Hazardous Area Certification	No
	Mounting Orientation	Horizontal
	Operating Force	7N
	Mechanical Life	10000000Cycles
	Conduit Entry	M20

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Product Type Safety Limit Switch
	IP Rating IP66, IP67, IP68
	Contact Configuration 2 NO/2 NC
	Housing Material Metal
	Contact Type Snap Action
	Terminal Type Pre-Cabled
	Switching Current 6A
	Series XCSM
	Switching AC Voltage 400V ac
	Switching DC Voltage 300V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Length 70mm
	Width 30mm
	Standards/Approvals CSA, UL
	Depth 16mm
	Hazardous Area Certification No
	Mounting Orientation Horizontal
	Operating Force 7N
	Mechanical Life 10000000Cycles
	Conduit Entry M20

Telemecanique Sensors XCSM Series Safety Limit Switch, IP66/IP67/ IP68, 2 NO/2 NC Contact Configuration - XCSM4102L5

This safety limit switch provides a robust electromechanical means of detecting actuator travel and initiating machine safety or control responses in industrial environments. It uses a roller plunger actuator to convert mechanical motion into snap-action contact changes, intended for horisontal mounting on equipment where ingress protection and dependable switching are required.

Features and Benefits:

• Metal housing resists mechanical damage for extended service life
• 2NO/2NC snap action contacts deliver clear make/break signals
• Switching capability up to 300V DC and 6A supports varied circuits
• Pre-cabled design with M20 conduit entry simplifies installation
• Rated for 10000000 cycles for long-term operational duty
• Operates between -25°C and 70°C for broad environmental range

Applications

• Suitable for conveyor end-of-travel detection in factories
• Ideal for guarding interlocks on assembly-line machinery
• Used for position sensing on packaging equipment
• Can be used for safety monitoring of industrial presses

How is the switch mounted and routed on machinery?

It is designed for horisontal mounting and features an M20 conduit entry for secure cable routing and conduit connection.

What contact arrangement is provided for safety circuits?

It offers two normally open and two normally closed contacts arranged for snap-action switching to facilitate safety and control circuit layouts.

How does the unit perform in wet or dusty environments?

The enclosure meets high ingress protection levels enabling operation in environments requiring IP66, IP67 and IP68 resistance to dust and water.

What electrical standards does it comply with for use in installations?

The unit has approvals from recognised North American safety bodies to meet specified installation requirements.

What actuation force should be expected during use?

The roller plunger requires an operating force of 7 N to actuate the contact mechanism.
