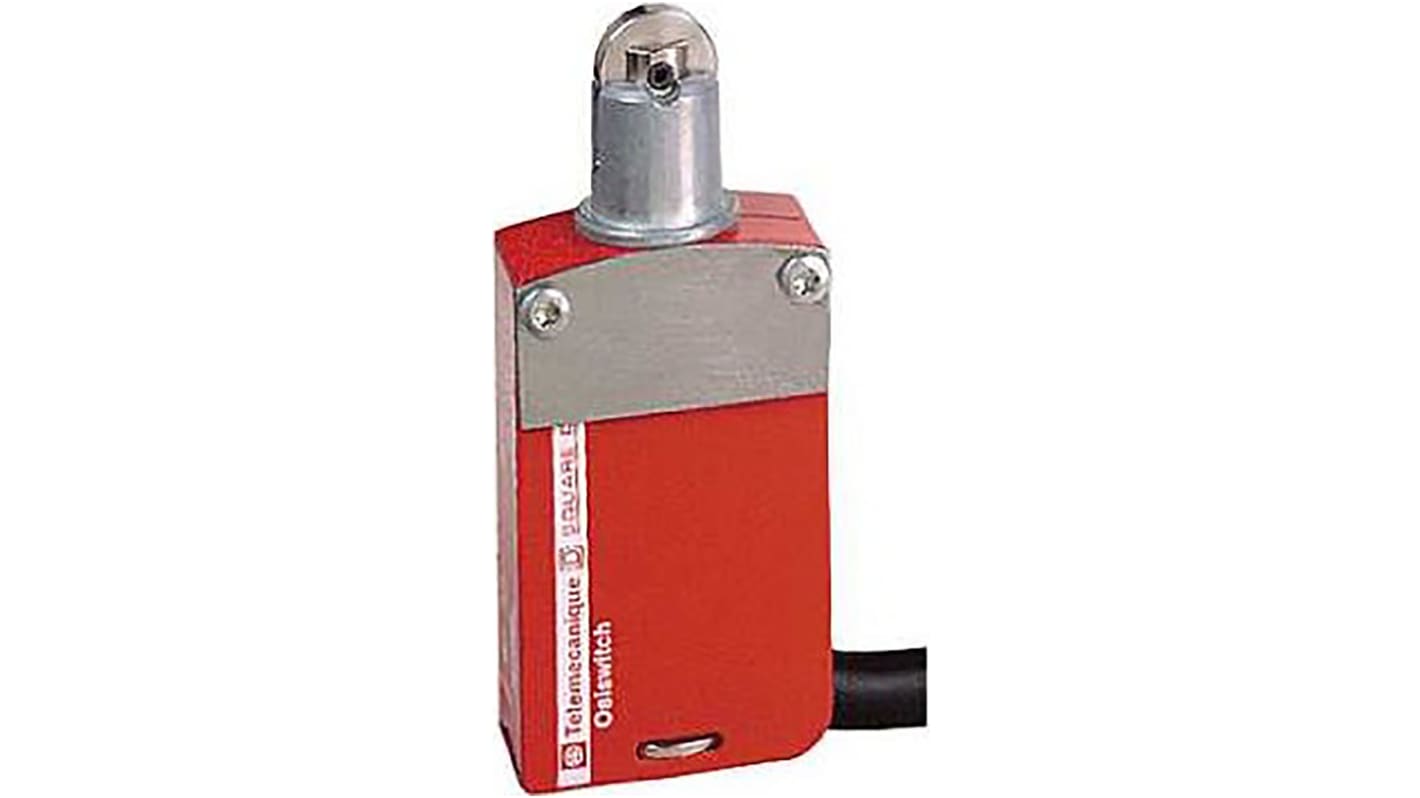

Telemecanique Sensors XCSM Series Roller Plunger Interlock Switch, 1 NO/2 NC, IP68, IP67, IP66, Metal Housing, 400V ac,

RS Stock No.:: 133-0064
Distrelec Article No.:: 304-10-783
Mfr. Part No.:: XCSM3702L5
Brand:: Telemecanique Sensors

Telemecanique Sensors XCSM Series Roller Plunger Interlock Switch, 1 NO/2 NC, IP68, IP67, IP66, Metal Housing, 400V ac,

Subtotal (1 unit)*

£121.00

(exc. VAT)

£145.20

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

5 unit(s) shipping from 07 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£121.00

*price indicative

RS Stock No.:: 133-0064
Distrelec Article No.:: 304-10-783
Mfr. Part No.:: XCSM3702L5
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Product Type	Interlock Switch
	Contact Configuration	1 NO/2 NC
	IP Rating	IP68, IP67, IP66
	Housing Material	Metal
	Contact Type	Snap Action
	Switching Current	6A
	Terminal Type	Cable
	Series	XCSM
	Switching AC Voltage	400V ac
	Switching DC Voltage	300V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Length	30mm
	Standards/Approvals	RoHS
	Width	16mm
	Depth	70.4mm
	Hazardous Area Certification	NO
	Mechanical Life	10000000Cycles
	Conduit Entry	M20
	Operating Force	35N
	Mounting Orientation	Horizontal

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Product Type Interlock Switch
	Contact Configuration 1 NO/2 NC
	IP Rating IP68, IP67, IP66
	Housing Material Metal
	Contact Type Snap Action
	Switching Current 6A
	Terminal Type Cable
	Series XCSM
	Switching AC Voltage 400V ac
	Switching DC Voltage 300V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Length 30mm
	Standards/Approvals RoHS
	Width 16mm
	Depth 70.4mm
	Hazardous Area Certification NO
	Mechanical Life 10000000Cycles
	Conduit Entry M20
	Operating Force 35N
	Mounting Orientation Horizontal

XCSM Series, Safety Limit Switches

The Schneider XCSM series of miniature/compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with actuator operated guard switches. When used on their own they are always installed in ’positive mode’, but if combined in pairs then one switch in ’positive mode’ and the other switch in ’negative mode’. Available with a linear movement (plunger) or rotary movement (lever).

N/C contacts with positive opening operation

Snap action contacts

Miniature/compact red metal housing, pre-cabled

Plastic protective cover, secured by 5-lobe socket head safety screw

Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°

Linear movement switch (plunger) has an on-end approach only

IP66/67 protection in accordance with EN/IEC 60529

ROHS compliant

Safety Limit Switch

Note

With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Approvals

UL, CSA.

Standards

CSA C22-2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508.
