Telemecanique Sensors XCKT Series Plunger Limit Switch, NO/NC, IP66, IP67, DP, Plastic Housing, 240V ac Max, 10A Max

View all Limit Switches

Subtotal (1 unit)*

£94.89

(exc. VAT)

£113.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 85 unit(s) ready to ship
  • Plus 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£94.89

*price indicative

RS Stock No.:
447-3525
Distrelec Article No.:
136-30-878
Mfr. Part No.:
XCKT2110P16
Brand:
Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all

Brand

Telemecanique Sensors

Actuator Type

Plunger

Pole and Throw Configuration

DP

Normal State Configuration

NO/NC

IP Rating

IP66, IP67

Maximum Current

10A

Housing Material

Plastic

Maximum AC Voltage

240V

Maximum DC Voltage

250V

Connection Type

M16

Series

XCKT

Action Type

Snap Action

Length

51mm

Width

58mm

Minimum Operating Temperature

-25°C

Depth

30mm

Maximum Operating Temperature

+70°C

Mechanical Life

15000000Cycles

RoHS Status: Exempt

COO (Country of Origin):
ID

Telemecanique Limit Switches


Introducing Telemecanique XCKT range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?


The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.

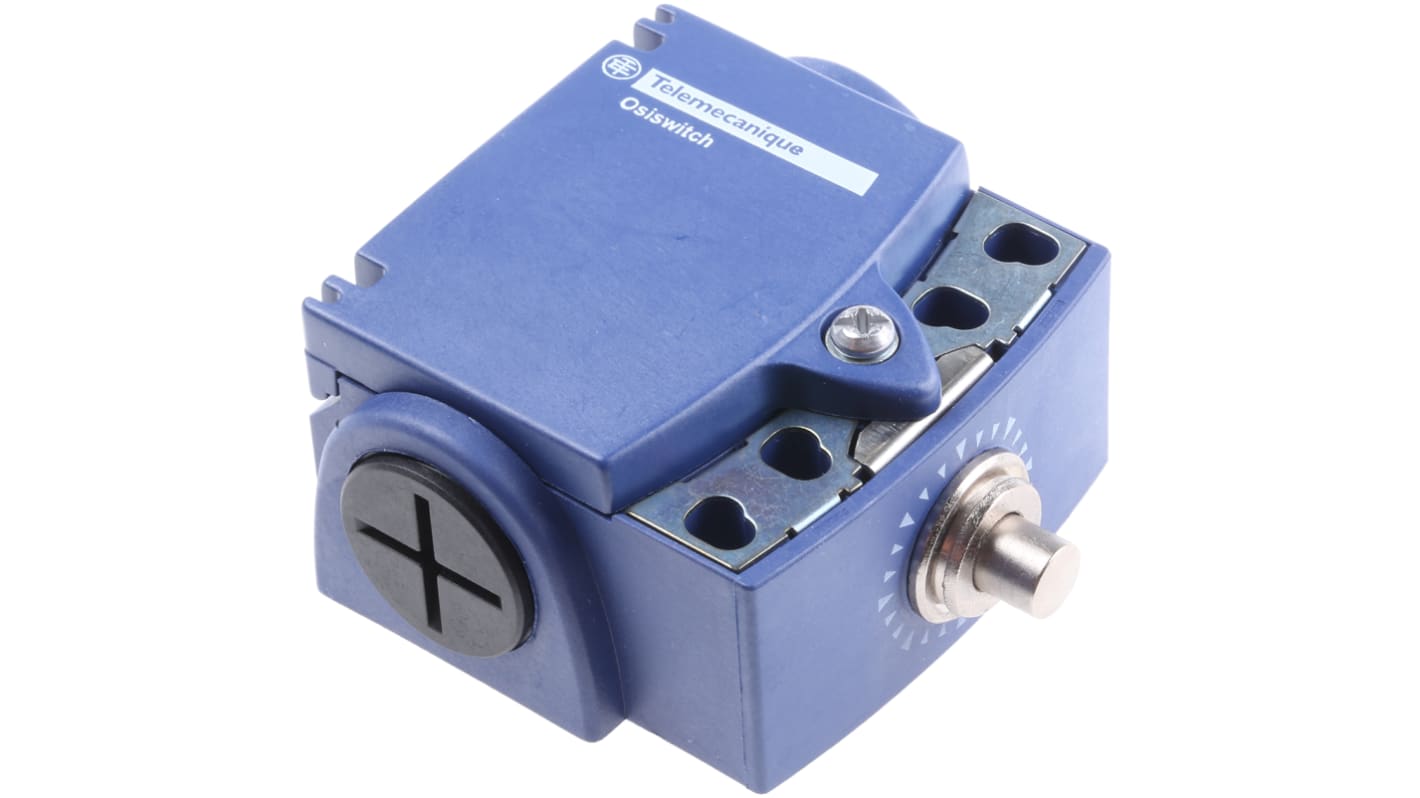

Telemecanique XCKT2110P16 Limit Switch


• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a plunger head
• Comprised of a hardwearing plastic material
• The operator type is a spring return plunger metal
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum force for tripping is 15 N
• Dimensions – W58mm x H51mm x D30mm
