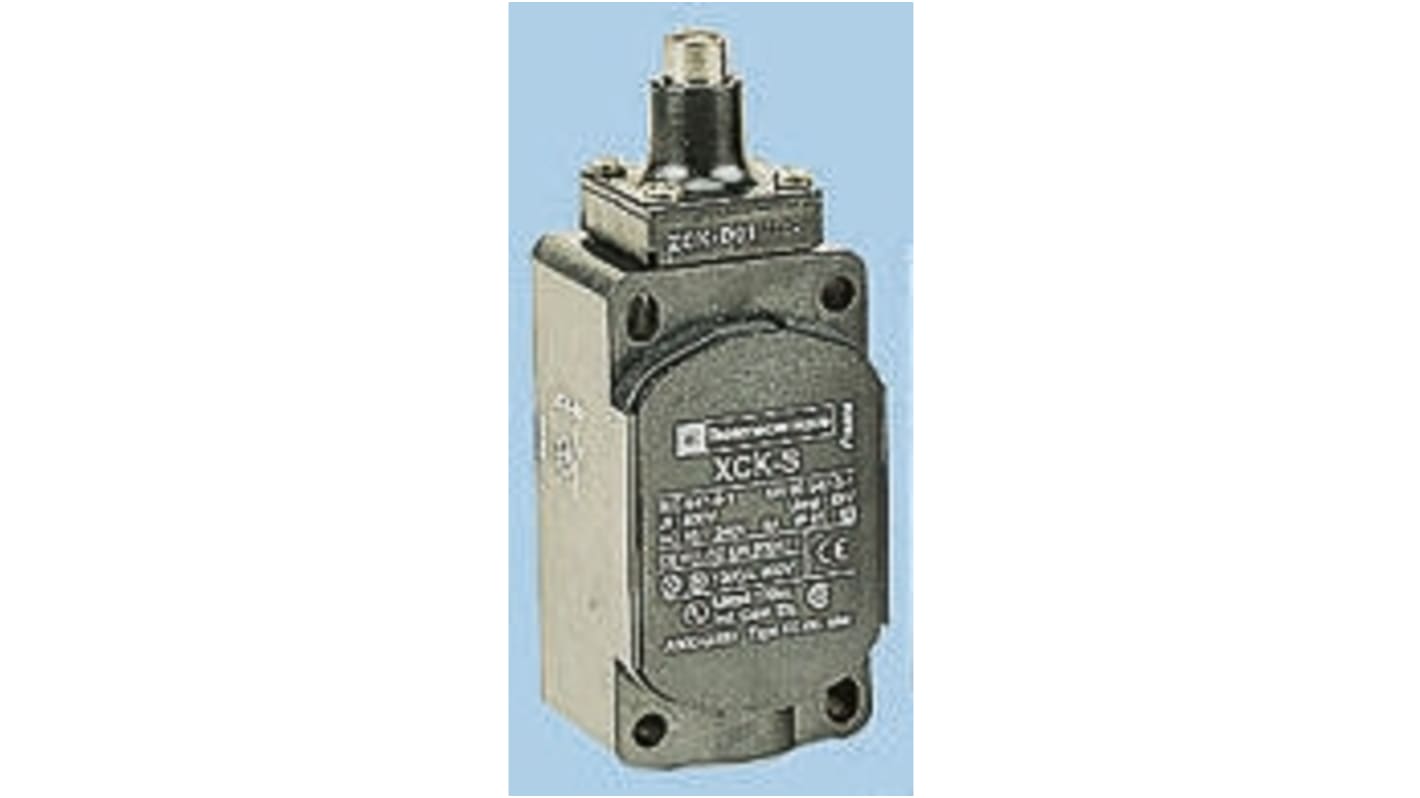

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, 1 NO/1 NC, IP65, Plastic Housing, 240V ac, 3A
- RS Stock No.:
- 230-1850
- Mfr. Part No.:
- XCKS101
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£57.70
(exc. VAT)
£69.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 08 June 2026
- Plus 3 unit(s) shipping from 08 June 2026
- Plus 9 unit(s) shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.70 |
*price indicative
- RS Stock No.:
- 230-1850
- Mfr. Part No.:
- XCKS101
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP65 | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Terminal Type | Screw Clamp | |
| Switching Current | 3A | |
| Series | OsiSense XC | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA, UL, RoHS, REACH, CCC | |
| Width | 40mm | |
| Length | 72.5mm | |
| Depth | 36mm | |
| Hazardous Area Certification | No | |
| Mechanical Life | 25000000Cycles | |
| Operating Force | 30N | |
| Mounting Orientation | Vertical | |
| Conduit Entry | PG13 | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP65 | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Terminal Type Screw Clamp | ||
Switching Current 3A | ||
Series OsiSense XC | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA, UL, RoHS, REACH, CCC | ||
Width 40mm | ||
Length 72.5mm | ||
Depth 36mm | ||
Hazardous Area Certification No | ||
Mechanical Life 25000000Cycles | ||
Operating Force 30N | ||
Mounting Orientation Vertical | ||
Conduit Entry PG13 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ID
Telemecanique Limit Switches
Introducing Telemecanique XCKS range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
