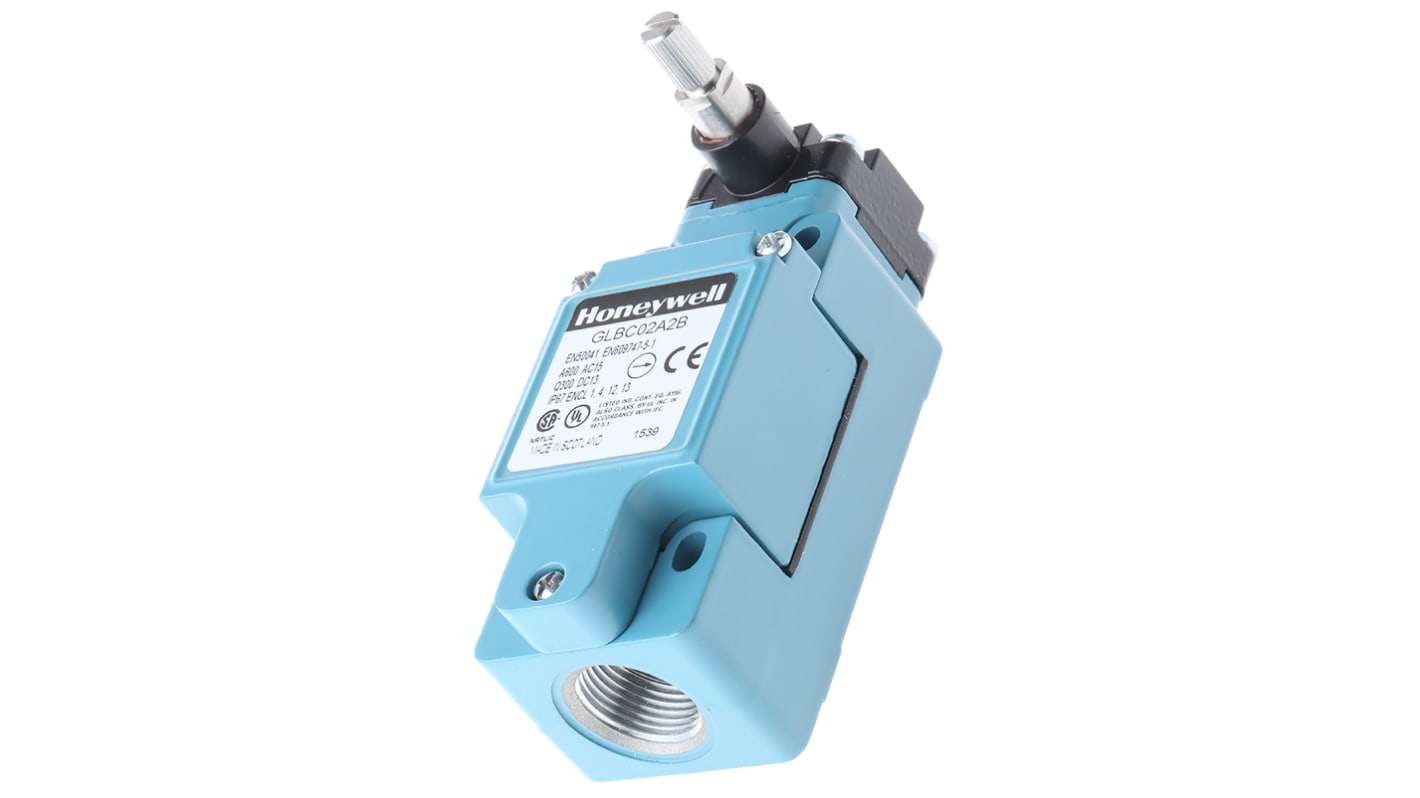

Honeywell GLB Series Rod Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max

From Honeywell, the GLB series of limit switches form part of the wider GLS range. The GLB series is a plug in solution with a durable and hardwearing construction. GLB limit switches are designed for worldwide applications and meet the global EN 50041 standard for switch mounting centres.

• Snap action normally closed (NC) contacts and slow action normally open (NO) contacts are both positive opening.
• An analog output is available with models featuring a side rotary actuator.
• Operating temperature range of -40 °C and +85 °C.
• GLB limit switches are resistant to shock, vibration and washdowns.
• Models with single pole double throw (SPDT) and two pole single throw (2NC and 2NO) contact blocks are galvanically isolated. For double pole double throw (DPDT) contact blocks, each pole is galvanically isolated.
• GLB limit switches use bifurcated contacts.

• GLB limit switches have a modular design. The actuators, bodies and contact blocks are easy to adjust. This allows you to customise the unit to suit your application. It is so straightforward to adjust the limit switch, this can even be done out in the field.
• The models are available with different conduit options enabling them to be used for global applications.
• These limit switches are incredibly easy to install and maintain.
• GLB limit switches are constructed from hardwearing, rugged die-cast electrostatic epoxy coated zinc. They can be used in indoor or outdoor applications
• You can have full confidence that these limit switches are a robust option. They are suitable for repeated use, with a mechanical lifespan of up to 15 million operations.

Suitable applications for GLB limit switches include:
• Aerial lifts and boom lifts
• Assembly lines, conveyors, cranes, elevators and hoists
• Construction equipment and machinery, including vehicles and lift trucks
• Material handling and machining tools
• Textile machinery
• Packaging equipment
• Transportation hubs
• Valves
• Railroad signalling equipment and locomotives
• Apertures and doors

Yes, all of the levers that make up side rotary assemblies can be purchased as replacement parts. All switch heads that meet standard EN 50041 can be removed and replaced.

IEC/EN 60947-5-1
While IEC/EN 609747-1 covers general rules relating to low voltage switchgear and control gear, IEC/EN 60947-5-1 specifically relates to control circuit devices and switching elements. The standard monitors the characteristics of devices, the electrical and mechanical requirements and the functional requirements.

EN50047
GLB limit switches are constructed from housing that meets EN50047. EN50047 applies to position switches with an automatic return actuator. Models that meet EN50047 feature standardised characteristics and dimensions (30.5 x 31.1 x 68 mm).

IP 66
A rating of IP 66 ensures that the limit switch units are protected against dust and low-pressure jets of water.

Sealed to NEMA 1, 4, 12, 13
NEMA 1 states that enclosures can be used indoor and offers a degree of protection against contact with the equipment enclosed.
NEMA 4 states that enclosures can be used either indoor or outdoor and provide protection against windblown rain and dust, hose directed water and splashing water.
NEMA 12 states that enclosures are intended for use indoors and offer some protection from dust, dirt, falling dirt and dripping non-corrosive liquids.
NEMA 13 states that enclosures are used indoors and offer a level of protection from oil, non-corrosive coolants, spraying water and dust.

UL, CSA, CE, CCC

Use this Honeywell limit switch to detect moving objects when they pass or reach their final destination. The roller actuator's height is adjustable using the bracket, so you can adapt it to your specifications. A plug-in body style means it's quick and simple to install. As it's made from a die-cast metal material with an epoxy coating, it's durable and resistant to corrosion, making it suitable for use in both indoor and outdoor applications.

• Wide operating temperature range of -25°C to +85°C for use in demanding applications
• IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for 30 minutes
• Snap-action design for a fast response time
• Compact dimensions of 145.8 (length) x 42 (width) x 55.9mm (depth) for use in areas where space is limited

• Construction machinery
• Process and control automation
• Packaging industry
• Textiles manufacturing

The switch has a long mechanical lifespan of up to 15 million cycles, so it will last a long time.

UL; CSA

UL/ UL listed for Canada
