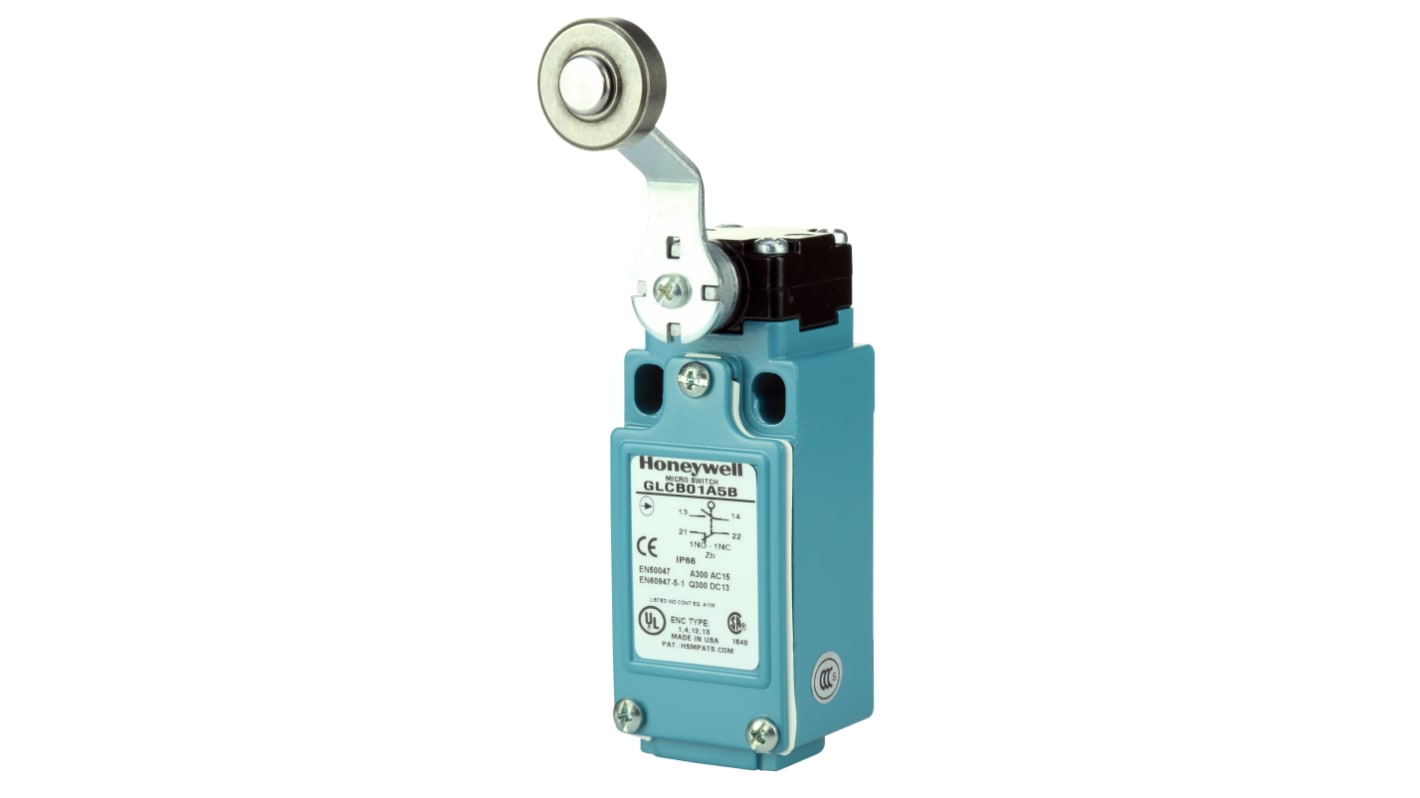

Honeywell Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 600V ac, 10A

RS Stock No.:: 217-7131
Mfr. Part No.:: GLCB01A5B
Brand:: Honeywell

Honeywell Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 600V ac, 10A

Subtotal (1 unit)*

£115.58

(exc. VAT)

£138.70

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£115.58

*price indicative

Upgrade to Honeywell HDLS Limit Switches

Rugged, reliable, and built for tough environments - Honeywell HDLS limit switches deliver long-lasting performance and precise actuation. A simple way to boost durability and reduce downtime.

Shop Here

RS Stock No.:: 217-7131
Mfr. Part No.:: GLCB01A5B
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	IP Rating	IP67
	Contact Configuration	SPDT
	Housing Material	Die Cast Zinc
	Contact Type	Snap Action
	Terminal Type	Screw
	Switching Current	10A
	Switching AC Voltage	600V ac
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	CCC, CE, CSA, RoHS, UL
	Width	30.5mm
	Depth	31.1mm
	Length	110mm
	Hazardous Area Certification	NO
	Mechanical Life	10000000Cycles
	Operating Force	0.12Nm
	Mounting Orientation	Multi Directional
	Conduit Entry	PG13.5

	Select all
	Brand Honeywell
	Actuator Type Roller Lever
	Product Type Limit Switch
	IP Rating IP67
	Contact Configuration SPDT
	Housing Material Die Cast Zinc
	Contact Type Snap Action
	Terminal Type Screw
	Switching Current 10A
	Switching AC Voltage 600V ac
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals CCC, CE, CSA, RoHS, UL
	Width 30.5mm
	Depth 31.1mm
	Length 110mm
	Hazardous Area Certification NO
	Mechanical Life 10000000Cycles
	Operating Force 0.12Nm
	Mounting Orientation Multi Directional
	Conduit Entry PG13.5

Honeywell Limit Switch, 10A Switching Current, IP67 - GLCB01A5B

This limit switch is a Compact mechanical actuator used to detect position and control circuits within industrial systems. It is suited to applications requiring a robust actuator and reliable contact changeover in harsh environments, offering a watertight enclosure and compatibility with varied mounting orientations.

Features and Benefits:

• Die-cast zinc housing provides corrosion-resistant protection
• Roller lever actuator enables consistent mechanical actuation
• SPDT snap-action contact offers Rapid state change under load
• Rated switching current of 10A supports moderate power circuits
• Withstands AC switching voltages up to 600V for high-voltage use
• Mechanical life of 10 million cycles reduces replacement frequency

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for limit detection on automated packaging machinery
• Used with access doors and guards to monitor open/closed status
• Can be used for position sensing in material-handling equipment

What electrical connection method does it use?

Termination is via screw-type terminals designed for secure wiring and straightforward field connections.

How does the enclosure cope with ingress and outdoor exposure?

The enclosure meets IP67 protection level, allowing temporary immersion and reliable dust exclusion in harsh settings.

What temperature range can it operate within?

It functions across a -40 to 85 °C ambient range, covering cold storage to elevated plant temperatures.

Are there approvals relevant to industrial installations?

It carries multiple standards and approvals including CE, UL, CSA, CCC and RoHS conformity for broad regulatory acceptance.

How is the conduit provided for cable entry?

A PG13.5 conduit entry is provided to allow standard industrial cable gland fittings and secure conduit attachment.
