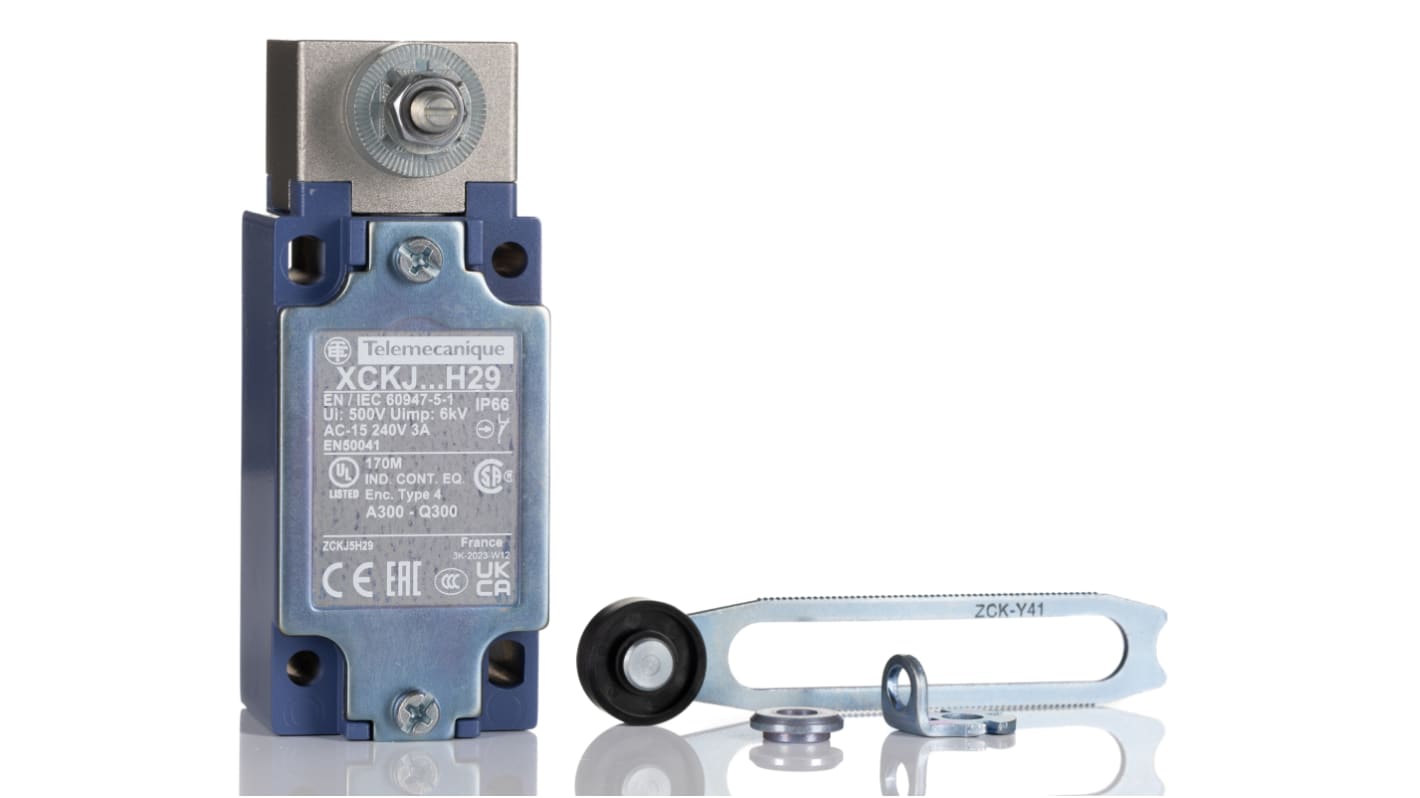

Telemecanique Sensors XCKJ Series Roller Lever Limit Switch, 2P, IP66, Zinc Zamak Alloy Housing, 240V ac, 3A
- RS Stock No.:
- 195-1672
- Mfr. Part No.:
- XCKJ50541H29
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£90.90
(exc. VAT)
£109.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.90 |
*price indicative
- RS Stock No.:
- 195-1672
- Mfr. Part No.:
- XCKJ50541H29
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| Contact Configuration | 2P | |
| IP Rating | IP66 | |
| Housing Material | Zinc Zamak Alloy | |
| Contact Type | Snap Action | |
| Switching Current | 3A | |
| Terminal Type | M20 | |
| Series | XCKJ | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA, UL | |
| Width | 60mm | |
| Depth | 177mm | |
| Length | 40mm | |
| Hazardous Area Certification | NO | |
| Conduit Entry | 1/2 in NPT | |
| Mechanical Life | 30000000Cycles | |
| Operating Force | 0.25Nm | |
| Mounting Orientation | Cable | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
Contact Configuration 2P | ||
IP Rating IP66 | ||
Housing Material Zinc Zamak Alloy | ||
Contact Type Snap Action | ||
Switching Current 3A | ||
Terminal Type M20 | ||
Series XCKJ | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA, UL | ||
Width 60mm | ||
Depth 177mm | ||
Length 40mm | ||
Hazardous Area Certification NO | ||
Conduit Entry 1/2 in NPT | ||
Mechanical Life 30000000Cycles | ||
Operating Force 0.25Nm | ||
Mounting Orientation Cable | ||
Telemecanique Sensors Limit Switch, Rotary Head Type, 6kV Rated Impulse Withstand Voltage - XCKJ Series - XCKJ50541H29
Need to control an electrical circuit using rotary motion? Take a turn with this limit switch from Telemecanique Sensors. Its head rotates when pushed by a moving object, producing signals to make or break currents in a jiffy. This hardy component has an IP66 rating, so it's dust-tight and withstands high-pressure water jets from any angle. For additional electrical safety, it comes with a 10A cartridge fuse that instantly cuts power in the event of a short circuit.
Features & Benefits
• Zinc alloy body is resistant to corrosion so it's suitable for humid conditions
• Small size of 40 (W) x 77 (H) x 44mm (D) means it saves space
• Vibration resistance of 25gn so it's suitable for heavy-duty applications
• Mechanical durability rating of 30,000,000 cycles means it's highly reliable over long periods
Applications
• Material handling equipment
• Semiconductor manufacturing industry
• Control cabinets
• Construction machinery
Can I use this switch in harsh conditions?
Yes – this limit switch withstands temperatures in a wide range between -25°C and +70°C, so it's suitable for demanding conditions.
