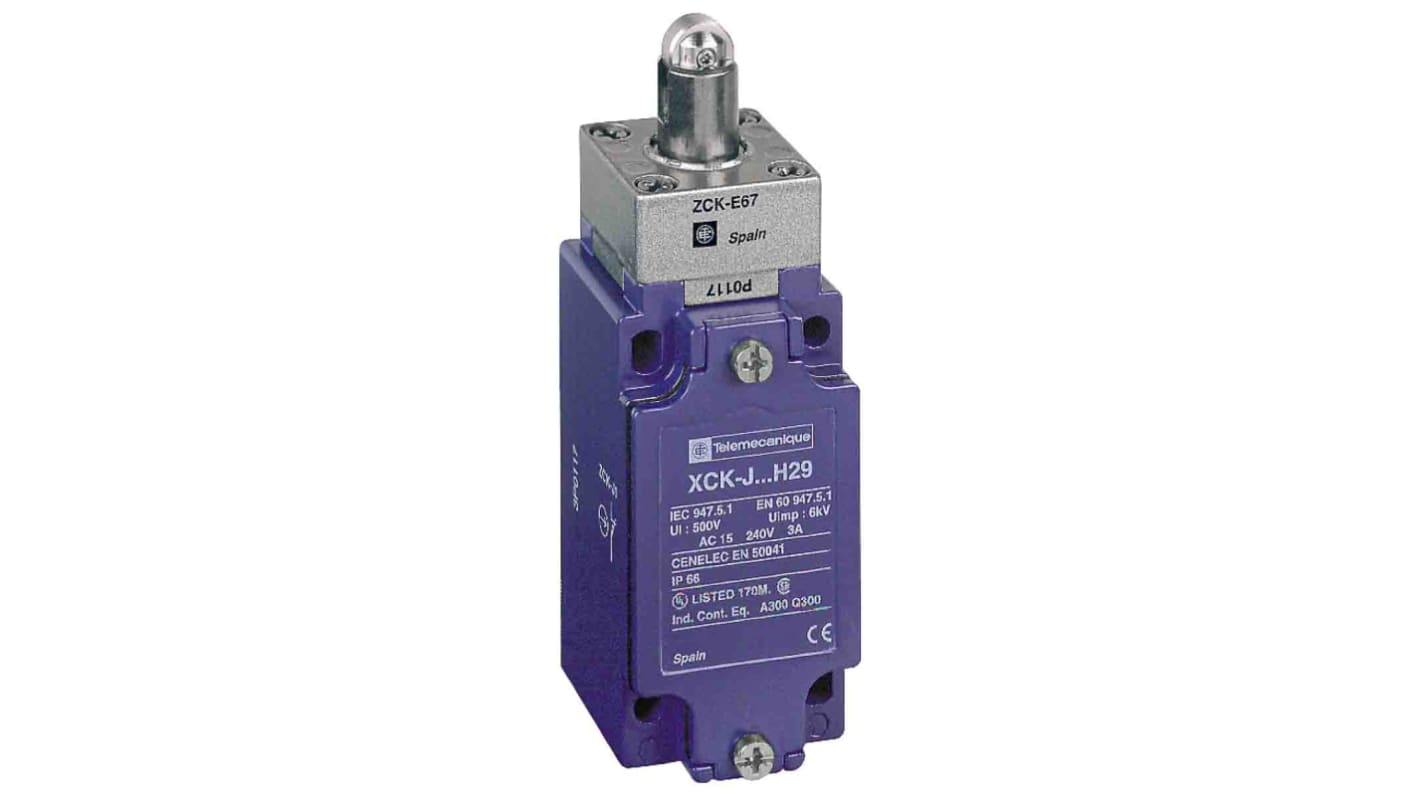

Telemecanique Sensors XCKJ Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Zamak Alloy Housing, 50V ac, 3A

RS Stock No.:: 195-1667
Mfr. Part No.:: XCKJ167
Brand:: Telemecanique Sensors

Telemecanique Sensors XCKJ Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Zamak Alloy Housing, 50V ac, 3A

Subtotal (1 unit)*

£84.90

(exc. VAT)

£101.88

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

67 unit(s) ready to ship
Plus 19 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£84.90

*price indicative

RS Stock No.:: 195-1667
Mfr. Part No.:: XCKJ167
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66
	Housing Material	Zinc Zamak Alloy
	Contact Type	Snap Action
	Switching Current	3A
	Series	XCKJ
	Switching DC Voltage	50V dc
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	50V ac
	Maximum Operating Temperature	70°C
	Length	40mm
	Width	44mm
	Depth	120mm
	Standards/Approvals	RoHS
	Hazardous Area Certification	No
	Mechanical Life	25000000Cycles
	Operating Force	40N
	Conduit Entry	1 Cable Gland x PG13.5
	Mounting Orientation	Cable

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP66
	Housing Material Zinc Zamak Alloy
	Contact Type Snap Action
	Switching Current 3A
	Series XCKJ
	Switching DC Voltage 50V dc
	Minimum Operating Temperature -25°C
	Switching AC Voltage 50V ac
	Maximum Operating Temperature 70°C
	Length 40mm
	Width 44mm
	Depth 120mm
	Standards/Approvals RoHS
	Hazardous Area Certification No
	Mechanical Life 25000000Cycles
	Operating Force 40N
	Conduit Entry 1 Cable Gland x PG13.5
	Mounting Orientation Cable

Telemecanique Sensors XCKJ Series Limit Switch, IP66, 1 NO/1 NC Contact Configuration - XCKJ167

This limit switch is a Compact industrial actuator used to detect position and initiate electrical switching in automated systems. It combines a roller plunger actuator with a snap‑action switching mechanism and is designed for cable-mounted installations where robust electrical connections and consistent contact behaviour are required.

Features and Benefits:

• Snap‑action contacts deliver fast electrical transition and precise control
• 1NO1NC configuration enables both make and break signalling
• 3 A switching current supports modest control and signalling loads
• 40N operating force permits reliable actuation under mechanical load
• IP66 ingress protection allows operation in dusty and water‑jet environments
• Mechanical endurance rated to 25,000,000 cycles for long operational life

Applications

• Suitable for end‑of‑travel detection on conveyor drives
• Ideal for interlock signalling on motorised gates
• Used for position feedback in packaging machinery
• Can be used for safety sensing on industrial presses
• Used with control panels requiring screw‑terminal wiring

What wiring method does it use for electrical connections?

It employs screw clamp terminals to secure conductors and facilitate straightforward field wiring.

How is the device mounted and protected from external cable routing?

The unit accepts a PG13 conduit entry for cable or conduit attachment and is intended for cable‑oriented mounting orientation.

What materials contribute to structural durability?

The enclosure is formed from Zamak, providing a metal housing that balances strength with economical mass.

What environmental temperature range can it operate within?

It is specified for use from -25 °C up to a maximum of 70 °C for typical industrial ambient conditions.

Which voltages can be switched by the contacts?

The contacts are suitable for switching up to 50V AC and up to 50V DC within the stated current rating.
