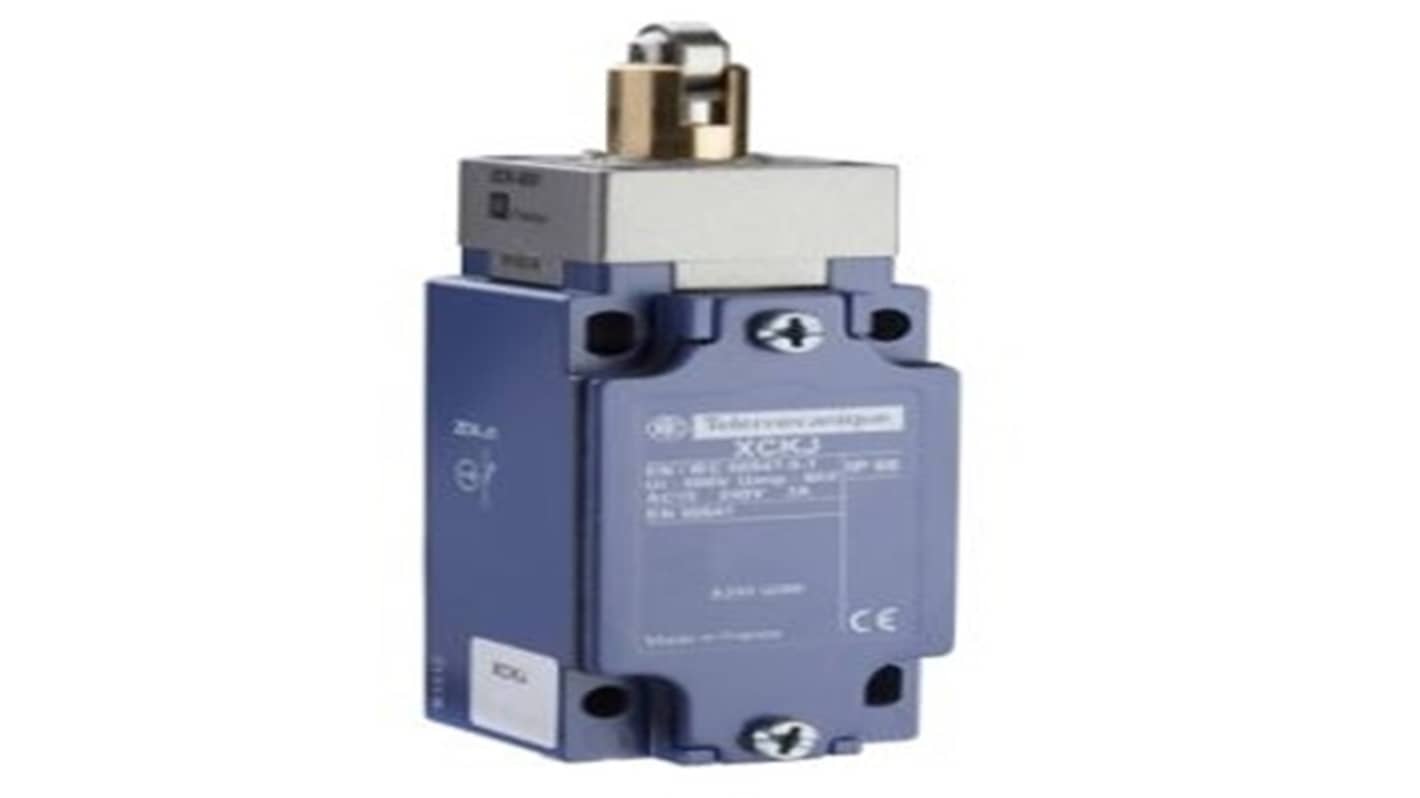

Telemecanique Sensors XCKJ Series steel roller plunger reinforced Limit Switch, 1 NO/1 NC, IP66, Zamak Housing, 240 V
- RS Stock No.:
- 434-697
- Mfr. Part No.:
- XCKJ432009
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£456.00
(exc. VAT)
£547.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £456.00 |
*price indicative
- RS Stock No.:
- 434-697
- Mfr. Part No.:
- XCKJ432009
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | steel roller plunger reinforced | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Housing Material | Zamak | |
| Switching Current | 3 A | |
| Series | XCKJ | |
| Switching DC Voltage | 250 V dc | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240 V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 60204-1, CSA C22.2 No 14, CENELEC EN 50041, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 | |
| Width | 43 mm | |
| Depth | 36mm | |
| Length | 36mm | |
| Hazardous Area Certification | No | |
| Mechanical Life | 5000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type steel roller plunger reinforced | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Housing Material Zamak | ||
Switching Current 3 A | ||
Series XCKJ | ||
Switching DC Voltage 250 V dc | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240 V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 60204-1, CSA C22.2 No 14, CENELEC EN 50041, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 | ||
Width 43 mm | ||
Depth 36mm | ||
Length 36mm | ||
Hazardous Area Certification No | ||
Mechanical Life 5000000Cycles | ||
- COO (Country of Origin):
- FR
The Telemecanique Sensors Limit switch with reinforced steel roller plunger is rated for 600 V AC and 10 A. It offers durable and reliable operation in industrial environments requiring robust mechanical actuation.
IP66 conforming to IEC 60529
IK07 conforming to EN 50102
