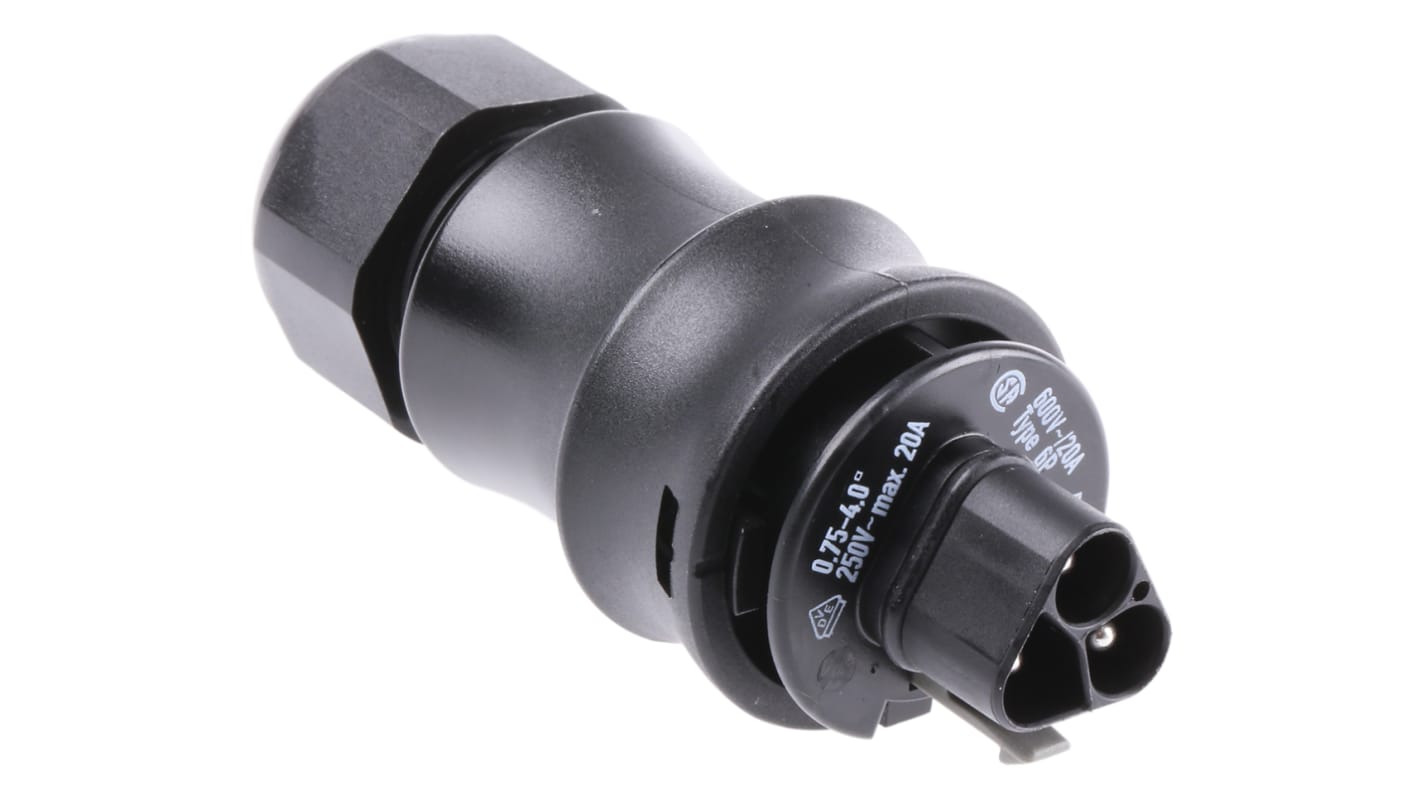

Wieland RST20i3 Series Cable Circular Connector Male Screw, 3-Pole, 20A, IP68
- RS Stock No.:
- 513-1957
- Distrelec Article No.:
- 144-75-033
- Mfr. Part No.:
- 96.032.4153.1
- Brand:
- Wieland
Bulk discount available
Subtotal (1 unit)*
£22.02
(exc. VAT)
£26.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 558 unit(s) shipping from 27 April 2026
- Plus 35 unit(s) shipping from 27 April 2026
- Plus 100 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £22.02 |
| 10 - 24 | £21.09 |
| 25 - 49 | £20.24 |
| 50 + | £19.34 |
*price indicative
- RS Stock No.:
- 513-1957
- Distrelec Article No.:
- 144-75-033
- Mfr. Part No.:
- 96.032.4153.1
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Product Type | Lighting Connector | |
| Pole Format | 3 | |
| Series | RST20i3 | |
| Connector Gender | Male | |
| Colour | Black | |
| Termination Type | Screw | |
| Sub Type | Circular Connector | |
| Mount Type | Cable | |
| Voltage | 250V | |
| Lighting Connector Current | 20A | |
| IP Rating | IP68 | |
| Wire Size | 0.75, 6mm² | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Diameter | 34.7mm | |
| Strain Relief | Yes | |
| Contact Plating | Silver | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Product Type Lighting Connector | ||
Pole Format 3 | ||
Series RST20i3 | ||
Connector Gender Male | ||
Colour Black | ||
Termination Type Screw | ||
Sub Type Circular Connector | ||
Mount Type Cable | ||
Voltage 250V | ||
Lighting Connector Current 20A | ||
IP Rating IP68 | ||
Wire Size 0.75, 6mm² | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Diameter 34.7mm | ||
Strain Relief Yes | ||
Contact Plating Silver | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- DE
Wieland RST Lighting Connector
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
• Connectors are cable mount with 1 connection for each pole
• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
• Connectors lock together and are self-locking
Applications and Uses:
• Electrical installations
• General network applications
• Switching applications
• Multiphase systems
Gesis RST Connector Range
Standards
IP 66/IP 68
