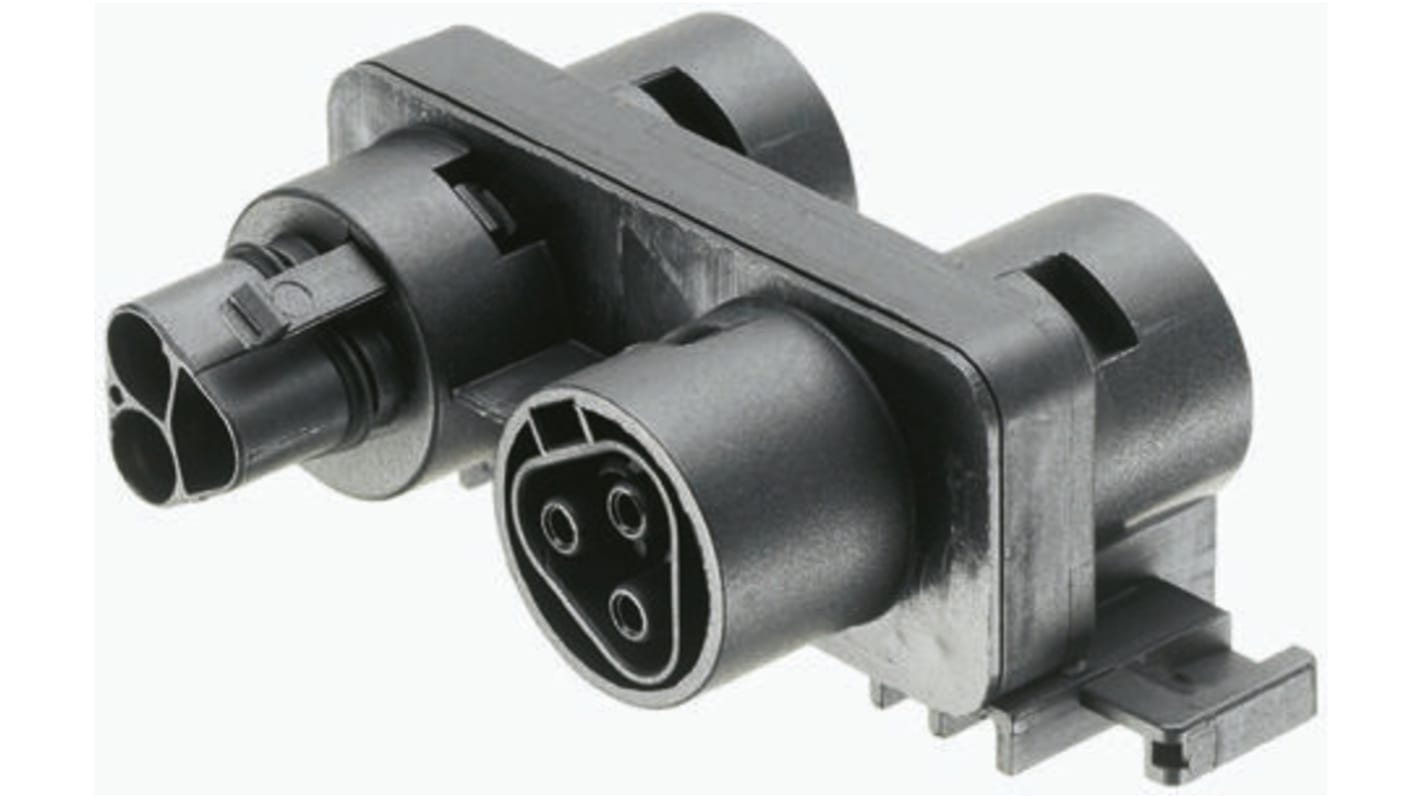

Wieland RST20i3 Series Distribution Block, 3-Pole, Male to Female, Panel Mount, 20A, IP68
- RS Stock No.:
- 513-1979
- Mfr. Part No.:
- 96.030.0253.1
- Brand:
- Wieland
Subtotal (1 unit)*
£15.26
(exc. VAT)
£18.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 114 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 31 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £15.26 |
*price indicative
- RS Stock No.:
- 513-1979
- Mfr. Part No.:
- 96.030.0253.1
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wieland | |
Pole Format | 3 | |
Series | RST20i3 | |
Gender | Male to Female | |
Plug/Socket | Plug, Socket | |
Colour | Black | |
Type | Distribution Block | |
Mounting Type | Panel Mount | |
Current Rating | 20A | |
Voltage Rating | 250 V | |
IP Rating | IP68 | |
Contact Material | CuZn | |
Contact Plating | Silver | |
Diameter | 34.7mm | |
Select all | ||
---|---|---|
Brand Wieland | ||
Pole Format 3 | ||
Series RST20i3 | ||
Gender Male to Female | ||
Plug/Socket Plug, Socket | ||
Colour Black | ||
Type Distribution Block | ||
Mounting Type Panel Mount | ||
Current Rating 20A | ||
Voltage Rating 250 V | ||
IP Rating IP68 | ||
Contact Material CuZn | ||
Contact Plating Silver | ||
Diameter 34.7mm | ||
- COO (Country of Origin):
- DE
Wieland RST Lighting Connector
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
Combined distribution blocks for circular connectors are H shaped with 3 poles and turned contacts, 1 input, 3 outputs
Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
Connectors lock together and are self-locking
Combined distribution blocks for circular connectors are H shaped with 3 poles and turned contacts, 1 input, 3 outputs
Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
Connectors lock together and are self-locking
Applications and Uses:
Electrical installations
General network applications
Switching applications
Multiphase systems
General network applications
Switching applications
Multiphase systems
RST20i3 Lighting Connector
• Distribution block
• Rated current of 20A and rated voltage of 250V
• Three pole, turned contacts
• Without fastening option and mounting lugs
• Black coding
• IP66/68 degree of protection
• Dimensions: length 55.5 mm, width 69.6 mm, height 31.3 mm
• Rated current of 20A and rated voltage of 250V
• Three pole, turned contacts
• Without fastening option and mounting lugs
• Black coding
• IP66/68 degree of protection
• Dimensions: length 55.5 mm, width 69.6 mm, height 31.3 mm
