WAGO 770 Series Snap-in Plug Male Cage Clamp, 3-Pole, 3-Way, IP20
- RS Stock No.:
- 279-3753
- Mfr. Part No.:
- 770-2313
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£197.96
(exc. VAT)
£237.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £197.96 | £1.98 |
*price indicative
- RS Stock No.:
- 279-3753
- Mfr. Part No.:
- 770-2313
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Lighting Connector | |
| Pole Format | 3 | |
| Series | 770 | |
| Pitch | 10mm | |
| Number of Ways | 3 | |
| Connector Gender | Male | |
| Colour | Red | |
| Termination Type | Cage Clamp | |
| Sub Type | Plug | |
| Mount Type | Snap-in | |
| Voltage | 600V | |
| IP Rating | IP20 | |
| Wire Size | 12, 20AWG | |
| Standards/Approvals | DNV GL. Lloyd's Register, IEC 61984, IEC/EN 60664-1, RoHS, UL 1977 | |
| Number of Rows | 1 | |
| Strain Relief | Yes | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Lighting Connector | ||
Pole Format 3 | ||
Series 770 | ||
Pitch 10mm | ||
Number of Ways 3 | ||
Connector Gender Male | ||
Colour Red | ||
Termination Type Cage Clamp | ||
Sub Type Plug | ||
Mount Type Snap-in | ||
Voltage 600V | ||
IP Rating IP20 | ||
Wire Size 12, 20AWG | ||
Standards/Approvals DNV GL. Lloyd's Register, IEC 61984, IEC/EN 60664-1, RoHS, UL 1977 | ||
Number of Rows 1 | ||
Strain Relief Yes | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- DE

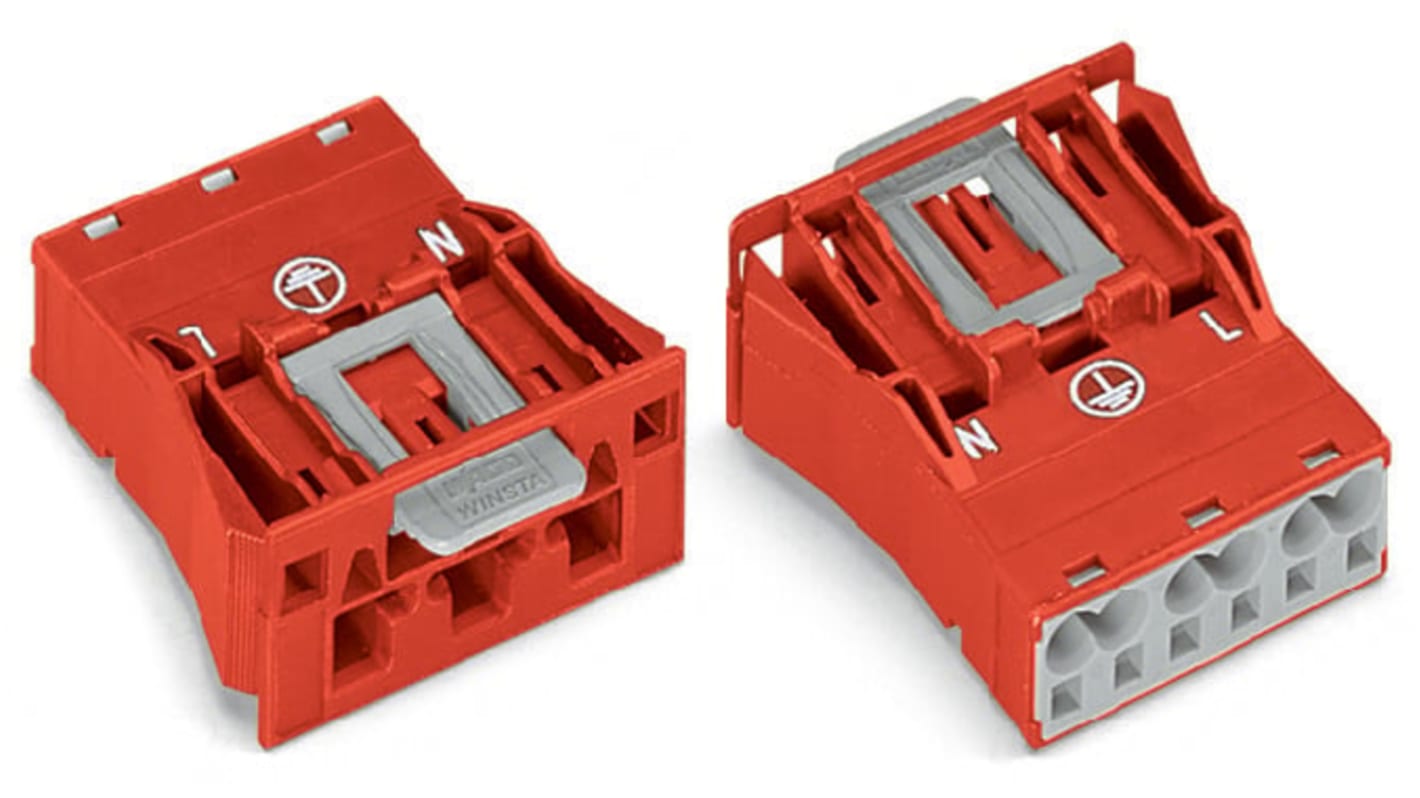

The WAGO Snap-in plug having 3-pole and Coding P. It has wire gauge 4,00 mm² and red color. For power and signal transmission the male connector/plug with locking latch. The pluggable installation connectors with spring pressure connection technology function completely without screw connections. They allow flexible, error-free installation in a large number of applications.
Pluggable installation connectors with protection against mismating
For automation controllers
For UPS applications
Ready to install and use immediately
