SICK TIM5XX Series Sensor LiDAR Sensor, 2 m Max Range
- RS Stock No.:
- 285-4340
- Mfr. Part No.:
- TIM510-9950000S01 / 1062210
- Brand:
- SICK
Subtotal (1 unit)*
£1,152.29
(exc. VAT)
£1,382.75
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,152.29 |
*price indicative
- RS Stock No.:
- 285-4340
- Mfr. Part No.:
- TIM510-9950000S01 / 1062210
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Sensor | |
| Series | TIM5XX | |
| Component Type | LiDAR Sensor | |
| Minimum Scanning Distance | 50mm | |
| Maximum Scanning Distance | 2m | |
| Safety Type | Class Iii (Iec 61140: 2016-1) | |
| Standards/Approvals | IEC 60825-1:2014, IEC 60529:1989+AMD1:1999+AMD2:2013, IEC 61140:2016-1, EN 60825-1:2014 | |
| Maximum Response Time | 134ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Height | 79mm | |
| Length | 60mm | |
| Width | 60mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Sensor | ||
Series TIM5XX | ||
Component Type LiDAR Sensor | ||
Minimum Scanning Distance 50mm | ||
Maximum Scanning Distance 2m | ||
Safety Type Class Iii (Iec 61140: 2016-1) | ||
Standards/Approvals IEC 60825-1:2014, IEC 60529:1989+AMD1:1999+AMD2:2013, IEC 61140:2016-1, EN 60825-1:2014 | ||
Maximum Response Time 134ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Height 79mm | ||
Length 60mm | ||
Width 60mm | ||
- COO (Country of Origin):
- MY

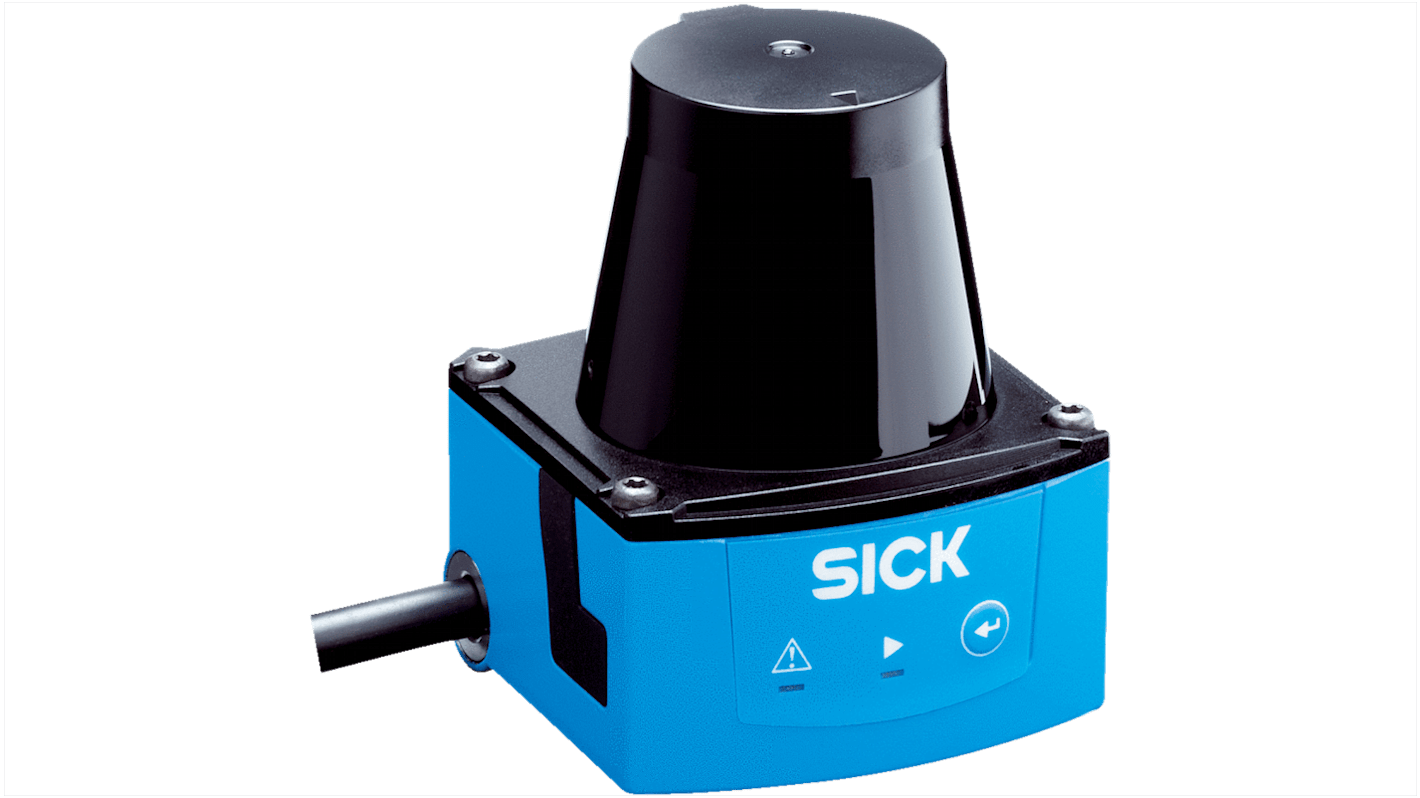

SICK TIM5XX Series Sensor, 2m Maximum Scanning Distance, 134ms Maximum Response Time - TIM510-9950000S01 / 1062210
This sensor is a LiDAR-based detection device designed for short-range scanning in industrial settings. It provides distance measurement and object detection capability suitable for integration into control systems. The unit is built to meet relevant electrical safety and laser product standards and connects via a standardised circular connector for straightforward installation.
Features and Benefits:
• 134 MS response time enabling prompt detection and reaction
• 2 m maximum scanning distance allowing short-range monitoring
• 50 mm minimum scanning distance supporting near-field detection
• Class III IEC 61140 safety classification ensuring reduced shock risk
• M12 connector enabling secure electrical and signal connection
• 2 m maximum scanning distance allowing short-range monitoring
• 50 mm minimum scanning distance supporting near-field detection
• Class III IEC 61140 safety classification ensuring reduced shock risk
• M12 connector enabling secure electrical and signal connection
Applications
• Suitable for obstacle detection in confined spaces
• Ideal for close-proximity level sensing tasks
• Used with machine guards for presence monitoring
• Can be used for robotic vicinity awareness
• Suitable for short-range perimeter protection systems
• Ideal for close-proximity level sensing tasks
• Used with machine guards for presence monitoring
• Can be used for robotic vicinity awareness
• Suitable for short-range perimeter protection systems
What electrical connector does it use?
It employs an M12 connector for power and signal interfacing.
What environmental sealing standard is referenced?
The device conforms to the IP rating family identified in IEC 60529.
What laser safety standard applies to its optical output?
Its optical emission is assessed against IEC 60825-1:2014.
What are the unit's physical dimensions?
The enclosure measures 60 x 79 x 60 mm.
Does it have hazardous area certification?
It does not carry hazardous area certification.
