SICK C2C Series deTec Light Curtain Sender, 30mm Resolution
- RS Stock No.:
- 284-9196
- Mfr. Part No.:
- C2C-SB12030A10000
- Brand:
- SICK
Subtotal (1 unit)*
£947.89
(exc. VAT)
£1,137.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £947.89 |
*price indicative
- RS Stock No.:
- 284-9196
- Mfr. Part No.:
- C2C-SB12030A10000
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Range | deTec | |
Series | C2C | |
Beam Resolution | 30mm | |
Component Type | Sender | |
Safety Type | 2 | |
SIL IEC 61508 | SIL 1 | |
PL EN ISO 13849-1 | PL c | |
Protective Height | 1200mm | |
Maximum Scanning Distance | 12.5m | |
Supply Voltage | 24 V dc | |
Application | Areas With Special Hygiene Requirements | |
Terminal Type | Flying Lead | |
Select all | ||
---|---|---|
Brand SICK | ||
Range deTec | ||
Series C2C | ||
Beam Resolution 30mm | ||
Component Type Sender | ||
Safety Type 2 | ||
SIL IEC 61508 SIL 1 | ||
PL EN ISO 13849-1 PL c | ||
Protective Height 1200mm | ||
Maximum Scanning Distance 12.5m | ||
Supply Voltage 24 V dc | ||
Application Areas With Special Hygiene Requirements | ||
Terminal Type Flying Lead | ||
- COO (Country of Origin):
- DE
Overview

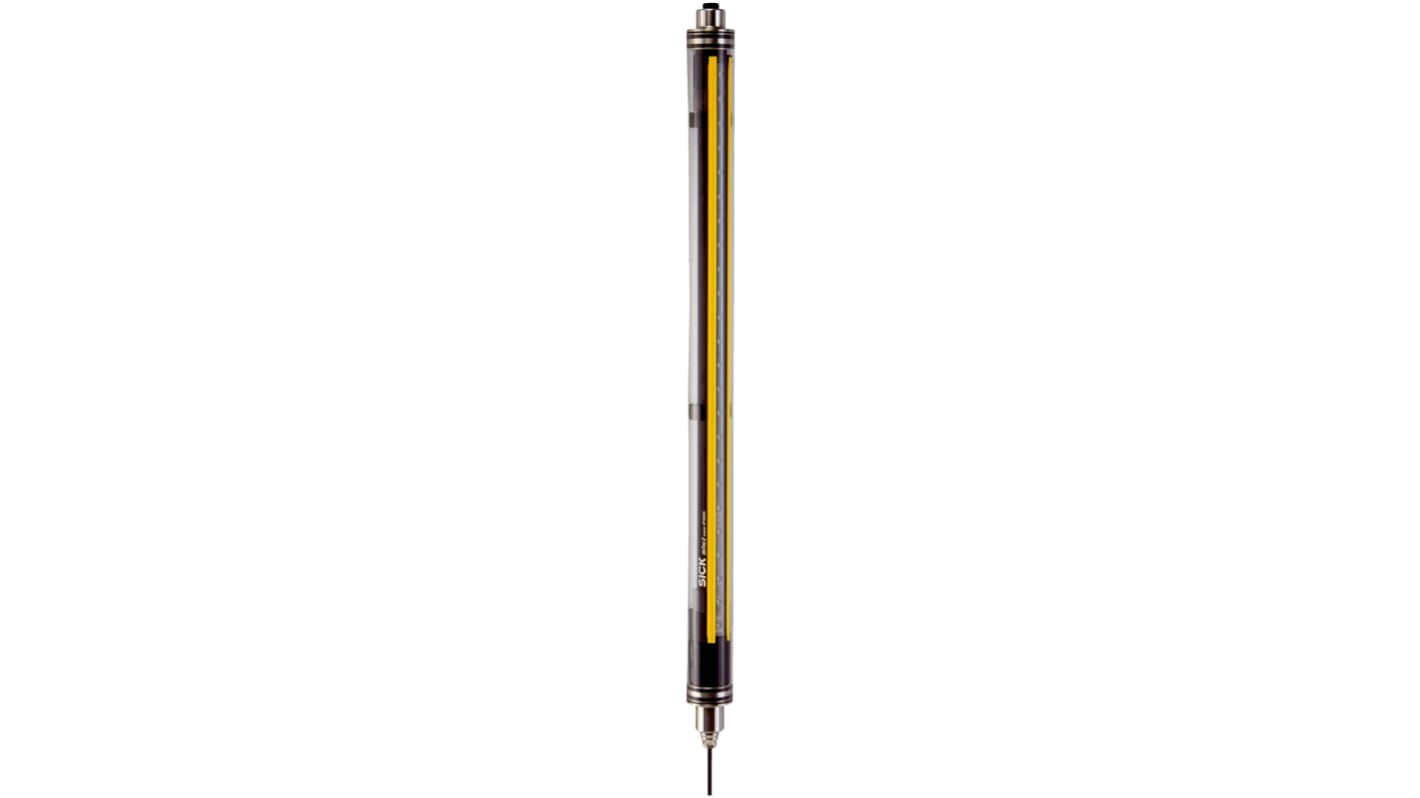

The deTec safety light curtain variant, designated as deTec2 Core IP69K, is intended for use in areas with special hygiene requirements. It offers a safety level of Type 2, PL c, SIL1, with a resolution of 30 mm and a scanning range of 12.5 meters. The protective field height is 1,200 mm. This variant includes a connecting cable of 15 meters with flying leads, featuring a 5-wire configuration. The sender comes housed in an IP69K protective enclosure and is supplied with the connecting cable of 15 meters. The enclosure rating encompasses IP65, IP66, IP67, and IP69K standards.
The intelligent deTec safety light curtains are ideal for the protection of hazardous areas, entrances, and hazardous points. Modern technologies such as NFC and IO-Link with their diverse functionality increase the level of automation and thereby productivity. The result: Simple on-site diagnostics, fast commissioning, and comprehensive data for automating downstream processes. Furthermore, the flexible connection concept in combination with the uniform housing design ensures low cabling, installation and configuration costs. The required functions are activated without software via the matching system plug. Thanks to different enclosure ratings as well as variants for explosion-hazardous areas, deTec also provides solutions for applications in harsh environments.
At a glance
NFC diagnosis and smartphone app
Diagnostics and automation via IO-Link
Object pattern recognition using Smart Box Detection
2-signal muting
Smart presence detection
Configuration of all functions without software
Reduced resolution: 1 or 2 beams
Different enclosure ratings as well as variants for use in explosion-hazardous areas
Diagnostics and automation via IO-Link
Object pattern recognition using Smart Box Detection
2-signal muting
Smart presence detection
Configuration of all functions without software
Reduced resolution: 1 or 2 beams
Different enclosure ratings as well as variants for use in explosion-hazardous areas
Your Benefit
Benefit from a productivity boost and short downtimes thanks to the innovative diagnostic options
Increase the level of automation and process transparency of your systems with IO-Link
The reliable object pattern recognition without external signals or devices ensures a cost effective and compact machine design
Muting offers productivity and safety in human-material differentiation
High availability: smart presence detection prevents unwanted switch-offs
Easy commissioning and configuration without the need for software saves you time and money
Increase the level of automation and process transparency of your systems with IO-Link
The reliable object pattern recognition without external signals or devices ensures a cost effective and compact machine design
Muting offers productivity and safety in human-material differentiation
High availability: smart presence detection prevents unwanted switch-offs
Easy commissioning and configuration without the need for software saves you time and money
Applications
Fields of applications
Automotive and parts suppliers
Machine tools industry
Storage and conveyor technology
Consumer goods industry
Packaging industry
Plastics and rubber industry
Food and beverage industry
Paint booths
Chemical applications
Dusty enviro
Automotive and parts suppliers
Machine tools industry
Storage and conveyor technology
Consumer goods industry
Packaging industry
Plastics and rubber industry
Food and beverage industry
Paint booths
Chemical applications
Dusty enviro
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
