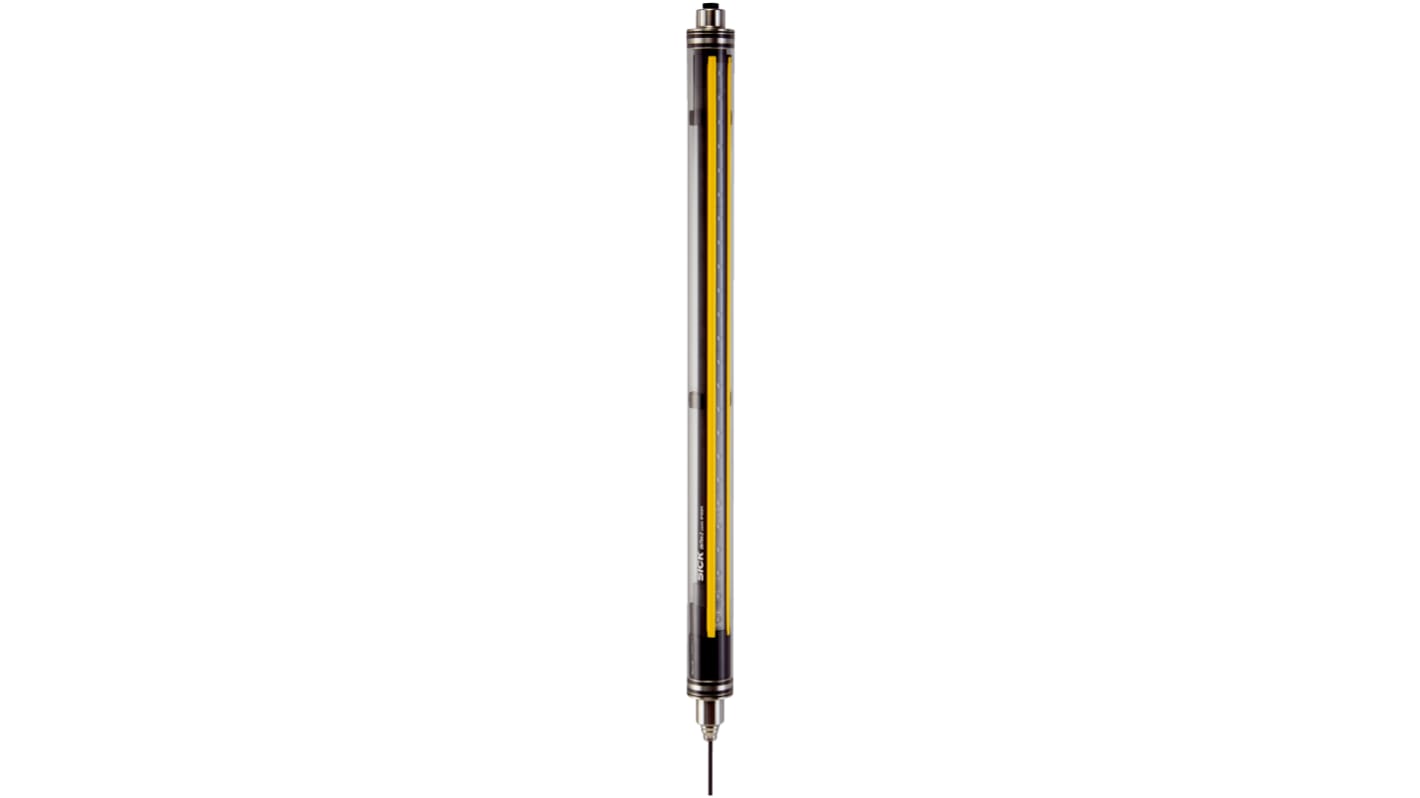

SICK C2C Series Light Curtain Receiver, 30 mm Resolution
- RS Stock No.:
- 284-9195
- Mfr. Part No.:
- C2C-EB12030A10000
- Brand:
- SICK
Subtotal (1 unit)*
£1,041.45
(exc. VAT)
£1,249.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,041.45 |
*price indicative
- RS Stock No.:
- 284-9195
- Mfr. Part No.:
- C2C-EB12030A10000
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Light Curtain | |
| Series | C2C | |
| Beam Resolution | 30mm | |
| Component Type | Receiver | |
| Safety Type | 2 | |
| Standards/Approvals | ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus | |
| Protective Height | 1.2m | |
| Maximum Supply Voltage | 24V dc | |
| Maximum Scanning Distance | 12.5m | |
| Width | 34mm | |
| Maximum Response Time | 12ms | |
| Terminal Type | Flying Lead | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Light Curtain | ||
Series C2C | ||
Beam Resolution 30mm | ||
Component Type Receiver | ||
Safety Type 2 | ||
Standards/Approvals ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus | ||
Protective Height 1.2m | ||
Maximum Supply Voltage 24V dc | ||
Maximum Scanning Distance 12.5m | ||
Width 34mm | ||
Maximum Response Time 12ms | ||
Terminal Type Flying Lead | ||
- COO (Country of Origin):
- DE
SICK C2C Series Light Curtain, 1200mm Protective Height, 30mm Beam Resolution - C2C-EB12030A10000
This light curtain is a receiver module designed for safeguarding access to hazardous machinery in hygiene-sensitive environments. It operates as part of an optical transmitter/receiver pair to monitor a protective field up to 12.5m and reacts within 12ms. The unit is supplied in an IP69K-rated housing with a 15m flying-lead connecting cable and provides two PNP OSSD outputs for integration into safety circuits.
Features and Benefits:
• 12.5m scanning distance provides extended protection reach
• 12ms response time enables fast machine stop reaction
• 30mm beam resolution detects small object intrusions
• 24V DC supply supports common safety control systems
• Flying-lead cable simplifies direct connection during installation
• 12ms response time enables fast machine stop reaction
• 30mm beam resolution detects small object intrusions
• 24V DC supply supports common safety control systems
• Flying-lead cable simplifies direct connection during installation
Applications
• Suitable for machine guard monitoring on production lines
• Used for access protection in food and beverage plants
• Ideal for integration with safety relays and controllers
• Can be used for perimeter protection in automated cells
• Suitable for retrofit where IP69K wash‑down is required
• Used for access protection in food and beverage plants
• Ideal for integration with safety relays and controllers
• Can be used for perimeter protection in automated cells
• Suitable for retrofit where IP69K wash‑down is required
What output configuration does the receiver provide?
It provides two PNP semiconductor OSSD outputs that are short-circuit protected and cross-circuit monitored.
Which environmental conditions can it withstand?
The enclosure meets IP65/IP66/IP67/IP69K ratings and operates between -30°C and +55°C.
How is synchronisation achieved between sender and receiver?
Optical synchronisation is used to prevent blind zones and allow side-by-side installation.
What mechanical materials are used in the housing and end caps?
The protective housing is PMMA and the end caps and cable glands are stainless steel 1.4404.
