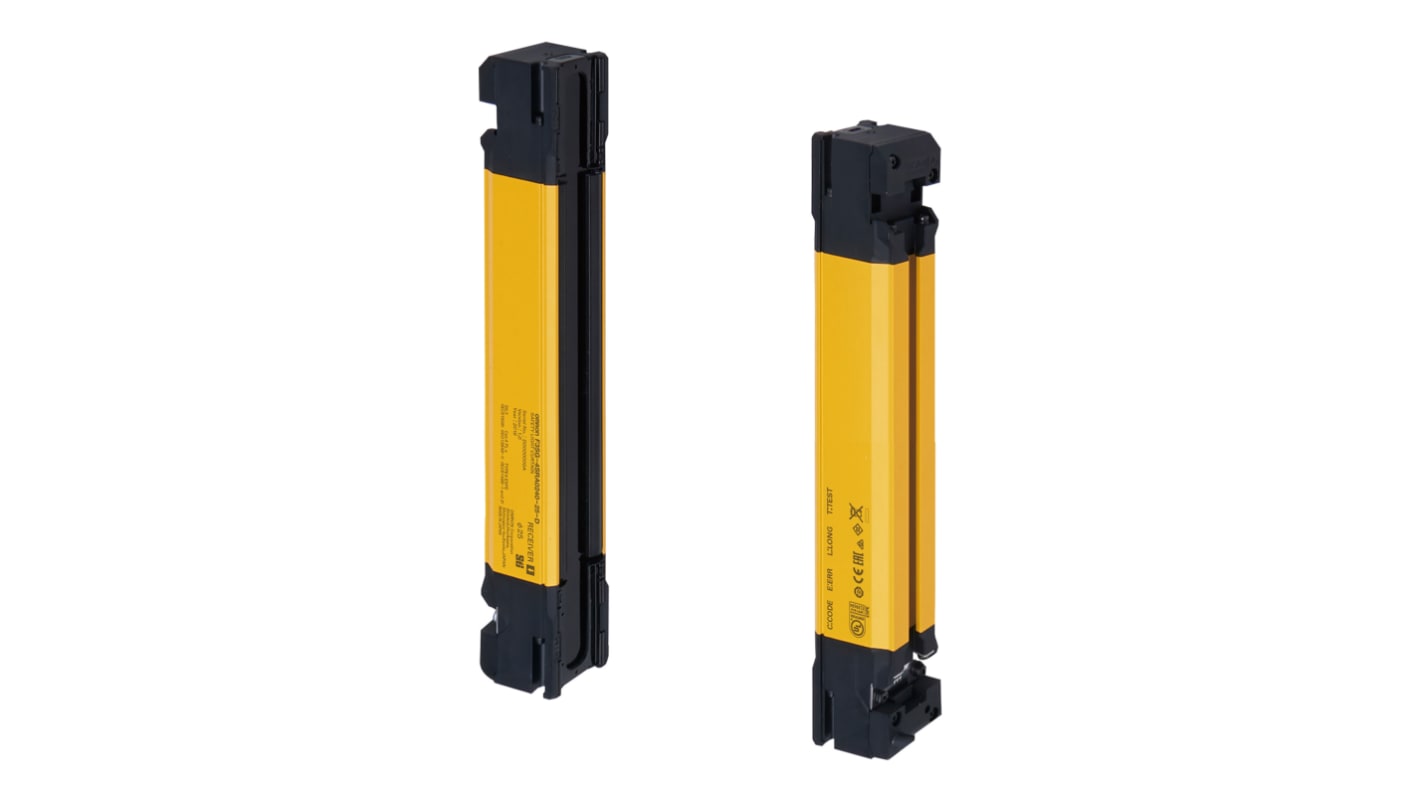

Omron F3SG Series Light Curtain Receiver, 31 Beam(s), 25 mm Resolution

RS Stock No.:: 214-7630
Mfr. Part No.:: F3SG-4SRA0320-14
Brand:: Omron

Omron F3SG Series Light Curtain Receiver, 31 Beam(s), 25 mm Resolution

Subtotal (1 unit)*

£1,332.19

(exc. VAT)

£1,598.63

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 02 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,332.19

*price indicative

RS Stock No.:: 214-7630
Mfr. Part No.:: F3SG-4SRA0320-14
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Light Curtain
	Series	F3SG
	Beam Resolution	25mm
	Component Type	Receiver
	Safety Type	Type 4
	Standards/Approvals	No
	Number of Beams	31
	Protective Height	320mm
	Maximum Supply Voltage	28.8V
	Maximum Protective Width	10m
	Minimum Scanning Distance	0.3m
	Maximum Scanning Distance	10m
	Width	32mm
	Maximum Response Time	8ms
	Height	320mm
	Length	320mm

	Select all
	Brand Omron
	Product Type Light Curtain
	Series F3SG
	Beam Resolution 25mm
	Component Type Receiver
	Safety Type Type 4
	Standards/Approvals No
	Number of Beams 31
	Protective Height 320mm
	Maximum Supply Voltage 28.8V
	Maximum Protective Width 10m
	Minimum Scanning Distance 0.3m
	Maximum Scanning Distance 10m
	Width 32mm
	Maximum Response Time 8ms
	Height 320mm
	Length 320mm

Instructionsheet - F3SG-4SRA0320-14

Omron F3SG Series Light Curtain, 320mm Protective Height, 25mm Beam Resolution - F3SG-4SRA0320-14

This light curtain provides non-contact presence detection for industrial safety applications, functioning as the receiving component in a safeguarded optical array. It is designed to protect access points by detecting interruptions within the sensing field and is suitable for integration into machine safety systems where rapid detection and reliable operation are required.

Features and Benefits:

• 31-beam array delivers fine object discrimination for personnel safety
• 25mm beam resolution enables detection of small intrusions
• 8ms maximum response time supports fast machine-stop interactions
• 0.3m minimum scanning distance allows close-proximity monitoring
• 10m maximum supply voltage rating supports varied control architectures

Applications

• Suitable for safeguarding machine access panels and doors
• Ideal for perimeter protection on conveyor lines
• Used for presence detection in automated workcells
• Can be used for light guarding across production openings

What protective height does it cover for a guarded opening?

It provides a protective height of 320mm, allowing focused coverage for specific access zones.

How wide a zone can be protected when multiple units are paired?

The system can support a maximum protective width of 10m when arranged appropriately for larger openings.

What supply constraints should be considered during integration?

The maximum supply voltage is 28.8V, so the control supply must conform to this limit for proper operation.

How does beam count affect detection capability at distance?

With 31 beams, the receiver maintains discrete sensing across the field, supporting reliable detection up to its maximum scanning distance of 10m.
