Banner SGS Series Light Curtain, Sender & Receiver, 3 Beam(s), 400mm Resolution

View all Light Curtains

Subtotal (1 unit)*

£1,876.21

(exc. VAT)

£2,251.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,876.21

*price indicative

RS Stock No.:
182-9530
Mfr. Part No.:
SGSSP4-400Q88
Brand:
Banner
Find similar products by selecting one or more attributes.
Select all

Brand

Banner

Series

SGS

Beam Resolution

400mm

Component Type

Emitter, Receiver

SIL IEC 61508

3

PL EN ISO 13849-1

e

Number of Beams

3

Protective Height

1200mm

Minimum Scanning Distance

0.5m

Maximum Scanning Distance

30m

Maximum Response Time

25 ms

Supply Voltage

24 V dc

Length

1.306m

Height

56.9mm

Terminal Type

8-Pin Quick Disconnect

Width

52mm

Application

Area

Features

Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately, Scan Codes

Dimensions

1306.35 x 52 x 56.9 mm

COO (Country of Origin):
HU

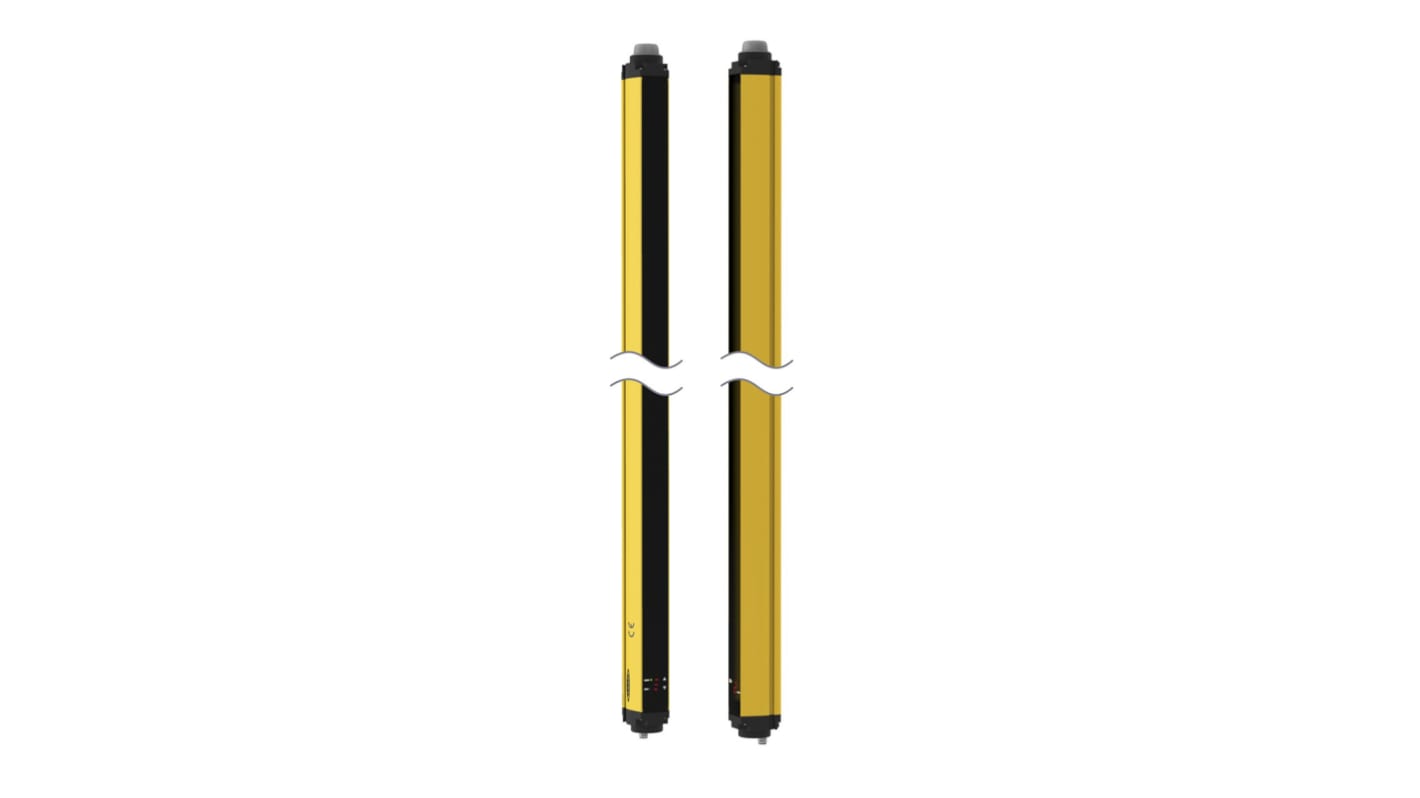

The Banner safety grid system light curtain sender and receiver has 4 beams and 400mm of resolution.

Auto/Manual Start/Restart
EDM
Mounting Hardware Ordered Separately
Scan Codes
