Banner SGS Series Light Curtain, Sender & Receiver, 2 Beam(s), 500mm Resolution
- RS Stock No.:
- 182-9527
- Mfr. Part No.:
- SGSSP2-500Q88
- Brand:
- Banner
Available to back order for despatch 05/07/2024
Added
Price Each
£1,410.46
(exc. VAT)
£1,692.55
(inc. VAT)
| Units | Per unit |
| 1 + | £1,410.46 |
- RS Stock No.:
- 182-9527
- Mfr. Part No.:
- SGSSP2-500Q88
- Brand:
- Banner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

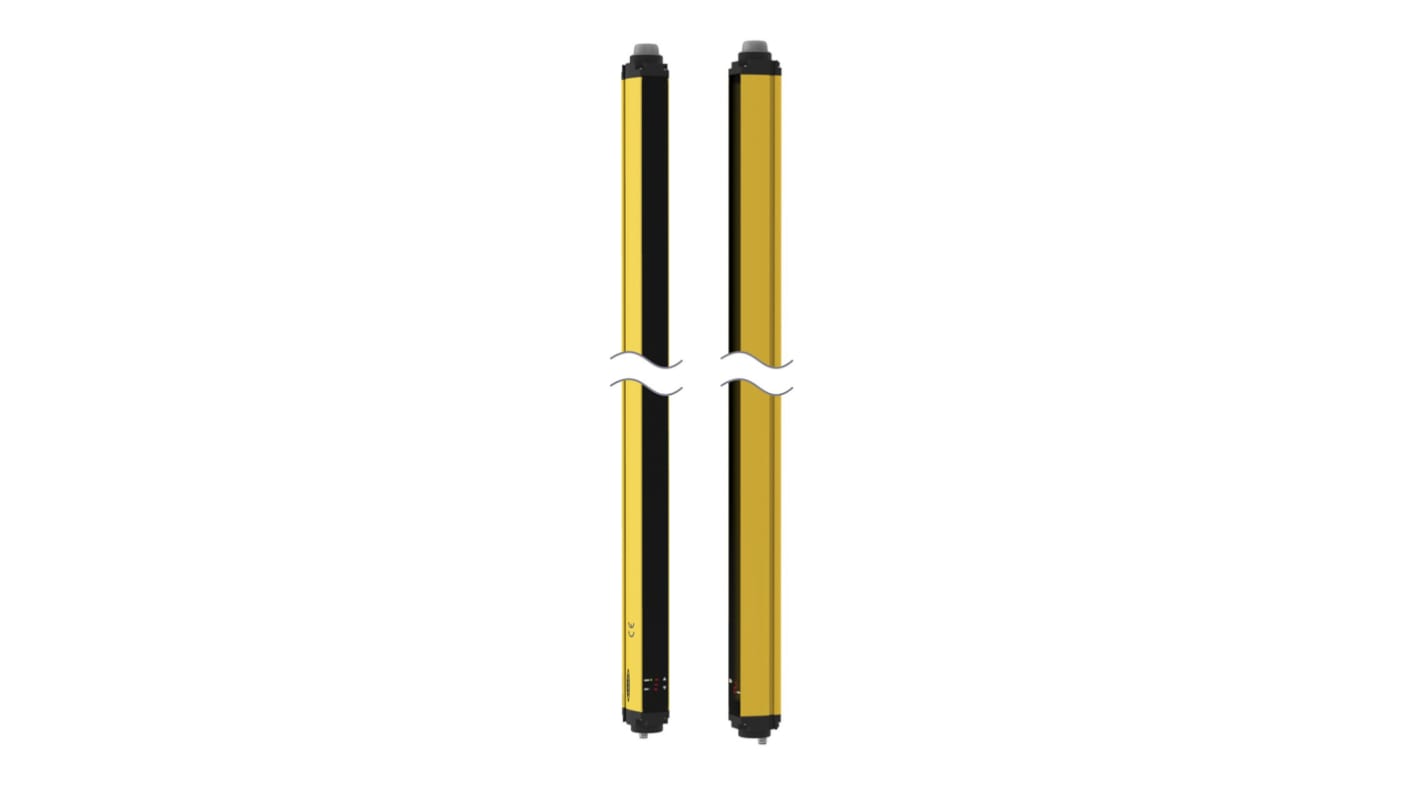

The Banner safety grid system light curtain sender and receiver has 2 beams and 500mm of resolution.
Auto/Manual Start/Restart
EDM
Mounting Hardware Ordered Separately
Scan Codes
EDM
Mounting Hardware Ordered Separately
Scan Codes
Specifications
Attribute | Value |
|---|---|
| Series | SGS |
| Beam Resolution | 500mm |
| Component Type | Emitter, Receiver |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | e |
| Number of Beams | 2 |
| Protective Height | 500mm |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 30m |
| Maximum Response Time | 19 ms |
| Supply Voltage | 24 V dc |
| Height | 56.9mm |
| Length | 606.35mm |
| Terminal Type | 8-Pin Quick Disconnect |
| Application | Area |
| Dimensions | 606.35 x 52 x 56.9 mm |
| Width | 52mm |
| Features | Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately, Scan Codes |
