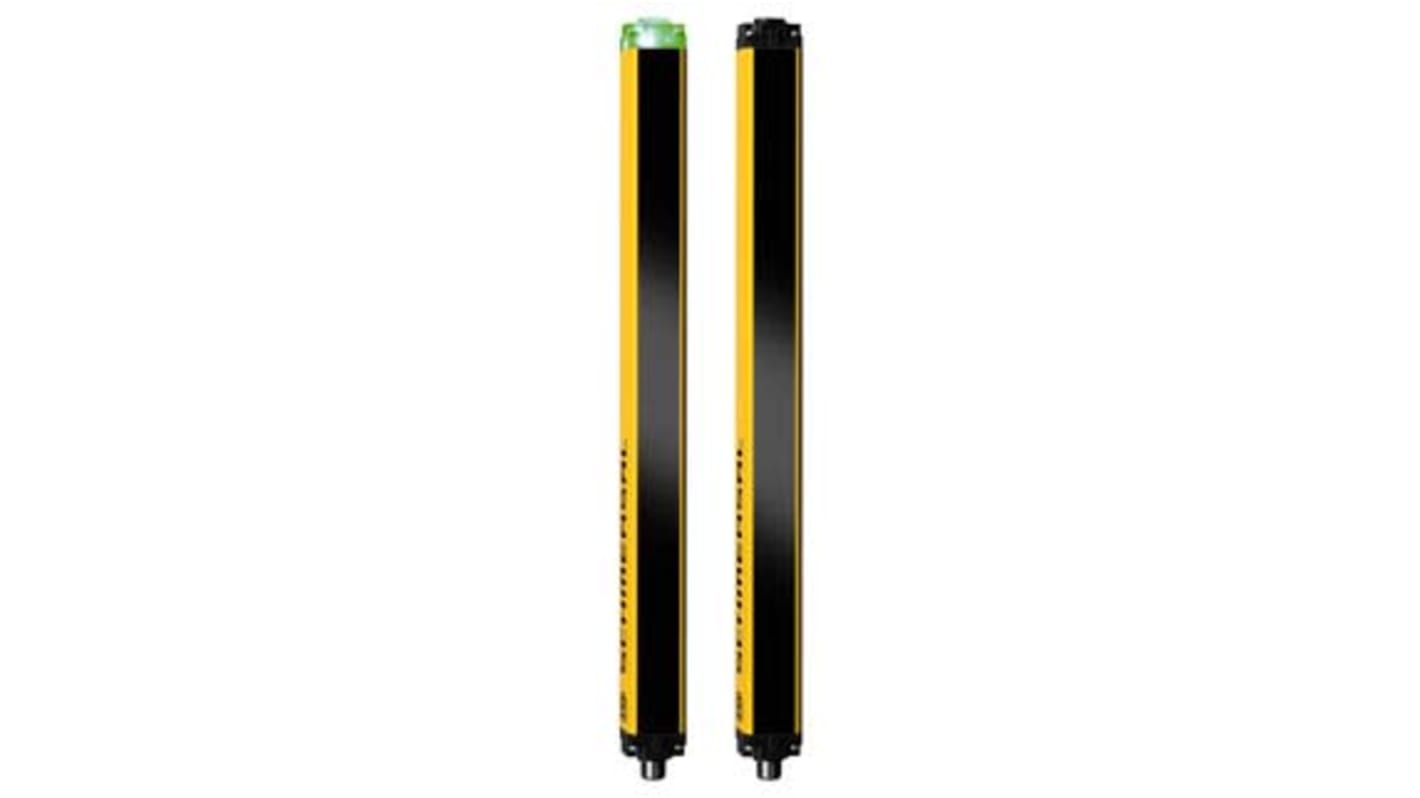

Schmersal SLC440COM Series 440COM Light Curtain Sender, 184 Beam(s), 14mm Resolution

View all Light Curtains

Subtotal (1 unit)*

£2,462.71

(exc. VAT)

£2,955.25

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2,462.71

*price indicative

RS Stock No.:
146-5840
Mfr. Part No.:
SLC440COM-E-1850-14
Brand:
Schmersal
Find similar products by selecting one or more attributes.
Select all

Brand

Schmersal

Range

440COM

Series

SLC440COM

Beam Resolution

14mm

Component Type

Sender

SIL IEC 61508

3

PL EN ISO 13849-1

e

Number of Beams

184

Protective Height

1850mm

Minimum Scanning Distance

300mm

Maximum Scanning Distance

6000mm

Maximum Response Time

28 ms

Height

1.891m

Supply Voltage

24 V dc

Length

33mm

Terminal Type

4-Pin M12 Connector

Dimensions

33 x 27.8 x 1891 mm

Width

27.8mm

Features

Safety Type 4 in Accordance with IEC 61496-1, User-Friendly Parameter Setting, No Tools Required, Reliable Safety Concept in Case of Interferences (EMC, Welding Sparks), Process Safety with Highest Availability, Integrated Set-Up Tool

Application

Elevators & Escalators, Food, Heavy Industry, Machine Tools, Packaging

COO (Country of Origin):
DE

Schmersal Light Curtain, Sender, 1850mm Protection Field Height - SLC440COM Series - SLC440COM-E-1850-14


Stop hazardous machinery when operators are nearby with this light curtain sender from Schmersal. Thanks to its maximum reaction time of 28ms, the component quickly shuts down your equipment when its light beams are interrupted to minimise the risk of injury. It has a 14mm beam resolution, so it can easily sense small body parts. The M12 connector makes it easy to attach to a standard cable.

Features & Benefits


• Low power consumption of 5W for energy efficiency
• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Integrated diagnostics for easy troubleshooting
• Wide operating temperature range of -10°C to +50°C for use in demanding environments

Applications


• Elevators
• Automated assembly lines
• Warehouses
• Manufacturing industry

What's the scanning range of this light curtain sender?


This light curtain sender has a wide scanning range between 300 and 6,000mm for versatile detection.

What are the dimensions of this light curtain sender?


This light curtain sender has compact dimensions of 33 (length) x 27.8 (width) x 1891mm (height) to minimise bulk in your setup.
