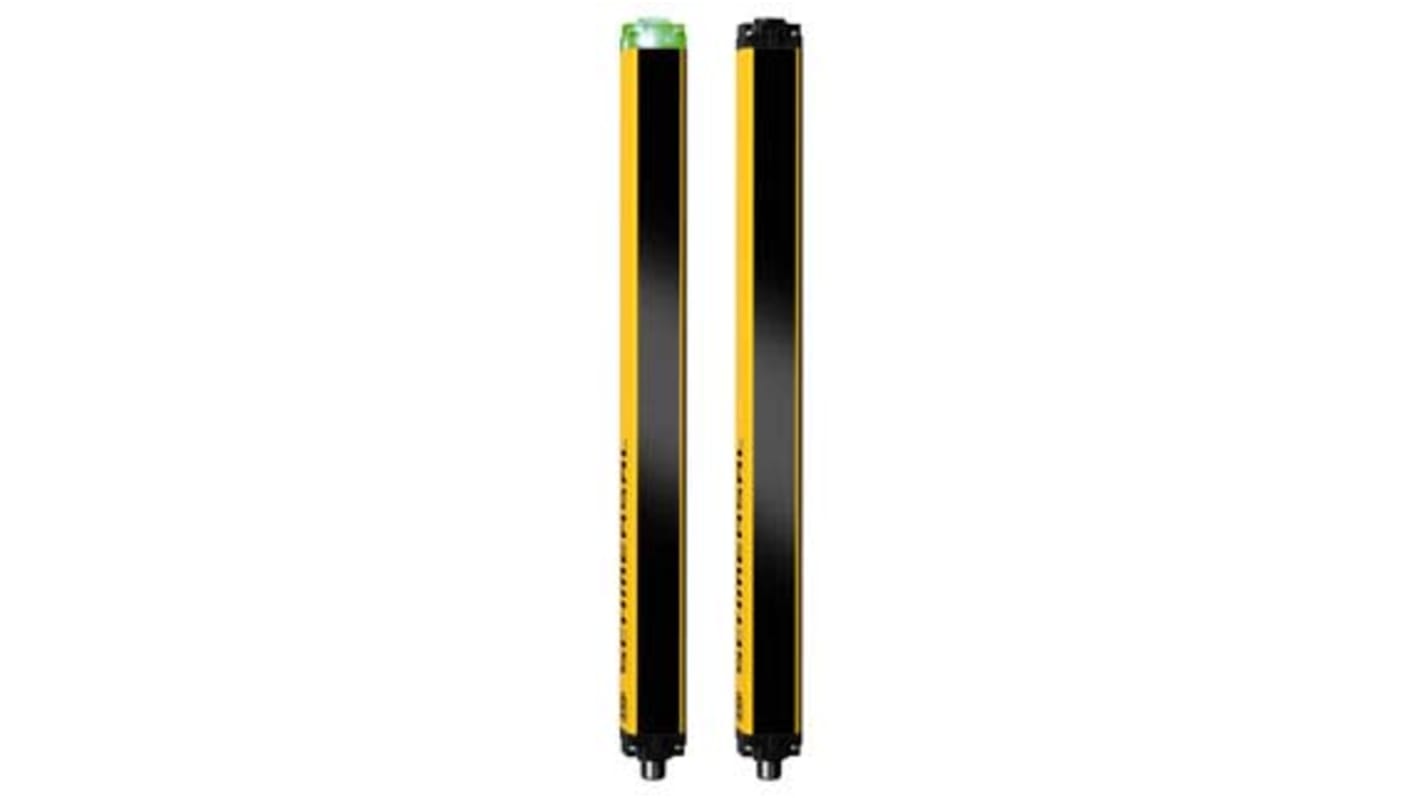

Schmersal SLC440COM Series Light Curtain Sender, 32 Beam(s), 14 mm Resolution
- RS Stock No.:
- 146-5821
- Mfr. Part No.:
- SLC440COM-E-0330-14
- Brand:
- Schmersal
Subtotal (1 unit)*
£744.30
(exc. VAT)
£893.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £744.30 |
*price indicative
- RS Stock No.:
- 146-5821
- Mfr. Part No.:
- SLC440COM-E-0330-14
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Product Type | Light Curtain | |
| Series | SLC440COM | |
| Beam Resolution | 14mm | |
| Component Type | Sender | |
| Safety Type | Type 4 | |
| Standards/Approvals | cULus, TUV, EAC | |
| Number of Beams | 32 | |
| Protective Height | 330mm | |
| Maximum Supply Voltage | 24V dc | |
| Maximum Protective Width | 7m | |
| Minimum Scanning Distance | 300mm | |
| Maximum Scanning Distance | 7m | |
| Length | 33mm | |
| Height | 371mm | |
| Maximum Response Time | 10ms | |
| Width | 27.8mm | |
| Terminal Type | 4-Pin Connector | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Product Type Light Curtain | ||
Series SLC440COM | ||
Beam Resolution 14mm | ||
Component Type Sender | ||
Safety Type Type 4 | ||
Standards/Approvals cULus, TUV, EAC | ||
Number of Beams 32 | ||
Protective Height 330mm | ||
Maximum Supply Voltage 24V dc | ||
Maximum Protective Width 7m | ||
Minimum Scanning Distance 300mm | ||
Maximum Scanning Distance 7m | ||
Length 33mm | ||
Height 371mm | ||
Maximum Response Time 10ms | ||
Width 27.8mm | ||
Terminal Type 4-Pin Connector | ||
Schmersal Light Curtain, 32 Beams, 300 to 7000mm Scanning Distance - SLC440COM Series - SLC440COM-E-0330-14
Protect personnel from equipment hazards using this light curtain sender from Schmersal. It works with a receiver to detect objects that may interfere with machine functions, helping to shut down your equipment to prevent injuries and machine damage. The wide scanning distance range of 300 to 7000mm means it can sense a wide variety of objects for versatility. The light curtain has a long cable length of 100m for a flexible connection in large work areas.
Features & Benefits
• Wide operating temperature range of -10°C to +50°C for use in demanding environments
• Fast response time of 10ms for a quick reaction to hazards
• LED indicator for simple monitoring of operating status
Applications
• Machine tools
• Elevators and escalators
• Packaging plants
How does a light curtain work?
A light curtain's transmitter sends pulses of infrared light to the receiver in a defined sequence. If an opaque object (such as a human body) blocks the pulses and interrupts the sequence, the light curtain sends a signal to the machine to shut it down.
