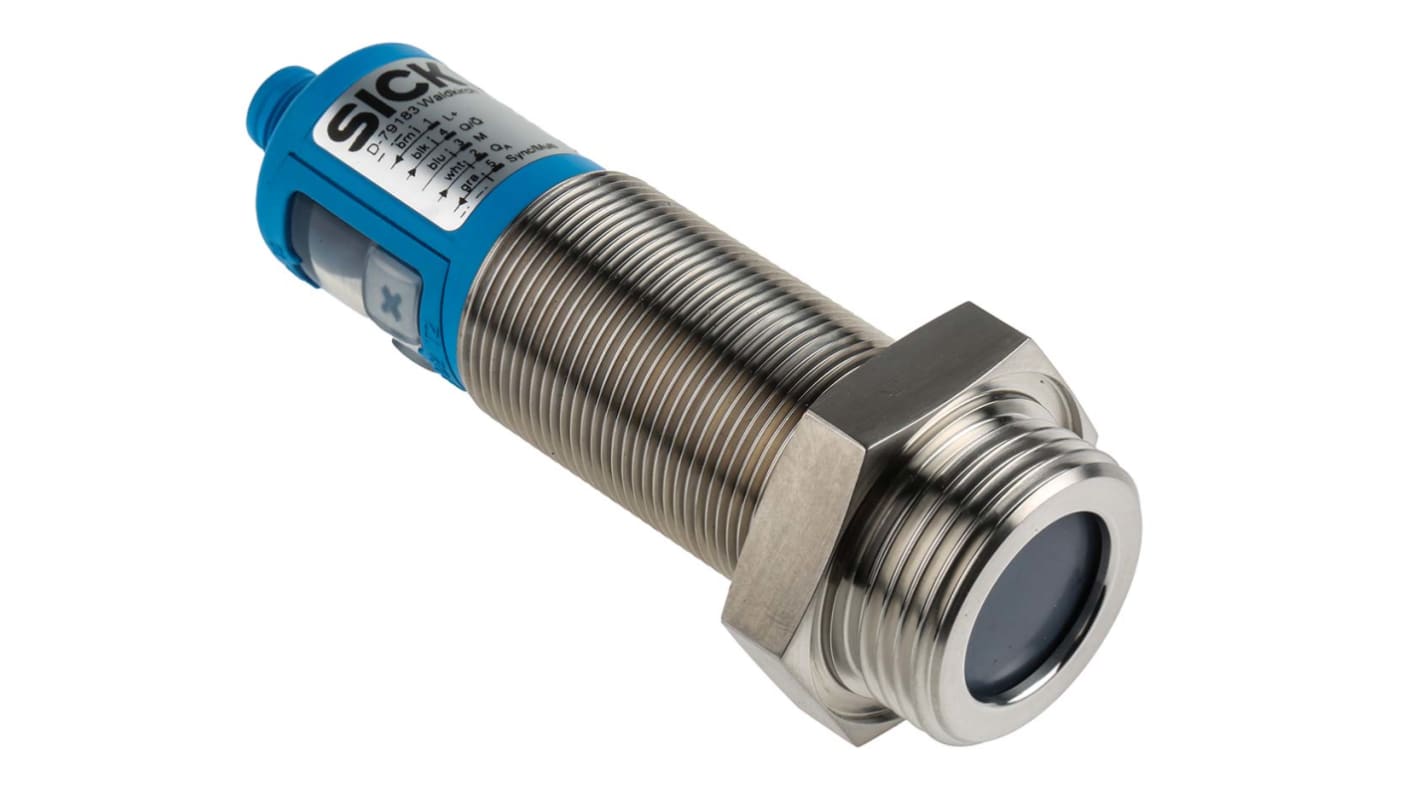

SICK UP56 Series Ultrasonic Level Sensor with display Ultrasonic Level Sensor, 0-10, 4 to 20 mA, PNP Output, G1 Thread,
- RS Stock No.:
- 175-5067
- Mfr. Part No.:
- UP56-213118
- Brand:
- SICK
Subtotal (1 unit)*
£692.71
(exc. VAT)
£831.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £692.71 |
*price indicative
- RS Stock No.:
- 175-5067
- Mfr. Part No.:
- UP56-213118
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Device Type | Ultrasonic Level Sensor with display | |
Mounting Type | G1 Thread | |
Switch Output | 0-10, 4 to 20 mA, PNP | |
Body Material | PBT, Stainless Steel 1.4571, TPU | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +70°C | |
Maximum DC Voltage | 30V | |
Maximum Current | 20 mA | |
Maximum Pressure | 6bar | |
Measurement Range | 1.3m | |
Series | UP56 | |
Standards Met | CE Certified | |
Select all | ||
---|---|---|
Brand SICK | ||
Device Type Ultrasonic Level Sensor with display | ||
Mounting Type G1 Thread | ||
Switch Output 0-10, 4 to 20 mA, PNP | ||
Body Material PBT, Stainless Steel 1.4571, TPU | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Maximum DC Voltage 30V | ||
Maximum Current 20 mA | ||
Maximum Pressure 6bar | ||
Measurement Range 1.3m | ||
Series UP56 | ||
Standards Met CE Certified | ||
- COO (Country of Origin):
- DE
The product family UP56 of ultrasonic level sensors is the ideal solution for demanding applications. The teflon-protected transducer handles overpres-sure up to 6 bar (87 psi) and is resistant against numerous difficult fluids. Wetted parts can be chosen either as stainless steel or PvDF, thus making the UP56 the perfect solution for measurement in aggressive, viscous, or abrasive liquids, or bulk solids.
Non-contact measurement up to 3.4 m operating distance / 8.0 m scanning distance limit
Pressure resistant up to 6 bar
Converter protected by PvDF cover for increased resistance
3-in-1: Continuous measurement, switching signal, and display
Analog output can be switched 4 mA ... 20 mA and 0 V ... 10 V
Process connector thread G 1 and G 2
Simple operation, also via Connect+
Pressure resistant up to 6 bar
Converter protected by PvDF cover for increased resistance
3-in-1: Continuous measurement, switching signal, and display
Analog output can be switched 4 mA ... 20 mA and 0 V ... 10 V
Process connector thread G 1 and G 2
Simple operation, also via Connect+
