- RS Stock No.:
- 124-0118
- Mfr. Part No.:
- LG10-1003-01
- Brand:
- Flowline
Available to back order for despatch 22/05/2024
Added
Price Each
£1,418.02
(exc. VAT)
£1,701.62
(inc. VAT)
Units | Per unit |
1 + | £1,418.02 |
- RS Stock No.:
- 124-0118
- Mfr. Part No.:
- LG10-1003-01
- Brand:
- Flowline
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

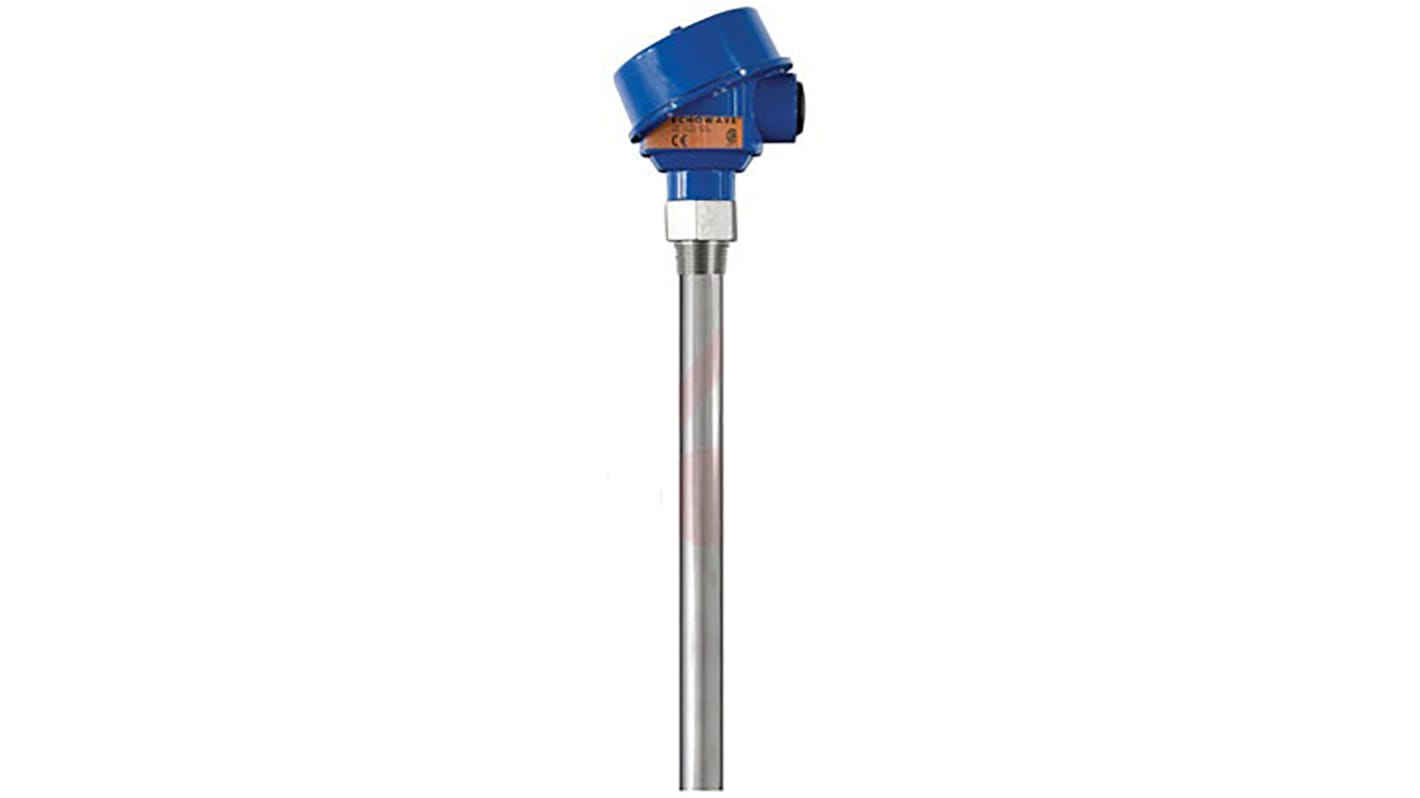

Flowline LG10/11 Guided Wave Radar
Echowave guided level radar transmitter are suitable for measuring ranges up to 5.5 m and are available with either a rod, coaxial or cable probe. These guided wave radar output a 4-20mA signal and are easy to set up using Flowlines free Webcal software.
Features and Benefits
Stainless steel probe
NEMA 4 rated enclosure
Easy to set up using free Webcal software
Built in fail safe fault monitoring
4 Dead band enables whole take to be used
Selectable signal outputs
Readings unaffected by vapour, vacuum, condensation, high pressure or temperatures
Recognises false echo return signals and rejects
Available with a rod, cable or coaxial probe type
NEMA 4 rated enclosure
Easy to set up using free Webcal software
Built in fail safe fault monitoring
4 Dead band enables whole take to be used
Selectable signal outputs
Readings unaffected by vapour, vacuum, condensation, high pressure or temperatures
Recognises false echo return signals and rejects
Available with a rod, cable or coaxial probe type
Applications
LG10 and LG11 ultra guided radars have been designed for use with various systems including bulk storage vessels, day tanks, process tanks machine tanks and waste sump applications.
Specifications
Attribute | Value |
---|---|
Device Type | Guided Radar Level Transmitter |
Mounting Type | Vertical |
Body Material | Aluminium |
Cable Length | 5.5m |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Maximum DC Voltage | 30V |
Maximum Current | 20 mA |
Maximum Pressure | 17bar |
Series | EchoWave |
Standards Met | cCSAus, CE, CRN, NEMA 4, NRTL |
Current Rating | <50 mA |
