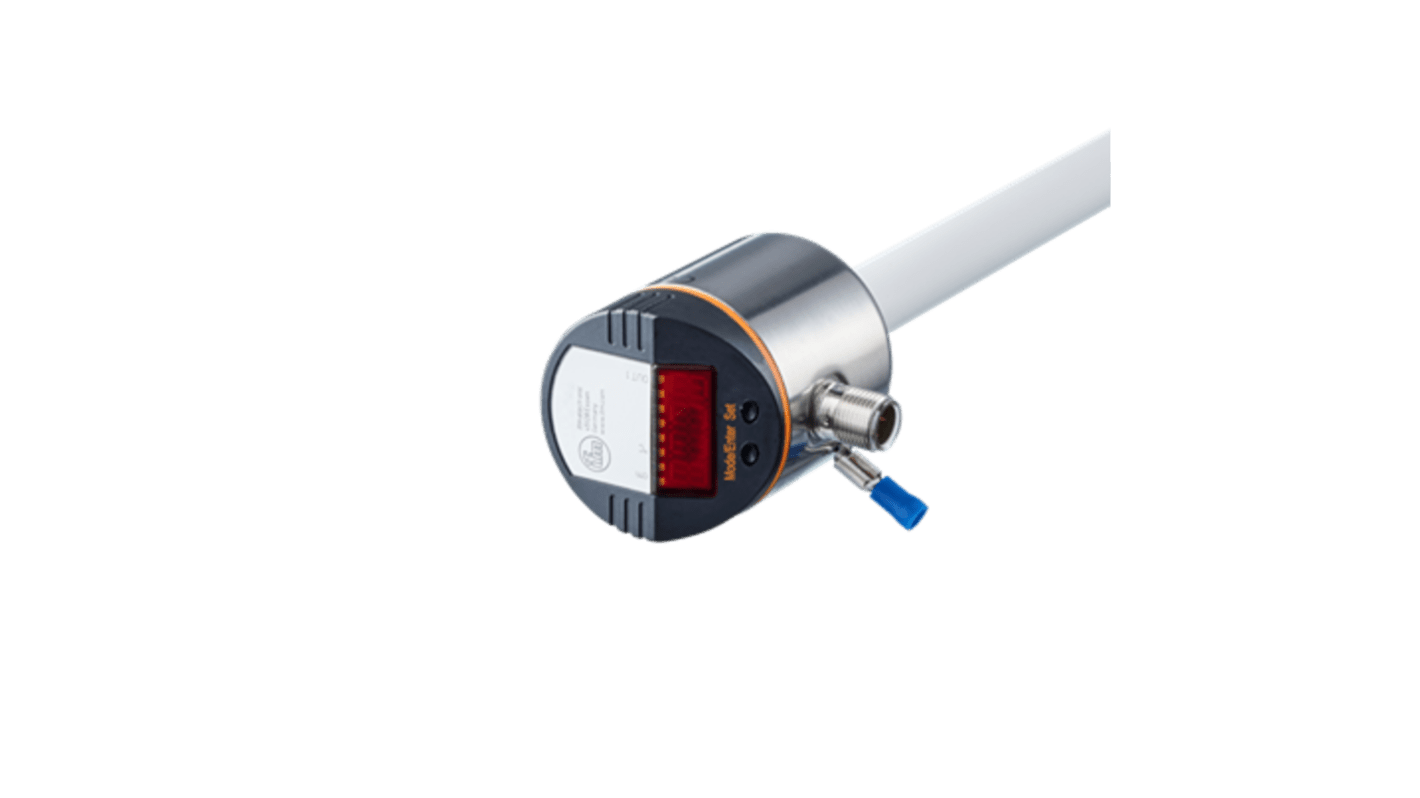

ifm electronic LT3 Series Level Sensor, Threaded, NO-Rated, Polypropylene, Nitrile Rubber (NBR), Polyamide,
- RS Stock No.:
- 596-649
- Mfr. Part No.:
- LT3923
- Brand:
- ifm electronic
Subtotal (1 unit)*
£494.28
(exc. VAT)
£593.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £494.28 |
*price indicative
- RS Stock No.:
- 596-649
- Mfr. Part No.:
- LT3923
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Level Sensor | |
| Mount Type | Threaded | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | 0°C | |
| Interface Type | IO-Link | |
| Maximum Operating Temperature | 60°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 200mA | |
| Maximum Pressure | 0.5bar | |
| Gasket Material | Polypropylene, Nitrile Rubber (NBR), Polyamide, Polycarbonate, Polybutylene Terephthalate, Thermoplastic Vulcanisate, Fluorelastomer | |
| Standards/Approvals | EMC: DIN EN 61000-6-2, DIN EN 60068-2-6, Shock: DIN EN 60068-2-27 (15 g,11 ms), -6-4 | |
| Series | LT3 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Level Sensor | ||
Mount Type Threaded | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature 0°C | ||
Interface Type IO-Link | ||
Maximum Operating Temperature 60°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 200mA | ||
Maximum Pressure 0.5bar | ||
Gasket Material Polypropylene, Nitrile Rubber (NBR), Polyamide, Polycarbonate, Polybutylene Terephthalate, Thermoplastic Vulcanisate, Fluorelastomer | ||
Standards/Approvals EMC: DIN EN 61000-6-2, DIN EN 60068-2-6, Shock: DIN EN 60068-2-27 (15 g,11 ms), -6-4 | ||
Series LT3 | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- RO
The ifm electronic level and temperature sensor is designed for precise monitoring and control in a variety of applications. Ideal for hydrous coolants, oils, and similar media, it features a robust construction and sophisticated sensing technology. With a temperature measurement range from -20 to 90 °C and an integrated IO-Link communication interface, this sensor ensures reliable data transmission and easy integration into industrial systems. Its compact size, combined with comprehensive protection features, makes it suitable for challenging conditions, while its user-friendly design allows for straightforward parameter adjustments and monitoring.
Compact and lightweight design for easy installation and use
Accurate measuring range with minimal error for reliable performance
Integrated IO-Link for advanced connectivity and monitoring capabilities
Robust stainless steel construction ensures durability in harsh environments
