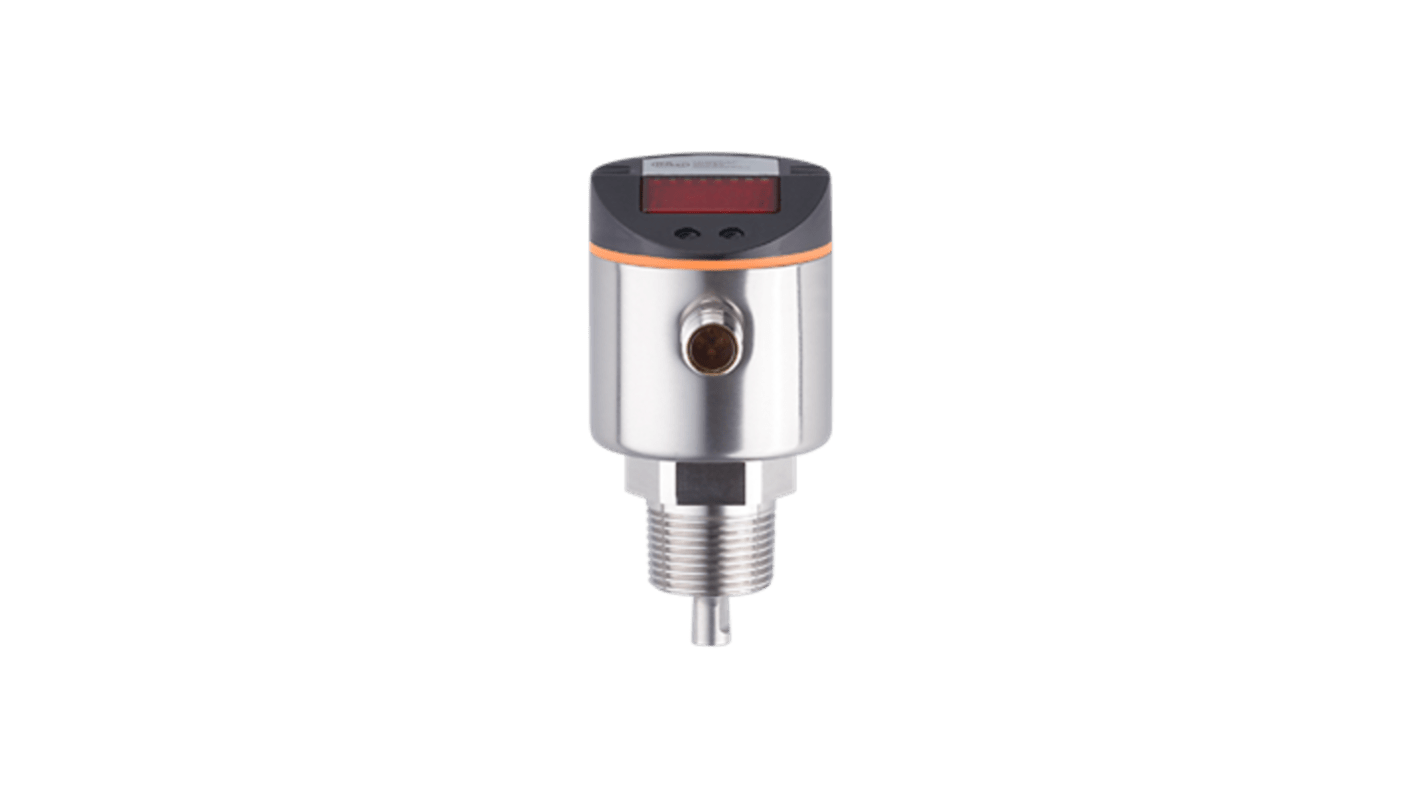

ifm electronic LR Series Continuous Level Sensor Level Sensor, Threaded, NO-Rated, Fluoroelastomer, Polybutylene
- RS Stock No.:
- 596-558
- Mfr. Part No.:
- LR8300
- Brand:
- ifm electronic
Subtotal (1 unit)*
£432.37
(exc. VAT)
£518.84
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £432.37 |
*price indicative
- RS Stock No.:
- 596-558
- Mfr. Part No.:
- LR8300
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Device Type | Continuous Level Sensor | |
| Product Type | Level Sensor | |
| Mount Type | Threaded | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Interface Type | IO-Link | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 200mA | |
| Maximum Pressure | 16bar | |
| Gasket Material | Fluoroelastomer, Polybutylene Terephthalate | |
| Standards/Approvals | -6-4, DIN EN 60068-2-6, EMC: DIN EN 61000-6-2, Shock: DIN EN 60068-2-27 (15 g,11 ms) | |
| Series | LR | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Device Type Continuous Level Sensor | ||
Product Type Level Sensor | ||
Mount Type Threaded | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Interface Type IO-Link | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 200mA | ||
Maximum Pressure 16bar | ||
Gasket Material Fluoroelastomer, Polybutylene Terephthalate | ||
Standards/Approvals -6-4, DIN EN 60068-2-6, EMC: DIN EN 61000-6-2, Shock: DIN EN 60068-2-27 (15 g,11 ms) | ||
Series LR | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- RO
The ifm electronic continuous level sensor is a cutting-edge guided wave radar solution designed for precise level measurement in various industrial applications. This sensor excels in challenging environments, featuring robust construction and a versatile probe length ranging from 100 to 1600 mm. With a process temperature capability of -25 to 80 °C, it guarantees accuracy even under extreme conditions. Ideal for use with liquids, it incorporates advanced technology to deliver reliable data, ensuring operational efficiency. The sensor also offers simple installation and integration, fortified with an assortment of advanced features that enhance its functionality while maintaining user-friendly operation.
Gold-plated contacts enhance durability and conductivity
Compatible with a broad spectrum of liquids, including water and hydrous media
Rated for pressures of up to 16 bar, suitable for various industrial processes
Integrated with IO-Link for streamlined communication and data transmission
