ams OSRAM2.4 V, 3.4 V RGB LED SMD, Multi CHIP LED LRTBR48G-P9Q7-1+R7S5-26+N5P-68
- RS Stock No.:
- 876-9299
- Mfr. Part No.:
- LRTBR48G-P9Q7-1+R7S5-26+N5P-68
- Brand:
- ams OSRAM
Subtotal (1 pack of 50 units)*
£5.25
(exc. VAT)
£6.30
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 500 left, ready to ship
- Final 23,300 unit(s) shipping from 28 October 2025
Units | Per unit | Per Pack* |
---|---|---|
50 + | £0.105 | £5.25 |
*price indicative
- RS Stock No.:
- 876-9299
- Mfr. Part No.:
- LRTBR48G-P9Q7-1+R7S5-26+N5P-68
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
LED Colours | RGB | |
Mounting Type | Surface Mount | |
Number of LEDs | 3 | |
Forward Voltage | 2.4 V, 3.4 V | |
Luminous Intensity | 140 → 315 mcd, 31.5 → 71 mcd, 63 → 140 mcd | |
Number of Pins | 4 | |
Viewing Angle | 120 ° | |
Lens Shape | Square | |
Dominant Wavelength | 476 / 538 / 627 nm | |
Series | Multi CHIP LED | |
Forward Current | 10mA | |
Dimensions | 1.13 x 1.13 x 0.75mm | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
LED Colours RGB | ||
Mounting Type Surface Mount | ||
Number of LEDs 3 | ||
Forward Voltage 2.4 V, 3.4 V | ||
Luminous Intensity 140 → 315 mcd, 31.5 → 71 mcd, 63 → 140 mcd | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Lens Shape Square | ||
Dominant Wavelength 476 / 538 / 627 nm | ||
Series Multi CHIP LED | ||
Forward Current 10mA | ||
Dimensions 1.13 x 1.13 x 0.75mm | ||
- COO (Country of Origin):
- TW

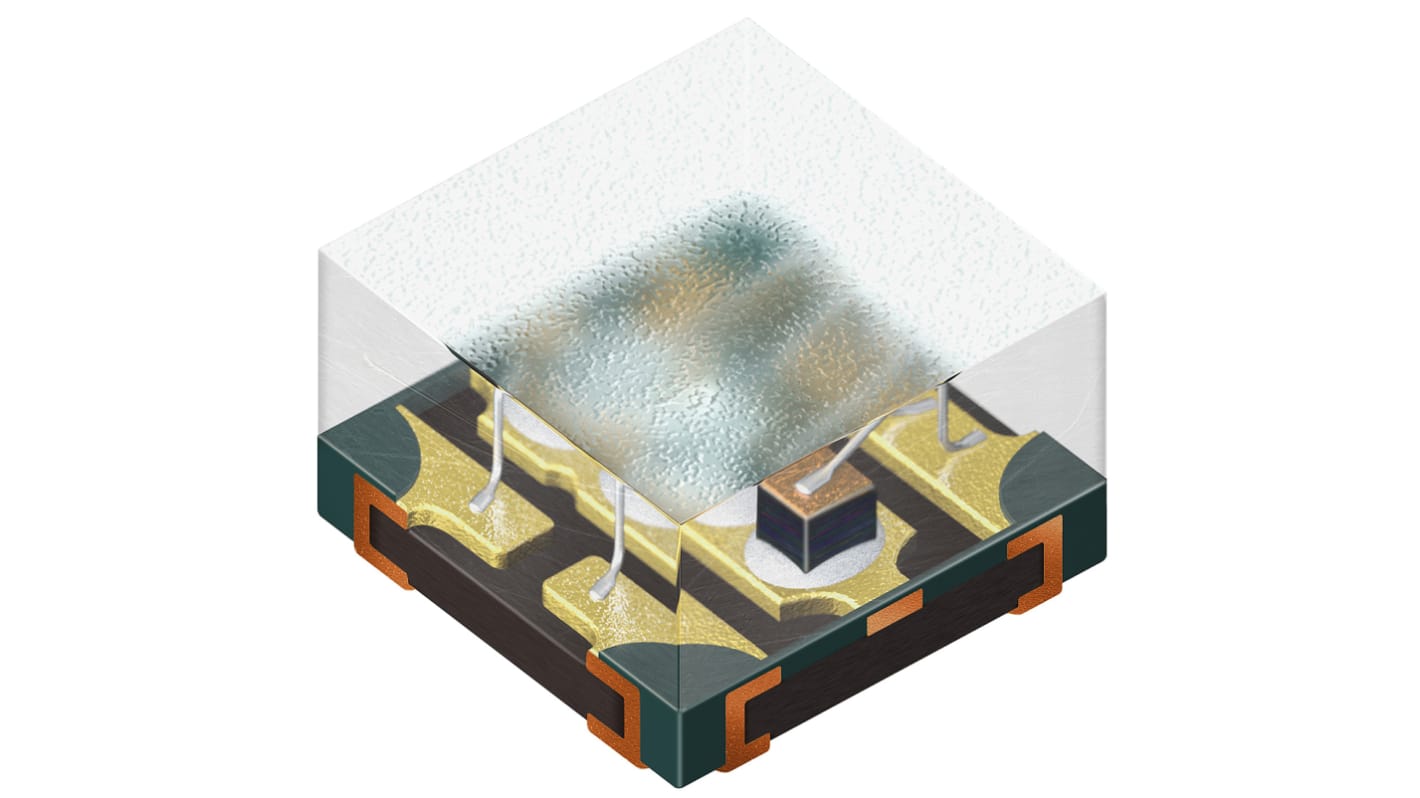

OSRAM Multi CHIPLED RGB Series LEDs
The Multi CHIPLED RGB LED from OSRAM Opto Semiconductors, features 3 dies (red, true green and blue) which can be controlled separately to produce various colours including white. These multi-chip packages have a black body which offer an enhanced contrast.Applications for the LTRB R8SF CHIPLED include: Pachinko machines, coupling into light guides, backlighting for LCDs, switches, keys, illuminated advertising and general lighting.
Features of the Multi CHIPLED LEDs:
RGB multi-chip LEDs
Operating temperature range: -40 to +85°C
Compact SMT package: 3.1 x 3.1 x 0.95 mm
RGB multi-chip LEDs
Operating temperature range: -40 to +85°C
Compact SMT package: 3.1 x 3.1 x 0.95 mm
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
