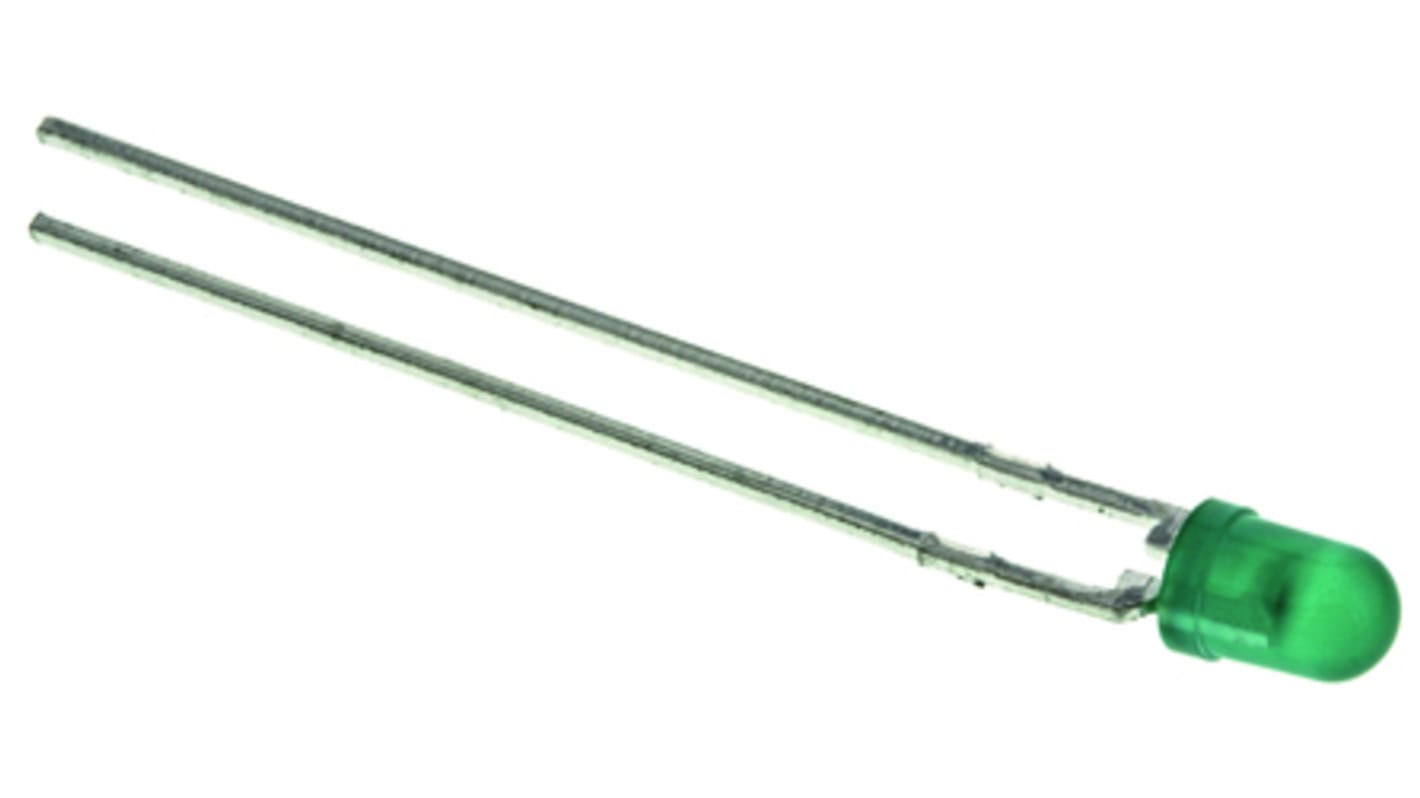

Kingbright 14 V Green LED 3 mm (T-1) Through Hole L-7104 L-7104GD-12V

View all LEDs

Subtotal (1 bag of 500 units)*

£130.50

(exc. VAT)

£156.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
500 +£0.261£130.50

*price indicative

RS Stock No.:
165-1589
Mfr. Part No.:
L-7104GD-12V
Brand:
Kingbright
Find similar products by selecting one or more attributes.
Select all

Brand

Kingbright

Product Type

LED

LED Colour

Green

Maximum Forward Current

11.5mA

Package Type

3 mm (T-1)

Mount Type

Through Hole

Packaging

Bag

Maximum Power Dissipation

120mW

Forward Voltage

14V

Number of Pins

2

Viewing Angle

40 °

Lens Dimensions

4.6 x 2.9 mm

LED Luminosity

15 mcd

Lens Shape

Round

Dominant Wavelength

568 nm

Standards/Approvals

RoHS

Lens Finish

Diffused

Lens Colour

Green

Series

L-7104

Automotive Standard

No

COO (Country of Origin):
CN

Kingbright Through Hole Resistor LED Series


The resistor LED lamps, from Kingbright, are available in 3mm and 5mm package options. The LEDs have an integral current limiting resistor. The resistor LEDs do not require an external current limiter with 12 volt supply. This allows the resistor LEDs to be a cost effective solution, saving valuable space and eliminating the additional cost for a resistor. There are a variety of colour options available in the resistor range, with a wide viewing angle of 60°.

Visible Light LEDs, Kingbright
