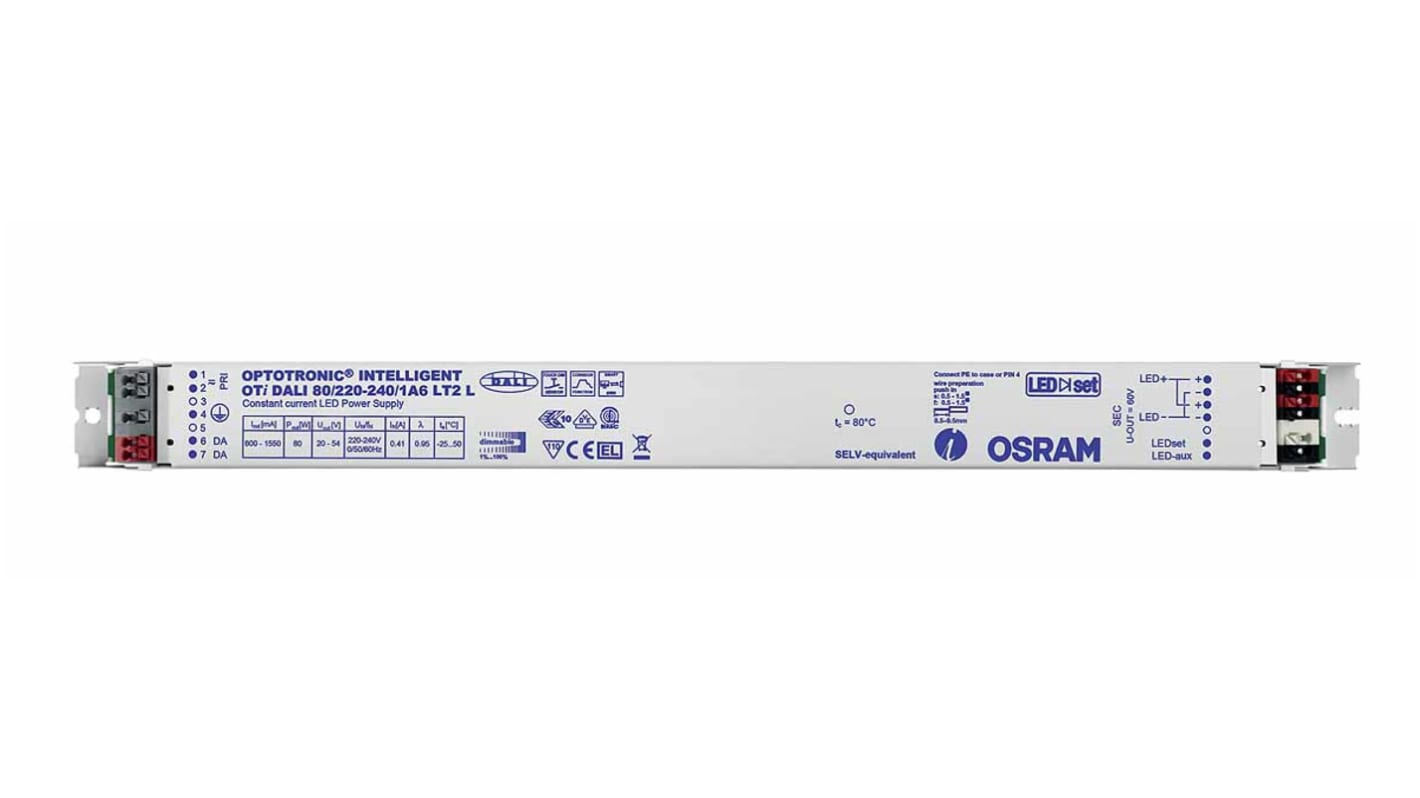

Osram IP20 1 Output LED Driver, 20V, 54 V, 80 W, 1.55A DALI LED Driver
- RS Stock No.:
- 893-0542
- Mfr. Part No.:
- OTI DALI 80/220-240/1A6 LT2L
- Brand:
- Osram
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£48.25
(exc. VAT)
£57.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 21 September 2026
- Plus 20 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.25 |
| 5 - 9 | £43.43 |
| 10 - 24 | £41.50 |
| 25 + | £40.04 |
*price indicative
- RS Stock No.:
- 893-0542
- Mfr. Part No.:
- OTI DALI 80/220-240/1A6 LT2L
- Brand:
- Osram
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 20, 54V | |
| Maximum Output Power | 80W | |
| Input Voltage | 198, 264, 176, 276V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | DALI | |
| Input Voltage Type | AC/DC | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Operating Modes | Constant Current | |
| Driver Current | 1.55A | |
| Standards/Approvals | CE, EL, EMC, EN55015, EN61000-3-2, EN61347-1, EN61347-2-13, EN61547, EN-62384, ENEC 10, VDE | |
| Number of Outputs | 1 | |
| Series | OPTOTRONIC Intelligent | |
| Configuration | Sealed | |
| Power Dissipation | 8.5W | |
| Primary Type | DC-DC, AC-DC | |
| Select all | ||
|---|---|---|
Brand Osram | ||
Product Type LED Driver | ||
Output Voltage 20, 54V | ||
Maximum Output Power 80W | ||
Input Voltage 198, 264, 176, 276V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation DALI | ||
Input Voltage Type AC/DC | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Operating Modes Constant Current | ||
Driver Current 1.55A | ||
Standards/Approvals CE, EL, EMC, EN55015, EN61000-3-2, EN61347-1, EN61347-2-13, EN61547, EN-62384, ENEC 10, VDE | ||
Number of Outputs 1 | ||
Series OPTOTRONIC Intelligent | ||
Configuration Sealed | ||
Power Dissipation 8.5W | ||
Primary Type DC-DC, AC-DC | ||
OPTOTRONIC Intelligent Dimmable DALI Drivers
The OPTOTRONIC Intelligent series from Osram, are a family of dimmable DALI LED drivers. They offer high efficiency, reliability and system protection due to thermal management and Smart Control.
These compact constant current LED drivers are designed for indoor applications such as corridors and restrooms. This is possible due to their three-level Corridor function. OPTOTRONIC Intelligent LED drivers can also be used with a Touch DIM application controlled by a pushbutton or sensor.
