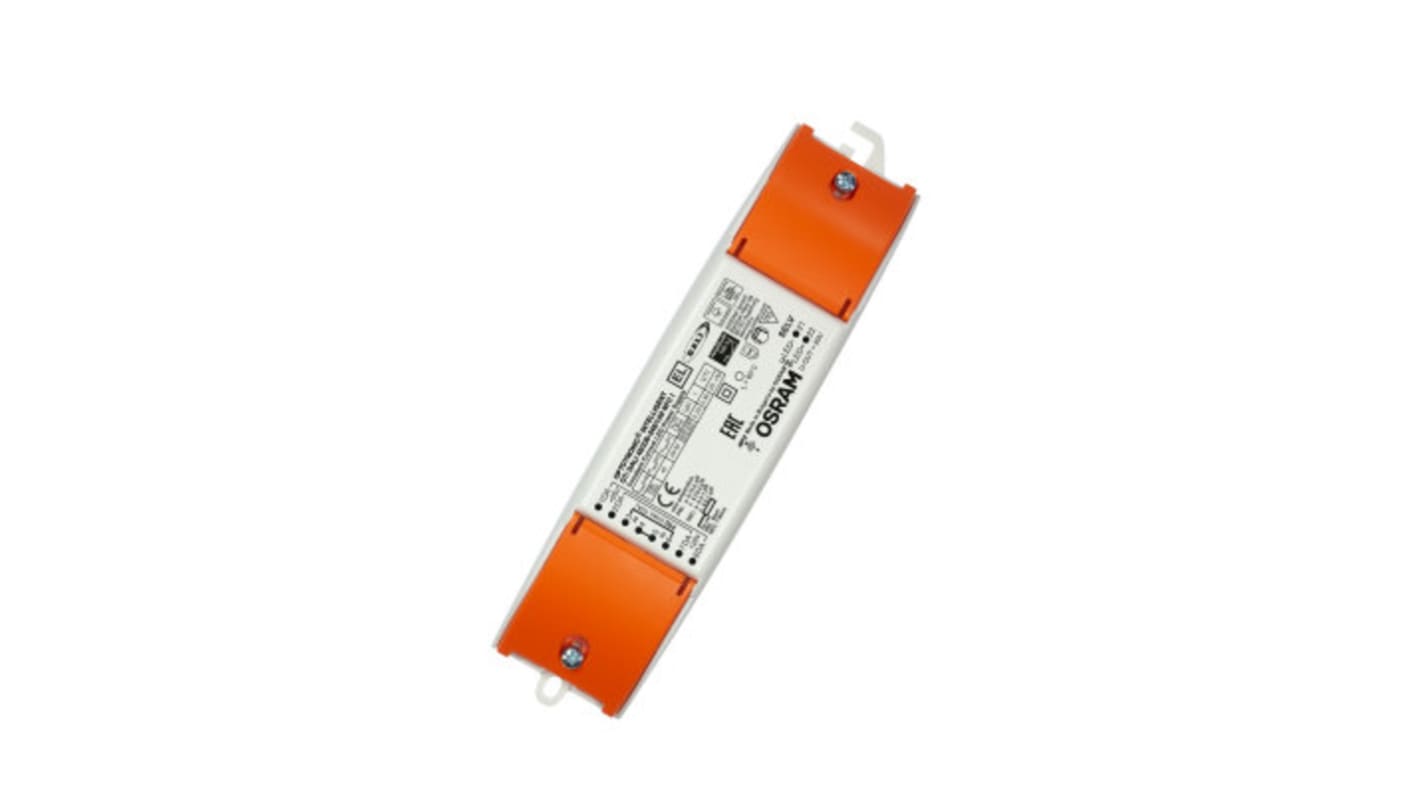

Osram LED Driver, 20V, 50 V Output, 40 W Output, 1050mA DALI
- RS Stock No.:
- 223-1609
- Distrelec Article No.:
- 302-38-161
- Mfr. Part No.:
- OTi-DALI-40/220...240/1A0-NFC-I
- Brand:
- Osram
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£28.71
(exc. VAT)
£34.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 66 unit(s) shipping from 01 June 2026
- Plus 6 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £28.71 |
| 10 - 24 | £27.55 |
| 25 - 49 | £26.46 |
| 50 - 99 | £25.41 |
| 100 + | £24.36 |
*price indicative
- RS Stock No.:
- 223-1609
- Distrelec Article No.:
- 302-38-161
- Mfr. Part No.:
- OTi-DALI-40/220...240/1A0-NFC-I
- Brand:
- Osram
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 20, 50V | |
| Maximum Output Power | 40W | |
| Input Voltage | 220, 240V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | DALI | |
| Terminal Type | Push-in | |
| Input Voltage Type | AC | |
| IP Rating | IP20 | |
| Driver Current | 1050mA | |
| Operating Modes | Constant Current | |
| LED Voltage | 198, 264V ac | |
| Series | OTI DALI | |
| Standards/Approvals | EAC, EL, EN, CE, DALI-2 | |
| Number of Outputs | 5 | |
| Configuration | Enclosed | |
| Power Dissipation | 0.15W | |
| Primary Type | AC-DC | |
| Select all | ||
|---|---|---|
Brand Osram | ||
Product Type LED Driver | ||
Output Voltage 20, 50V | ||
Maximum Output Power 40W | ||
Input Voltage 220, 240V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation DALI | ||
Terminal Type Push-in | ||
Input Voltage Type AC | ||
IP Rating IP20 | ||
Driver Current 1050mA | ||
Operating Modes Constant Current | ||
LED Voltage 198, 264V ac | ||
Series OTI DALI | ||
Standards/Approvals EAC, EL, EN, CE, DALI-2 | ||
Number of Outputs 5 | ||
Configuration Enclosed | ||
Power Dissipation 0.15W | ||
Primary Type AC-DC | ||
The Osram Compact constant current LED driver is dimmable.
Versatile DALI window driver due to flexible output characteristic
Locking and unlocking of luminaire/driver data
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1…100 % by amplitude dimming
