MEAN WELL LED Driver, 48V Output, 600W Output, 12.5A Output, Constant Voltage Dimmable

RS Stock No.:: 876-2620
Mfr. Part No.:: HLG-600H-48A
Brand:: MEAN WELL

MEAN WELL LED Driver, 48V Output, 600W Output, 12.5A Output, Constant Voltage Dimmable

3 In stock - FREE next working day delivery available

Price Each

£293.02

(exc. VAT)

£351.62

(inc. VAT)

Units	Per unit
1 - 4	£293.02
5 - 9	£279.54
10 - 24	£267.23
25 - 49	£259.61
50 +	£252.29

RS Stock No.:: 876-2620
Mfr. Part No.:: HLG-600H-48A
Brand:: MEAN WELL

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

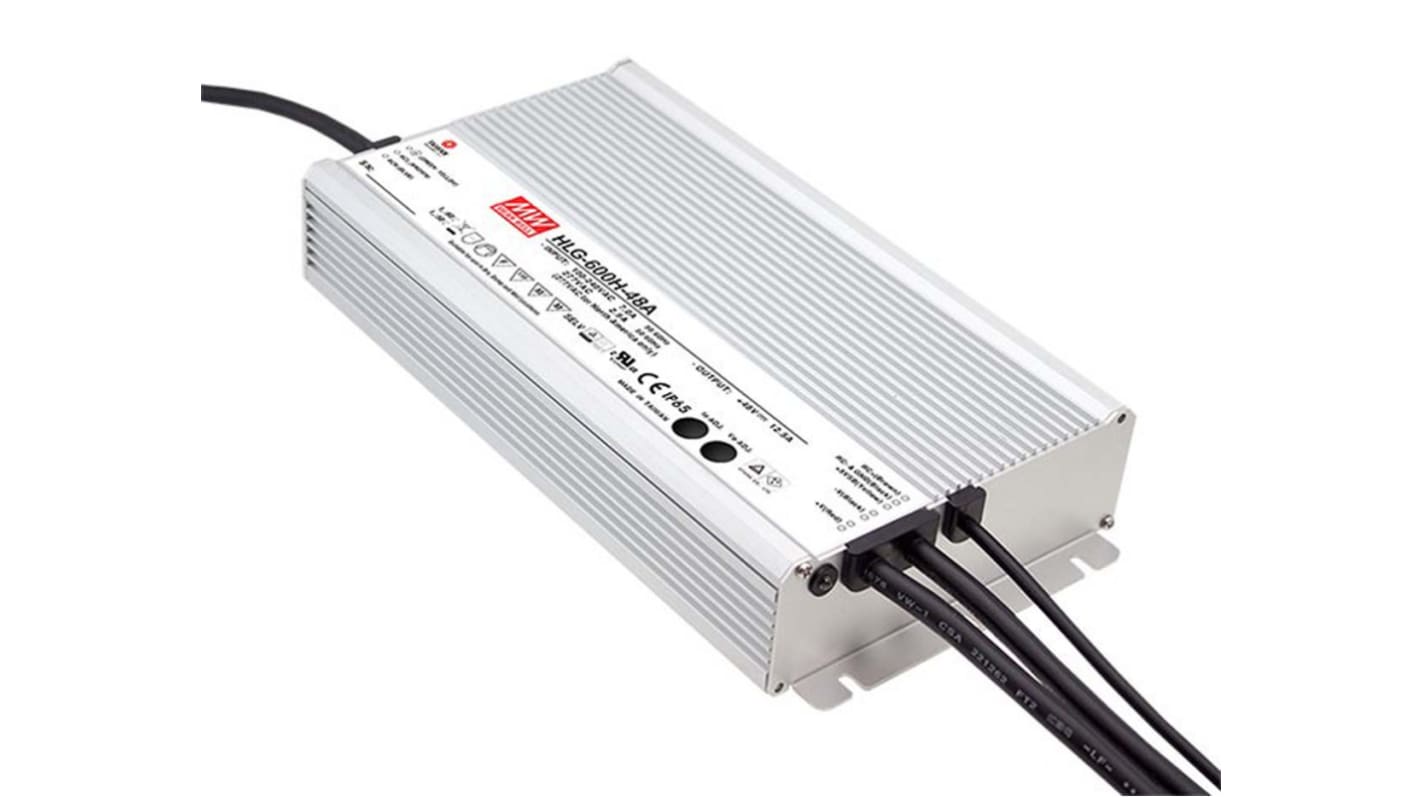

Mean Well HLG-600H-A Series 600W IP65 Rated LED Driver Power Supply

The Mean Well HLG-600H-A is a series of high wattage constant voltage/constant current LED Power supplies. This LED drivers feature wide input range 90 to 305 Vac and constant current output for general lighting fixtures. With up to date high performance topology design the HLG-600H-A possess up to 96% high efficiency, so they can be cooled by free air convection from -40 to +70°C. This Power supply is also dust-proof and water-proof IP65 rated, it has 5G anti vibration ability and 4kV surge immunity, making it suitable to withstand the dust and moisture of outdoor or indoor harsh environments. These constant voltage/constant current LED drivers are suitable for applications such as LED street lighting, LED high-bay lighting, parking space lighting, LED search light and indoor or outdoor LED lighting.

Wide range input 90 to 305VAC
Built-in active PFC function
No load power consumption <0.5W at remote OFF
Up to 96% high efficiency
IP65 design for indoor or outdoor installations
Three in one dimming function
Meet 4kV surge immunity level (EN61000-4-5)
-40 to +70°C working temperature
Cooling by free air convection
Protections: Short circuit / Over Current / Over voltage / Over temperature
Suitable for dry, damp, wet locations

Approvals

PFC / UL / CUL / ENEC / CB / CE

Mean Well LED Drivers / Power Supplies - IP Rated

Specifications

Attribute	Value
Output Voltage	48V
Maximum Output Power	600W
Output Current	12.5A
Dimmable	Yes
Input Voltage	127 → 431 V dc, 90 → 305 V ac
Operation	Constant Voltage
LED Driver Type	LED Driver
Dimming Operation	PWM, Resistance
AC or DC Input Voltage	ac, dc
IP Rating	IP65
Output	48 V @ 12.5 A
Current Rating	7 A @ 115 V ac
Voltage Rating	127 → 431 V dc, 90 → 305 V ac
Series	HLG-600H
Number of Outputs	1
Configuration	Sealed
Standards Met	CB, CE, CSA C22.2 No.250.13-12, cULus, EN61347-2-13, EN-62384, ENEC EN61347-1, IP65, IP67, J61347-1, J61347-2-13 Approved, PFC, UL60950-1, UL8750
Primary Type	AC-DC, DC-DC
