MEAN WELL LED Driver, 48V Output, 600W Output, 12.5A Output, Constant Voltage Dimmable
- RS Stock No.:
- 876-2624
- Mfr. Part No.:
- HLG-600H-48B
- Brand:
- MEAN WELL
Available to back order for despatch when stock is available
Price Each
£205.44
(exc. VAT)
£246.53
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £205.44 |
5 - 9 | £195.16 |
10 - 24 | £185.52 |
25 + | £176.06 |
- RS Stock No.:
- 876-2624
- Mfr. Part No.:
- HLG-600H-48B
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

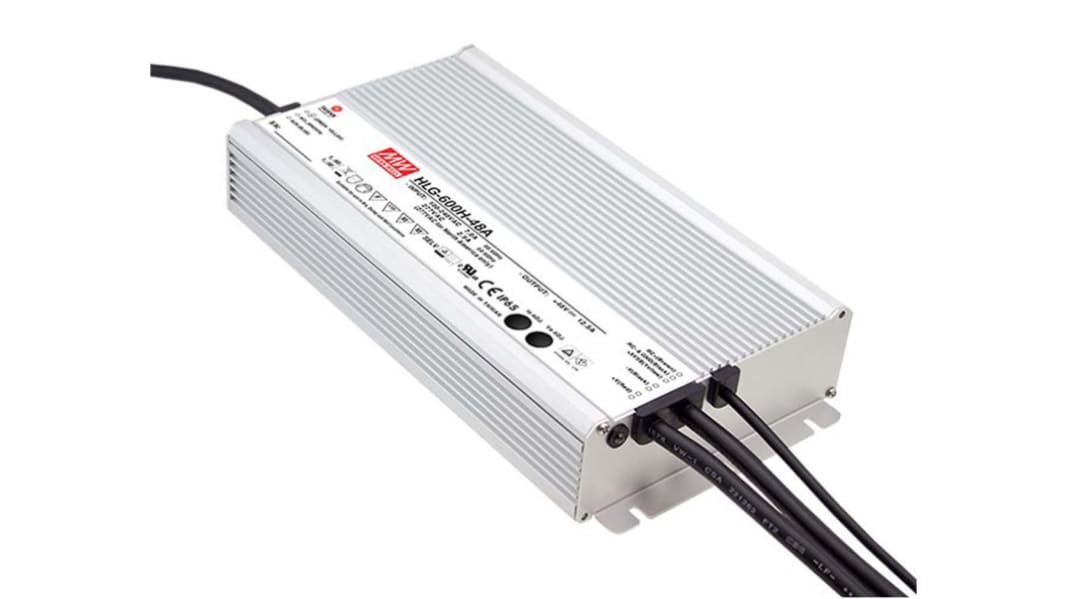

Mean Well HLG-600H-B Series 600W IP67 Rated Dimmable LED Driver Power Supply
The Mean Well HLG-600H-B is a series of high wattage constant voltage/constant current LED Power supplies. This LED drivers feature wide input range 90 to 305 Vac and constant current output for general lighting fixtures. With up to date high performance topology design the HLG-600H-B possess up to 96% high efficiency, so they can be cooled by free air convection from -40 to +70°C. This Power supply is also dust-proof and water-proof IP67 rated, it has 5G anti vibration ability and 4kV surge immunity, making it suitable to withstand the dust and moisture of outdoor or indoor harsh environments These constant voltage/constant current LED drivers are suitable for applications such as LED street lighting, LED high-bay lighting, parking space lighting, LED search light and indoor or outdoor LED lighting.
Wide range input 90 to 305VAC
Built-in active PFC function
No load power consumption <0.5W at remote OFF
Up to 96% high efficiency
IP67 design for indoor or outdoor installations
Three in one dimming function
Meet 4kV surge immunity level (EN61000-4-5)
-40 to +70°C working temperature
Cooling by free air convection
Protections: Short circuit / Over Current / Over voltage / Over temperature
Suitable for dry, damp, wet locations
Built-in active PFC function
No load power consumption <0.5W at remote OFF
Up to 96% high efficiency
IP67 design for indoor or outdoor installations
Three in one dimming function
Meet 4kV surge immunity level (EN61000-4-5)
-40 to +70°C working temperature
Cooling by free air convection
Protections: Short circuit / Over Current / Over voltage / Over temperature
Suitable for dry, damp, wet locations
Approvals
PFC / UL / CUL / ENEC / CB / CE
Mean Well LED Drivers / Power Supplies - IP Rated
Specifications
Attribute | Value |
---|---|
Output Voltage | 48V |
Maximum Output Power | 600W |
Output Current | 12.5A |
Dimmable | Yes |
Input Voltage | 127 → 431 V dc, 90 → 305 V ac |
Operation | Constant Voltage |
LED Driver Type | LED Driver |
Dimming Operation | PWM, Resistance |
AC or DC Input Voltage | ac, dc |
IP Rating | IP67 |
Output | 48 V @ 12.5 A |
Current Rating | 7 A @ 115 V ac |
Number of Outputs | 1 |
Voltage Rating | 127 → 431 V dc, 90 → 305 V ac |
Series | HLG-600H |
Configuration | Sealed |
Primary Type | AC-DC, DC-DC |
Standards Met | CB, CE, CSA C22.2 No.250.13-12, cULus, EN61347-2-13, EN-62384, ENEC EN61347-1, IP65, IP67, J61347-1, J61347-2-13 Approved, PFC, UL60950-1, UL8750 |
