Recom DALI Converter, 0 → 10V dc Output, Constant Current Dimmable
- RS Stock No.:
- 811-7355
- Distrelec Article No.:
- 304-09-810
- Mfr. Part No.:
- RELI-DA01/R
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£57.98
(exc. VAT)
£69.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 20 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £57.98 |
5 - 9 | £55.66 |
10 - 24 | £54.50 |
25 - 49 | £53.29 |
50 + | £52.21 |
*price indicative
- RS Stock No.:
- 811-7355
- Distrelec Article No.:
- 304-09-810
- Mfr. Part No.:
- RELI-DA01/R
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 0 → 10V dc | |
Dimmable | Yes | |
Input Voltage | 90 → 290 V ac | |
Operation | Constant Current | |
LED Driver Type | DALI Converter | |
Dimming Operation | PWM | |
AC or DC Input Voltage | ac | |
Series | RELI-DA01/R | |
Voltage Rating | 290V ac | |
Primary Type | AC-DC | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 0 → 10V dc | ||
Dimmable Yes | ||
Input Voltage 90 → 290 V ac | ||
Operation Constant Current | ||
LED Driver Type DALI Converter | ||
Dimming Operation PWM | ||
AC or DC Input Voltage ac | ||
Series RELI-DA01/R | ||
Voltage Rating 290V ac | ||
Primary Type AC-DC | ||
- COO (Country of Origin):
- CN

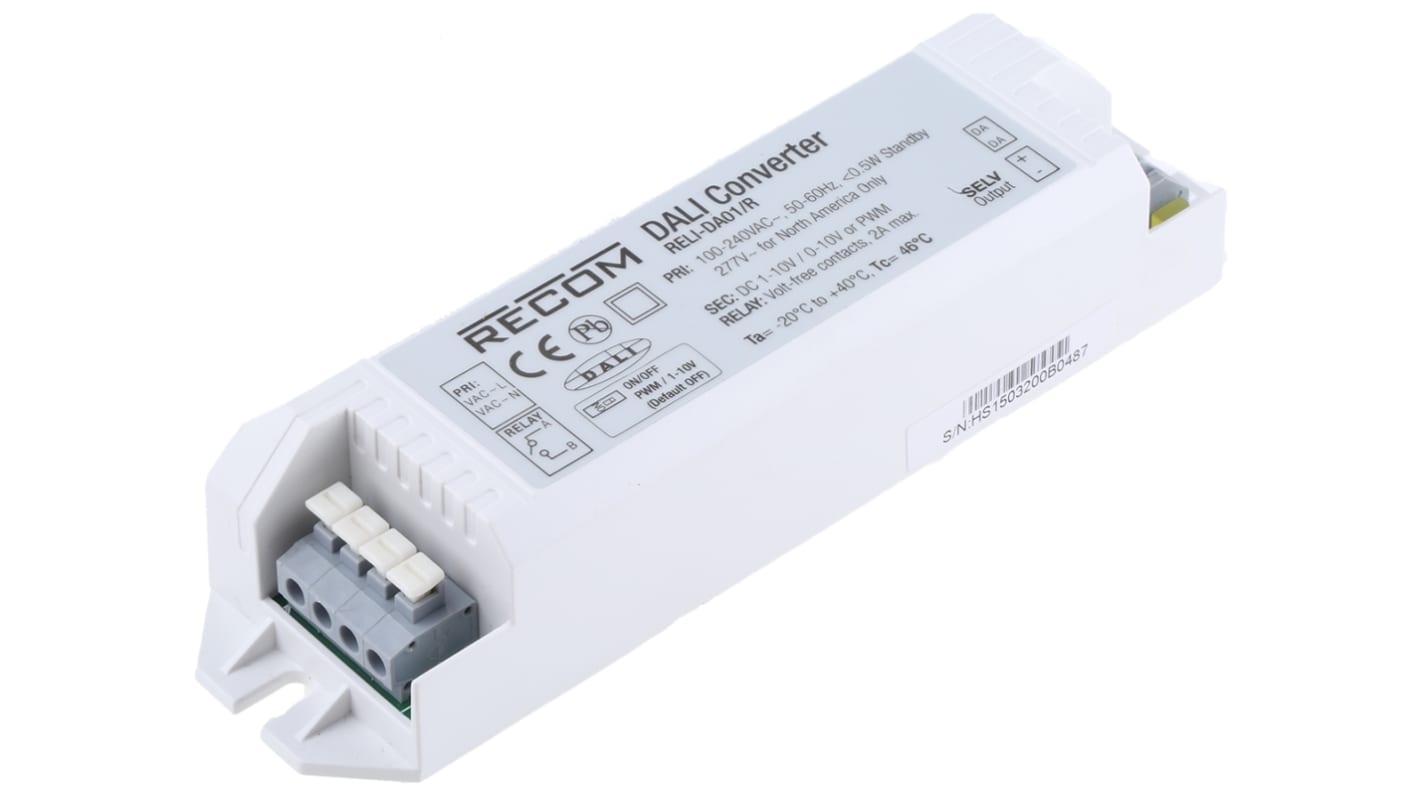

RECOM DALI Converter For Use With LED Drivers, 90 to 290V AC Input Voltage - RELI-DA01/R Series - RELI-DA01/R
Need to convert digital signals into analogue outputs to control your LED light network? Use this DALI converter from RECOM. It receives AC DALI signals between 90 and 290Vand changes them into DC analogue signals used for dimming LED lights and switching them on and off. It can control up to 6 LED drivers, so it's ideal for systems with numerous displays. Its wide operating humidity range of 20 to 90% RH means it's suitable for use in areas with high moisture and condensation levels. The converter's 3W maximum power rating ensures it can handle demanding applications.
Features & Benefits
• Built-in relay to switch off LED drivers and ensure zero no-load consumption, for greater energy efficiency
• Mean time between failures of 200 x 10³ hours, so it's highly reliable
• IP20-rated housing for protection against dust and objects larger than 12mm
• Screwless connectors for easy installation
• Operating temperature range of -20°C to +40°C for use in tough environments
• Mean time between failures of 200 x 10³ hours, so it's highly reliable
• IP20-rated housing for protection against dust and objects larger than 12mm
• Screwless connectors for easy installation
• Operating temperature range of -20°C to +40°C for use in tough environments
Applications
• LED light networks
• Retail applications
• Office and residential buildings
• Retail applications
• Office and residential buildings
What's the output signal of this unit?
Options for the output signal include two voltage ranges, 0 to 10V and 1 to 10V, and a pulse-width modulation (PWM) signal.
