Recom LED Driver, 2 → 35V dc Output, 10.5W Output, 300mA Output, Constant Current Dimmable
- RS Stock No.:
- 738-5654
- Mfr. Part No.:
- RCD-24-0.30/W/Vref
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£15.52
(exc. VAT)
£18.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.52 |
5 - 9 | £14.89 |
10 - 24 | £14.58 |
25 - 49 | £14.27 |
50 + | £13.96 |
*price indicative
- RS Stock No.:
- 738-5654
- Mfr. Part No.:
- RCD-24-0.30/W/Vref
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 2 → 35V dc | |
Maximum Output Power | 10.5W | |
Output Current | 300mA | |
Dimmable | Yes | |
Input Voltage | 4.5 → 36 V dc | |
Operation | Constant Current | |
LED Driver Type | LED Driver | |
Dimming Operation | 0 to 4.35 V dc, PWM | |
AC or DC Input Voltage | dc | |
IP Rating | IP67 | |
Current Rating | 0 → 300mA | |
Voltage Rating | 36V dc | |
Series | RCD-24 | |
Number of Outputs | 1 | |
Configuration | Enclosed | |
Primary Type | DC-DC | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 2 → 35V dc | ||
Maximum Output Power 10.5W | ||
Output Current 300mA | ||
Dimmable Yes | ||
Input Voltage 4.5 → 36 V dc | ||
Operation Constant Current | ||
LED Driver Type LED Driver | ||
Dimming Operation 0 to 4.35 V dc, PWM | ||
AC or DC Input Voltage dc | ||
IP Rating IP67 | ||
Current Rating 0 → 300mA | ||
Voltage Rating 36V dc | ||
Series RCD-24 | ||
Number of Outputs 1 | ||
Configuration Enclosed | ||
Primary Type DC-DC | ||
- COO (Country of Origin):
- TW

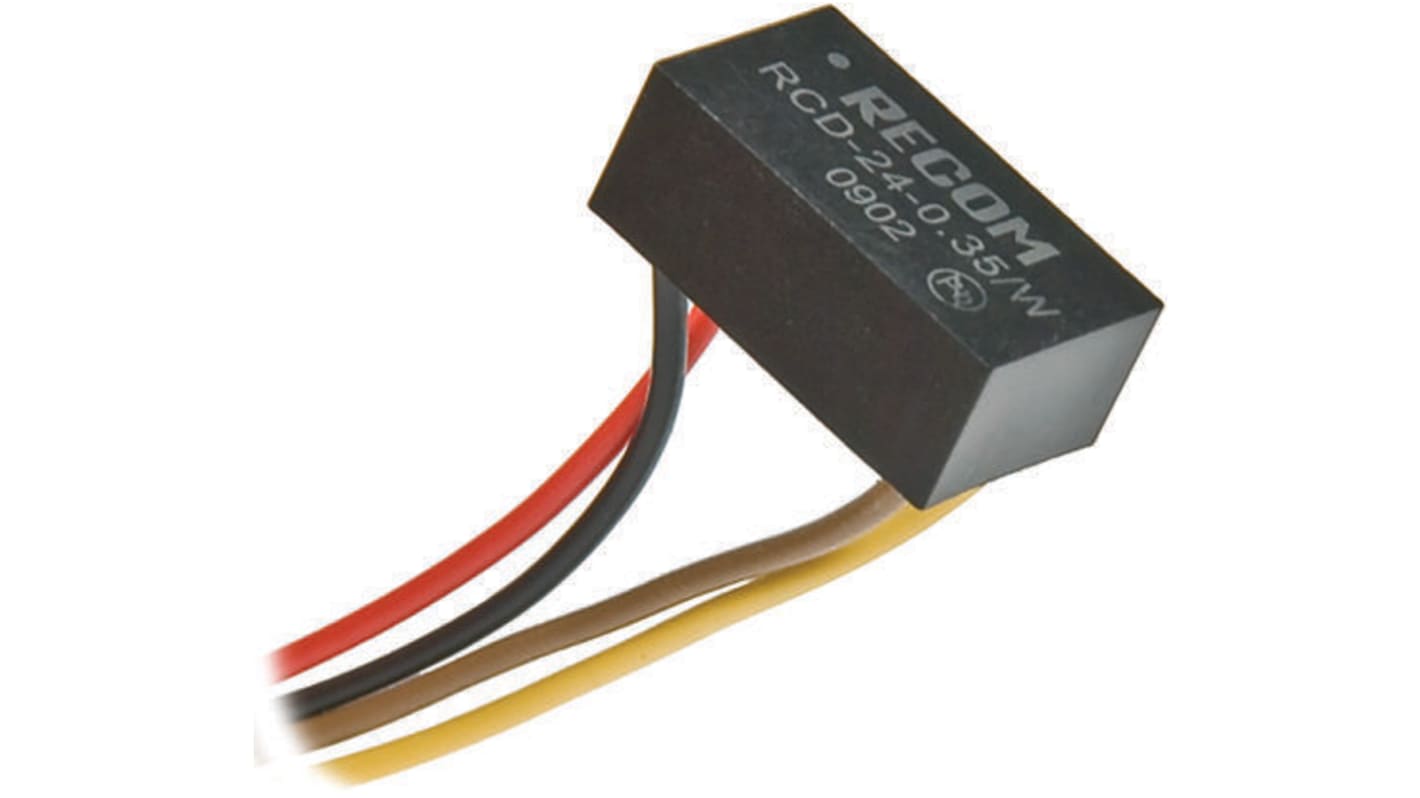

Constant Current LED Driver, Wired with Vref - RCD-24 Series
IP67 rated wired constant current LED drivers for driving high power white LEDs. These six wire, constant current LED drivers have analogue voltage dimming and built-in reference output voltage to power sensors or for easy analogue dimming.
Wide input and output voltage range
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
IP67 ingress protection
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
IP67 ingress protection
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B
Standards
EN 609501-1
RECOM LED Driver, Wired Connections, 96% Efficiency Rating - RCD-24 Series - RCD-24-0.30/W/Vref
Take control of your lighting system's performance with this LED driver from RECOM. Using its reference voltage connector, you can loop in a sensor or analogue controller for hassle-free voltage management. Powering many devices at once is this product's bread and butter, as it delivers a steady 10.5W output. This energy-efficient unit converts 96% of its input voltage, which means it doesn't waste much power as heat, so runs cool. A maximum output current accuracy of ±3% indicates the driver produces precise results and keeps sensitive components running smoothly.
Features & Benefits
• Accepts input voltages between 4.5 and 36V DC to work with common power supplies
• Colour-coded conductors, making identifying wires easy
• IP67 rating means it's dust-tight and resistant to temporary submersion in shallow water, so it handles tough industrial conditions
• Comes with integrated short-circuit protection to help minimise damage from electrical faults
• Colour-coded conductors, making identifying wires easy
• IP67 rating means it's dust-tight and resistant to temporary submersion in shallow water, so it handles tough industrial conditions
• Comes with integrated short-circuit protection to help minimise damage from electrical faults
Applications
• Billboards
• Logistics industry
• Bottling plants
• Logistics industry
• Bottling plants
How do I install this LED driver?
Thanks to its flexible wires, you can add this unit to your system using simple screw terminals, making it easy to adjust your wiring setup later.
