Recom LIGHTLINE, 35 V Output, 10.5 W Output, 300 to 1200 mA PWM

RS Stock No.:: 667-1649
Mfr. Part No.:: RCD-24-0.30
Brand:: Recom

Recom LIGHTLINE, 35 V Output, 10.5 W Output, 300 to 1200 mA PWM

Bulk discount available

Subtotal (1 unit)*

£13.60

(exc. VAT)

£16.32

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

19 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location
Plus 1 unit(s) shipping from 17 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£13.60
5 - 9	£13.07
10 - 24	£12.80
25 - 49	£12.53
50 +	£12.25

*price indicative

RS Stock No.:: 667-1649
Mfr. Part No.:: RCD-24-0.30
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	35 V
	Product Type	LED Driver
	Maximum Output Power	10.5W
	Input Voltage	36 V dc
	Mount Type	Wire
	Sub Type	LIGHTLINE
	Dimming Operation	PWM
	Input Voltage Type	DC
	IP Rating	IP67
	Driver Current	300 to 1200 mA
	Operating Modes	Constant Current
	Standards/Approvals	EN55022 Class B, CSA C22.2 No 60950-1-03, EN-50121-3-2, EN61000-4-3 Class A, EN61000-4-6 Class A, EN61373, RoHS 2011/65/EU, UL-60950-1, EN-60950-1, EN61000-4-2 Class A, EN61000-4-4 Class A
	Number of Outputs	1
	Series	RCD-24
	Configuration	Enclosed
	Primary Type	DC-DC
	Power Dissipation	800mW

	Select all
	Brand Recom
	Output Voltage 35 V
	Product Type LED Driver
	Maximum Output Power 10.5W
	Input Voltage 36 V dc
	Mount Type Wire
	Sub Type LIGHTLINE
	Dimming Operation PWM
	Input Voltage Type DC
	IP Rating IP67
	Driver Current 300 to 1200 mA
	Operating Modes Constant Current
	Standards/Approvals EN55022 Class B, CSA C22.2 No 60950-1-03, EN-50121-3-2, EN61000-4-3 Class A, EN61000-4-6 Class A, EN61373, RoHS 2011/65/EU, UL-60950-1, EN-60950-1, EN61000-4-2 Class A, EN61000-4-4 Class A
	Number of Outputs 1
	Series RCD-24
	Configuration Enclosed
	Primary Type DC-DC
	Power Dissipation 800mW

Datasheet

COO (Country of Origin):: TW

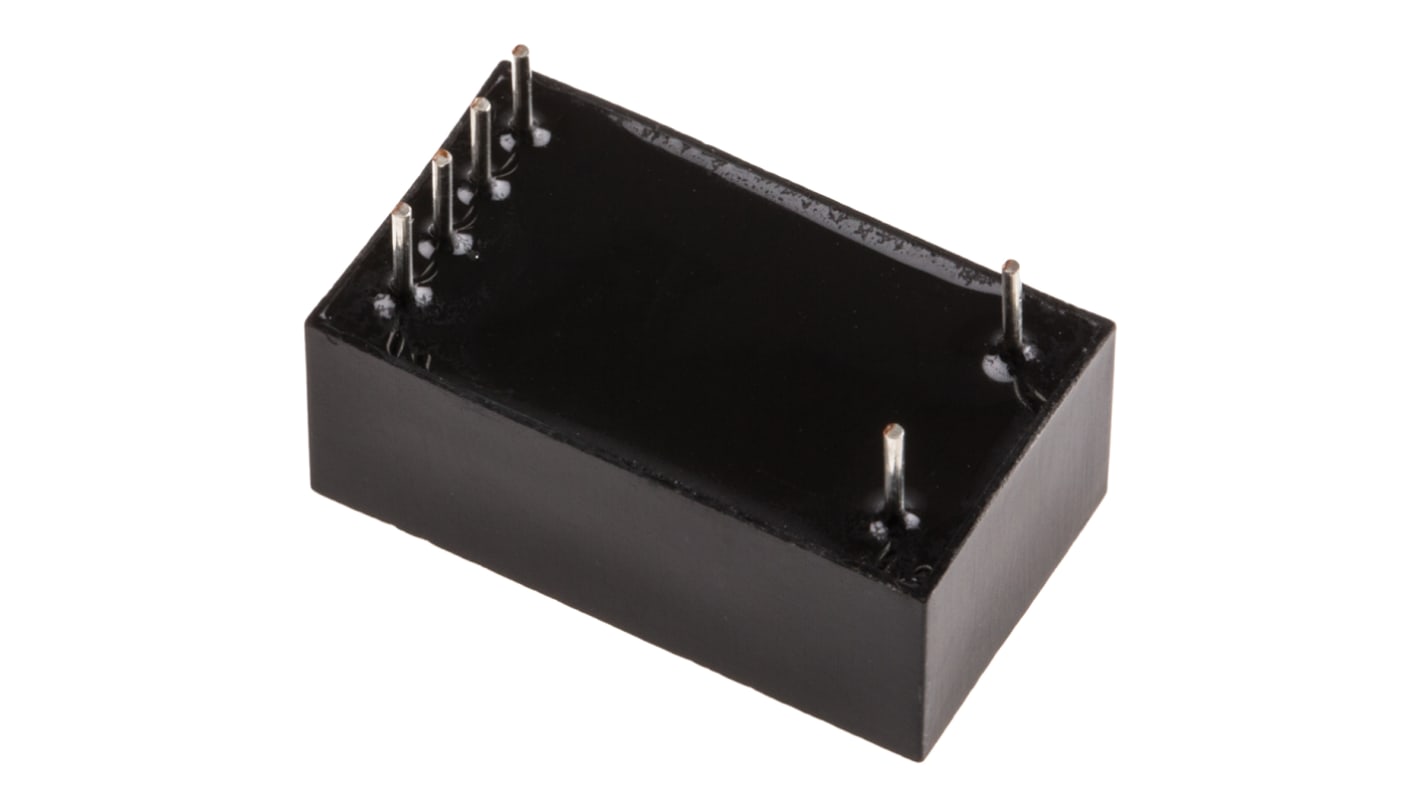

RECOM LED Driver, 10.5W Power Rating, Regulated Type - RCD-24 Series - RCD-24-0.30

Looking for a reliable way to deliver the right power to your LED system? Opt for this LED driver from RECOM. It's designed to take an input supply between 4.5 and 36V DC and convert it to an output voltage between 2 and 35V DC. This improves light performance and protects against overheating. The unit lets you choose between two dimming options – analogue voltage and digital pulse-width modulation signals. For versatility and to suit the needs of your setup, you can use these alone or in combination.

Features & Benefits

• Compact dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (H) for discreet installation

• 96% efficiency indicates it's energy-saving and produces minimal heat

• Through-hole mounting makes installation quick and easy

Applications

• Aircraft lighting

• Computer displays

• Underwater lighting systems

Can I use this unit in demanding conditions?

Yes. This LED driver has a broad operating temperature range between -40°C and +85°C, indicating that it's suitable for use in demanding conditions.

What's the output current of this unit?

This versatile unit produces an output current between 0 and 300mA.
