Mean Well, 30V Output, 150W Output, 5A Output, Constant Voltage
- RS Stock No.:
- 660-0347
- Mfr. Part No.:
- CLG-150-30B
- Brand:
- Mean Well
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£56.62
(exc. VAT)
£67.94
(inc. VAT)
- RS Stock No.:
- 660-0347
- Mfr. Part No.:
- CLG-150-30B
- Brand:
- Mean Well
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mean Well | |
Output Voltage | 30V | |
Maximum Output Power | 150W | |
Output Current | 5A | |
Input Voltage | 127 → 417 V dc, 90 → 295 V ac | |
Operation | Constant Voltage | |
Dimming Operation | Potentiometer | |
AC or DC Input Voltage | ac, dc | |
IP Rating | IP67 | |
Current Rating | 5A | |
Number of Outputs | 1 | |
Voltage Rating | 127 → 417 V dc, 90 → 295 V ac | |
Select all | ||
---|---|---|
Brand Mean Well | ||
Output Voltage 30V | ||
Maximum Output Power 150W | ||
Output Current 5A | ||
Input Voltage 127 → 417 V dc, 90 → 295 V ac | ||
Operation Constant Voltage | ||
Dimming Operation Potentiometer | ||
AC or DC Input Voltage ac, dc | ||
IP Rating IP67 | ||
Current Rating 5A | ||
Number of Outputs 1 | ||
Voltage Rating 127 → 417 V dc, 90 → 295 V ac | ||
- COO (Country of Origin):
- TW

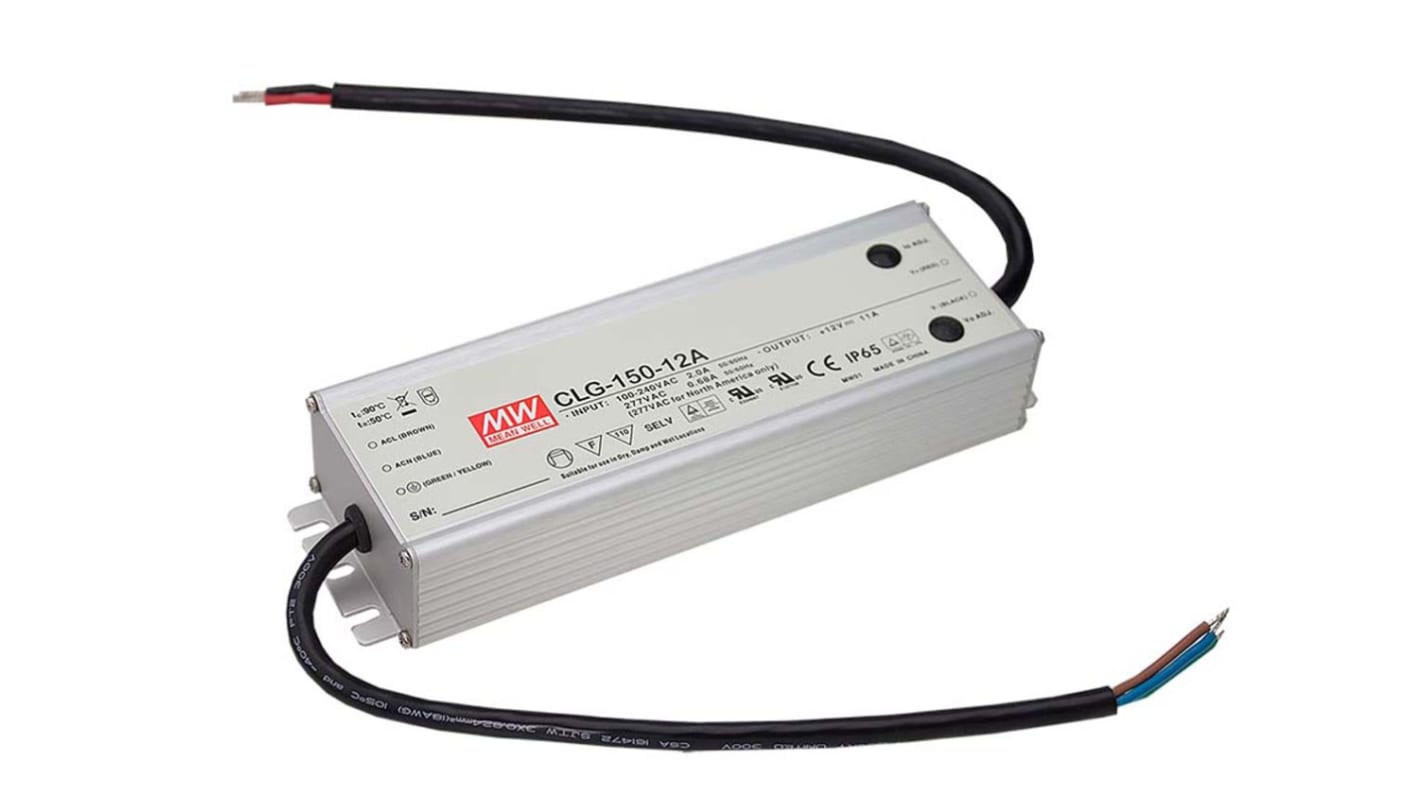

CLG-150 Series Waterproof (IP67) PFC SMPSU
External switch mode IP67 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
Constant current level adjustable through output cable
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2x2-core 14AWG and 18AWG (volts & adjust) output leads
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
Constant current level adjustable through output cable
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2x2-core 14AWG and 18AWG (volts & adjust) output leads
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Standards
TUV EN 60950-1, EN 61347-1, EN 61347-2-13, UL 60950-1
Approvals
TUV, UL recognised for Canada & US
