MEAN WELL, 48 V Output, 240 W Output 3 in 1, Resistance, 10V PWM

View all LED Drivers

Subtotal (1 unit)*

£63.02

(exc. VAT)

£75.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£63.02

*price indicative

RS Stock No.:
611-342
Mfr. Part No.:
HBG-240-48AB
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

48 V

Product Type

LED Driver

Maximum Output Power

240W

Input Voltage

90 to 305 V ac/dc, 127 to 431 V ac/dc

Dimming Operation

3 in 1, Resistance, 10V PWM

Input Voltage Type

AC/DC

IP Rating

IP67, IP65

Operating Modes

Constant Current/Constant Voltage

LED Voltage

48 V

Standards/Approvals

EN61000-4-3, BIS IS15885, EN61000-4-5, UL8750, EN61000-3-3, EN61000-4-11, GB17625.1, ENEC EN61347-1, CSA C22.2 No.250.13-12, EN62384, EN55015, EN61347-2-13, EN61000-4-6, IEC62386-207, EN61000-4-4, EN61547, EAC TP TC 020, GB17743, EN61000-3-2, DALI:IEC62386-101, IEC62386-102, GB19510.1, EN61000-4-8, GB19510.14, EAC TP TC 004, EN61000-4-2

Series

HBG-240

Primary Type

LED Driver

COO (Country of Origin):
CN

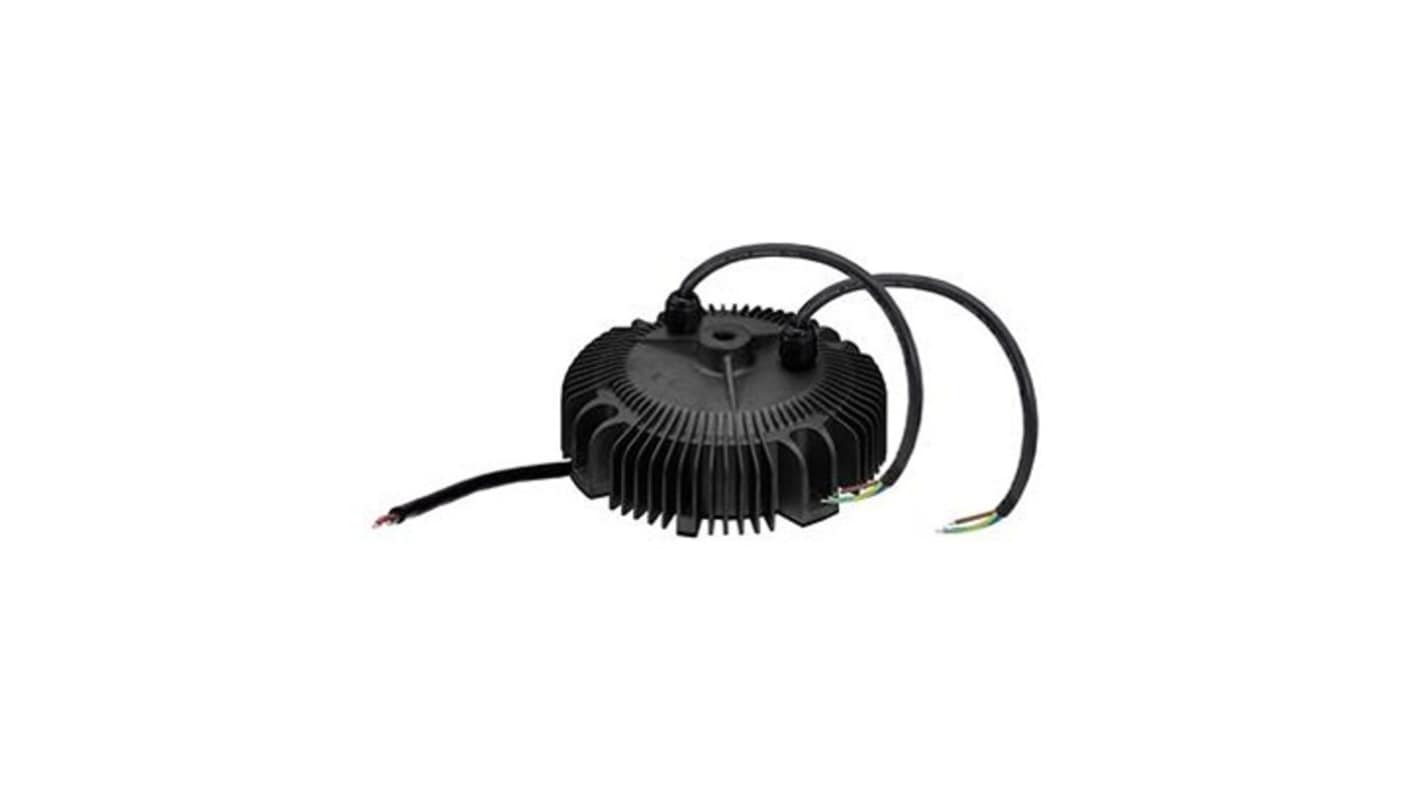

The MEANWELL 240W AC/DC LED driver featuring the circular shape design. It operates from 90 to 305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24Vand 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C to +75°C case temperature under free air convection.

Circular metal housing with class I design

Built-in active PFC function

IP67/IP65 rating for indoor or outdoor installations
