MEAN WELL, 48V Output, 200 W Output 10V PWM, Resistance, 3 in 1

View all LED Drivers

Subtotal (1 unit)*

£63.96

(exc. VAT)

£76.75

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 8 unit(s) shipping from 11 May 2026
  • Plus 4 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£63.96

*price indicative

RS Stock No.:
611-337
Mfr. Part No.:
HBG-200-48AB
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

LED Driver

Output Voltage

48V

Maximum Output Power

200W

Input Voltage

127, 305, 431, 90V ac/dc

Dimming Operation

10V PWM, Resistance, 3 in 1

Input Voltage Type

AC/DC

IP Rating

IP67, IP65

Operating Modes

Constant Current/Constant Voltage

LED Voltage

48V

Series

HBG-200

Standards/Approvals

EAC TP TC 004, EN61000-3-2 Class C, 102, GB17743, EN55015, EN62384, EAC TP TC 020, EN61000-4-2, ENEC EN61347-1, EN61547, EN61347-2-13 independent, GB19510.1, UL8750(type”HL”), 207 (for DA type only), EN61000-3-3, CSA C22.2 No.250.13-12, GB19510.14, GB17625.1, IEC62386-101

Primary Type

LED Driver

COO (Country of Origin):
CN

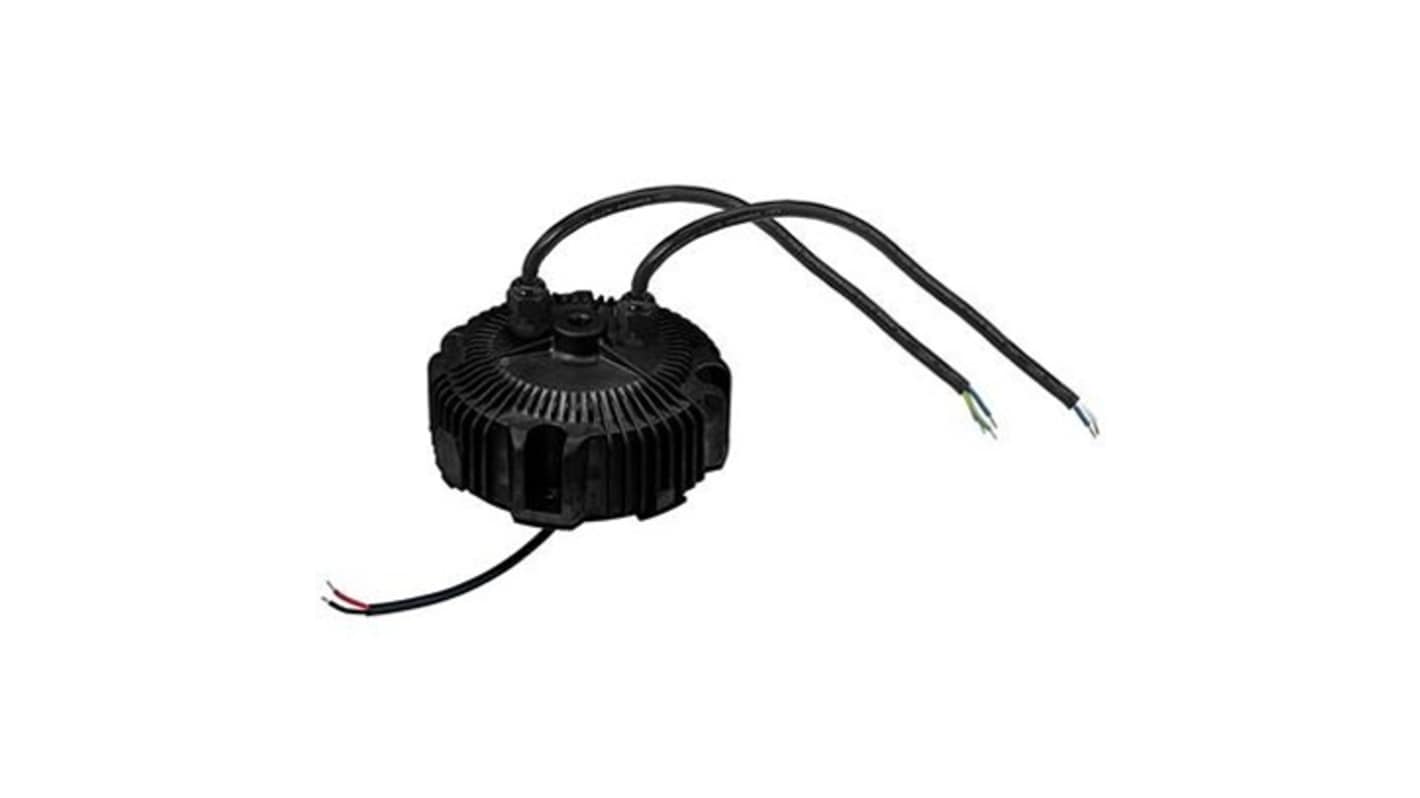

The MEANWELL 200W AC/DC LED driver featuring the circular shape design. It operates from 90 to 305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36Vand 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C to +85°C case temperature under free air convection.

Circular metal housing with class I design

Built-in active PFC function

IP67/IP65 rating for indoor or outdoor installations
