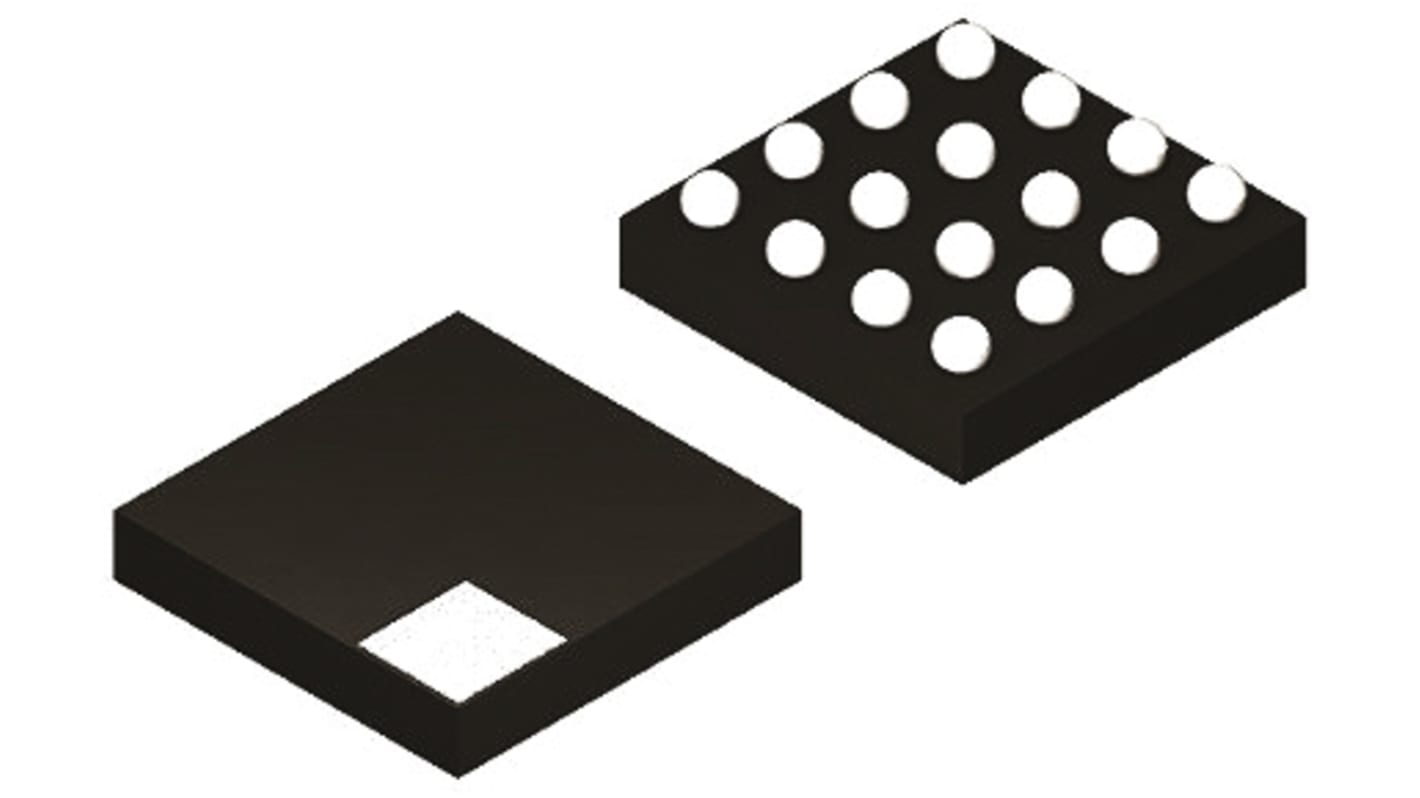

Fairchild Semiconductor FAN5701UC15X LED Driver IC, 2.7 → 5.5 V dc 180mA 16-Pin WLCSP
- RS Stock No.:
- 865-1145
- Mfr. Part No.:
- FAN5701UC15X
- Brand:
- Fairchild Semiconductor
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 250)
£0.647
(exc. VAT)
£0.776
(inc. VAT)
- RS Stock No.:
- 865-1145
- Mfr. Part No.:
- FAN5701UC15X
- Brand:
- Fairchild Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Fairchild Semiconductor | |
Output Current | 180mA | |
Input Voltage | 2.7 → 5.5 V dc | |
AC or DC Input Voltage | dc | |
Dimming Operation | PWM | |
Application | Keypad Backlighting, LCD Backlight, Mobile Handset, Portable Media Player | |
Package Type | WLCSP | |
Number of Pins | 16 | |
Current Rating | 15mA | |
Select all | ||
---|---|---|
Brand Fairchild Semiconductor | ||
Output Current 180mA | ||
Input Voltage 2.7 → 5.5 V dc | ||
AC or DC Input Voltage dc | ||
Dimming Operation PWM | ||
Application Keypad Backlighting, LCD Backlight, Mobile Handset, Portable Media Player | ||
Package Type WLCSP | ||
Number of Pins 16 | ||
Current Rating 15mA | ||
- COO (Country of Origin):
- US
LED Drivers, Fairchild Semiconductor
Fairchild LED drivers control the amount of current and voltage that is supplied to an LED light, their range include models with Pulse Width Modulation (PWM), which to enable the LED light to become dimmable. Some Fairchild LED drivers are integrated with a constant-current (CC) driver which will monitor the loop current of each LED.
LED Drivers
A range of highly integrated dedicated high-current LED Driver ICs for use in lighting and display backlight applications.
