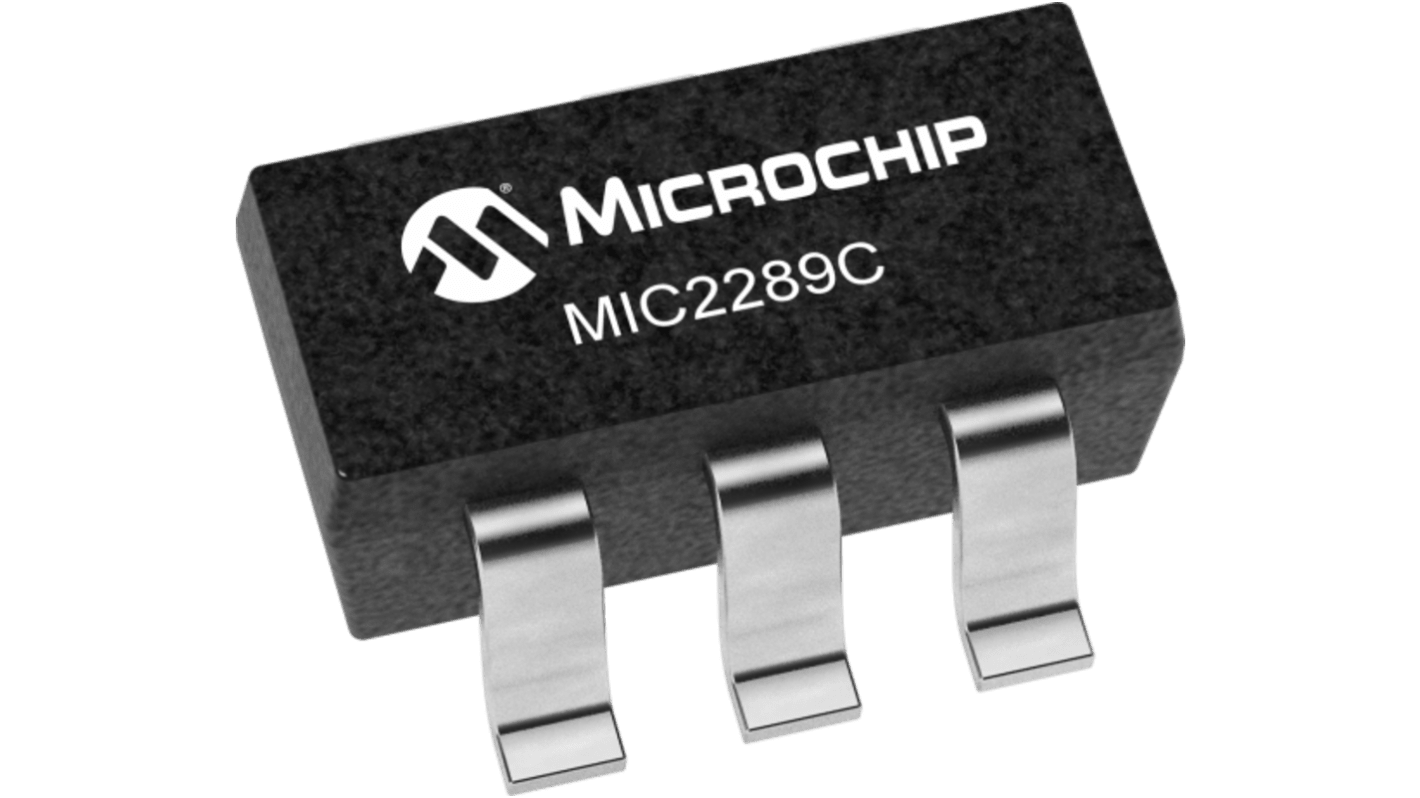

Microchip MIC2289C-34YD6-TR LED Driver IC, 2.5 to 10 V 750 mA 6-Pin TSOT-23-6
- RS Stock No.:
- 598-628
- Mfr. Part No.:
- MIC2289C-34YD6-TR
- Brand:
- Microchip
Subtotal (1 reel of 3000 units)*
£3,240.00
(exc. VAT)
£3,900.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £1.08 | £3,240.00 |
*price indicative
- RS Stock No.:
- 598-628
- Mfr. Part No.:
- MIC2289C-34YD6-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Output Current | 750mA | |
| Product Type | LED Driver IC | |
| Input Voltage | 2.5 to 10 V | |
| Input Voltage Type | DC | |
| Dimming Operation | Analogue, PWM | |
| Mount Type | Surface | |
| Package Type | TSOT-23-6 | |
| Number of Pins | 6 | |
| Maximum Output Voltage | 34V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1mm | |
| Series | MIC2289C | |
| Standards/Approvals | RoHS | |
| Width | 2.90 mm | |
| Length | 2.8mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Output Current 750mA | ||
Product Type LED Driver IC | ||
Input Voltage 2.5 to 10 V | ||
Input Voltage Type DC | ||
Dimming Operation Analogue, PWM | ||
Mount Type Surface | ||
Package Type TSOT-23-6 | ||
Number of Pins 6 | ||
Maximum Output Voltage 34V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1mm | ||
Series MIC2289C | ||
Standards/Approvals RoHS | ||
Width 2.90 mm | ||
Length 2.8mm | ||
Automotive Standard No | ||
The Microchip Step down voltage regulator designed to deliver reliable performance in space-constrained applications. Featuring a versatile architecture, this regulator excels at producing stable output voltages with minimal output ripple, making it an ideal choice for a variety of consumer electronics. Its ability to operate across a wide input voltage range ensures that it can adapt to various power sources with ease. Furthermore, the device is equipped with integrated protection features such as overcurrent protection and thermal shutdown, which enhance its reliability in demanding environments. This regulator also offers low quiescent current, making it perfect for battery-operated devices, ensuring extended battery life while maintaining excellent performance.
High efficiency enables longer battery life
Integrated thermal shutdown protects against overheating
Compact design facilitates easy integration into tight spaces
Wide input voltage range improves compatibility with diverse power sources
Low quiescent current ensures minimal power consumption in standby mode
Overcurrent protection enhances overall system safety
