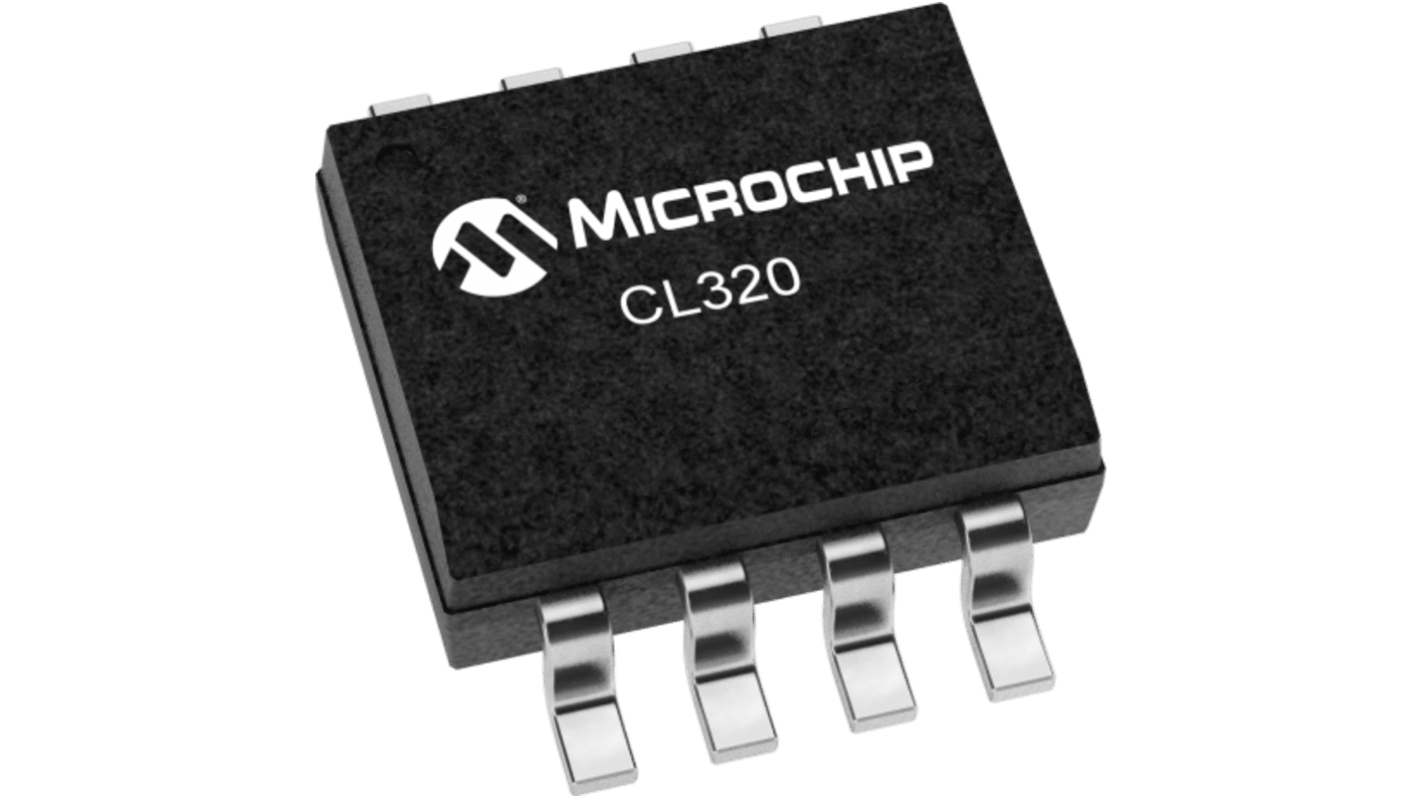

Microchip CL320SG-G LED Driver IC, 6.5 to 90 V 8-Pin SOIC
- RS Stock No.:
- 598-538
- Mfr. Part No.:
- CL320SG-G
- Brand:
- Microchip
Subtotal (1 reel of 3300 units)*
£2,871.00
(exc. VAT)
£3,432.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 + | £0.87 | £2,871.00 |
*price indicative
- RS Stock No.:
- 598-538
- Mfr. Part No.:
- CL320SG-G
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | LED Driver IC | |
| Dimming Operation | PWM | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Pins | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 119°C | |
| Standards/Approvals | RoHS | |
| Series | CL320 | |
| Automotive Standard | No | |
| Minimum Output Voltage | 4V | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type LED Driver IC | ||
Dimming Operation PWM | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Pins 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 119°C | ||
Standards/Approvals RoHS | ||
Series CL320 | ||
Automotive Standard No | ||
Minimum Output Voltage 4V | ||
The Microchip 3-Channel Linear LED Drivers are designed to drive three strings of LEDs at a constant current of 20 mA, 25 mA and 30 mA, respectively. The drive current is fixed, with a ±6% tolerance over a VOUT range of 4V to 15V. Separate enable pins for each channel allow for PWM dimming, three-step linear dimming or individual disconnection of faulty LED strings.
90V Standoff Voltage
Separate Enable Pins for each Channel for PWM Dimming
Over temperature Protection
