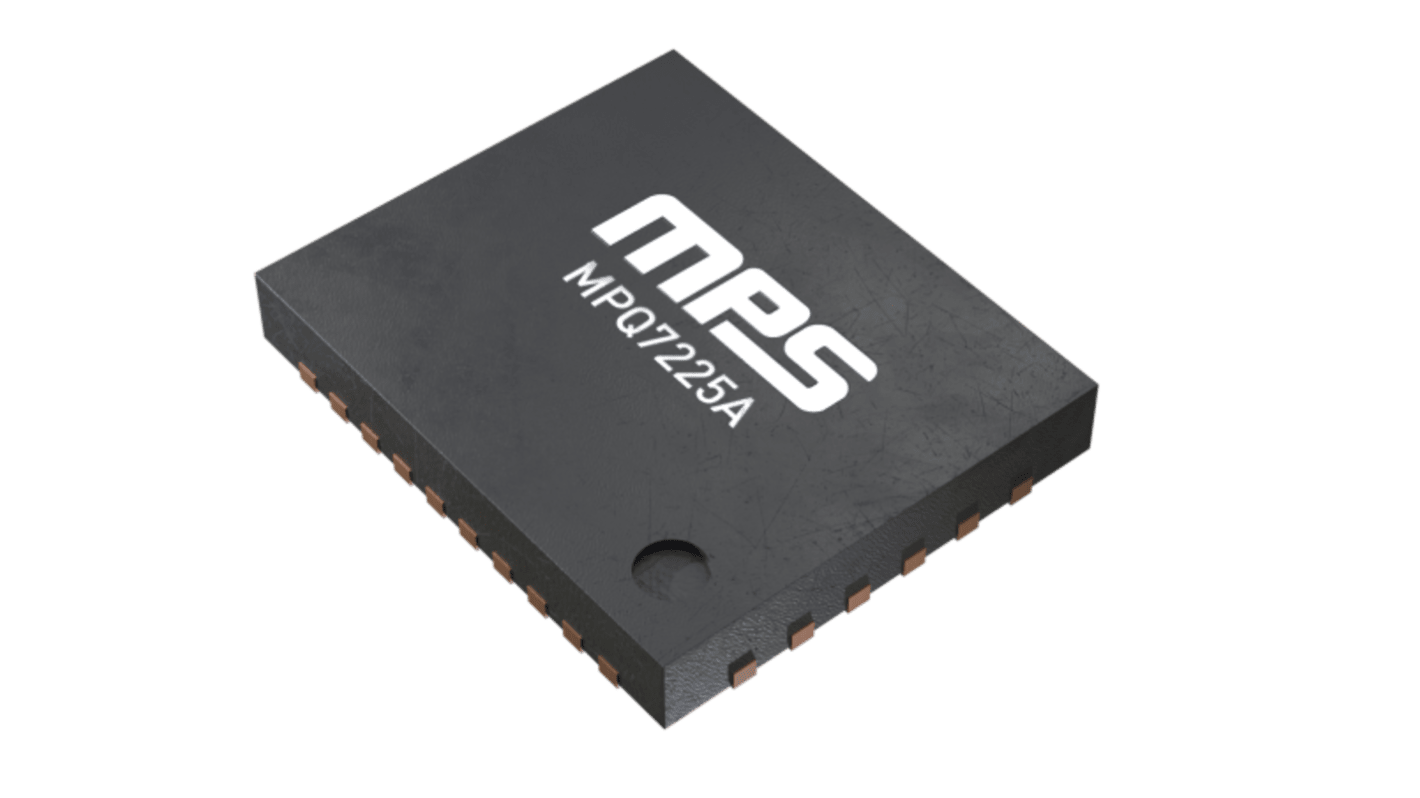

MPS MPQ7225AGQJE-0000-AEC1-P LED Driver, 2.5 → 18 V 200mA 32-Pin QFN
- RS Stock No.:
- 337-455
- Mfr. Part No.:
- MPQ7225AGQJE-0000-AEC1-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-455
- Mfr. Part No.:
- MPQ7225AGQJE-0000-AEC1-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Output Current | 200mA | |
Input Voltage | 2.5 → 18 V | |
AC or DC Input Voltage | dc | |
Dimming Operation | 1-10 V | |
Maximum Output Power | 5.9W | |
Package Type | QFN | |
Number of Pins | 32 | |
Select all | ||
---|---|---|
Brand MPS | ||
Output Current 200mA | ||
Input Voltage 2.5 → 18 V | ||
AC or DC Input Voltage dc | ||
Dimming Operation 1-10 V | ||
Maximum Output Power 5.9W | ||
Package Type QFN | ||
Number of Pins 32 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd 16 channel current sink LED driver is optimized for animated or dynamic lighting applications. It employs 12 bit pulse width modulation dimming and 6 bit analogue dimming register per channel, with individual control of each channel. It is designed to function across distanced PCBs with a robust, high speed, CAN compatible differential interface.
Functional safety document available to support system in achieving ASIL requirements
Failsafe pin and fault registers for system protection and diagnostics
Thermal warning and shutdown
Failsafe pin and fault registers for system protection and diagnostics
Thermal warning and shutdown
