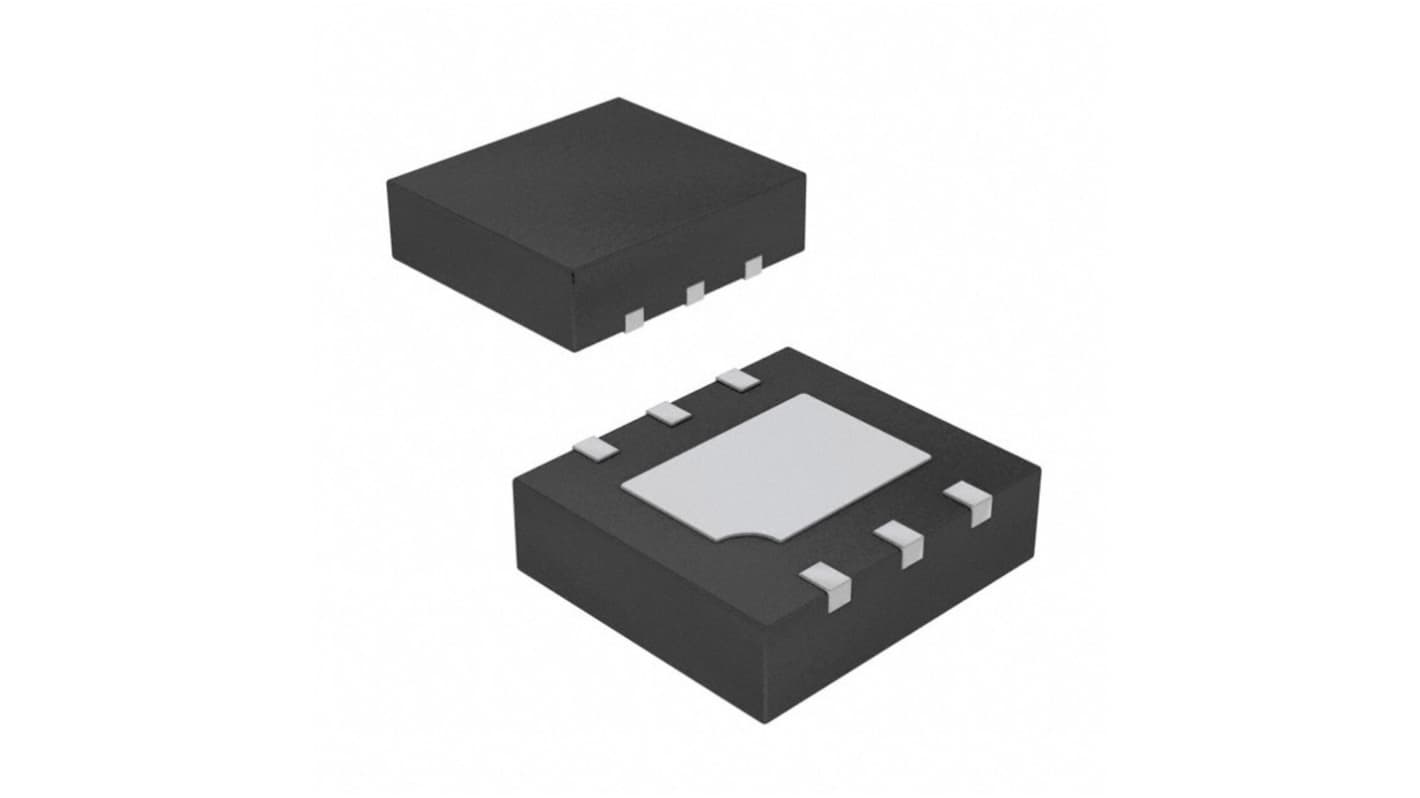

MPS MP1528DQ-LF-P LED Driver, 2.7 → 36 V 20mA 6-Pin QFN
- RS Stock No.:
- 337-083
- Mfr. Part No.:
- MP1528DQ-LF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-083
- Mfr. Part No.:
- MP1528DQ-LF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Output Current | 20mA | |
Input Voltage | 2.7 → 36 V | |
AC or DC Input Voltage | dc | |
Maximum Output Power | 2.5W | |
Package Type | QFN | |
Number of Pins | 6 | |
Select all | ||
---|---|---|
Brand MPS | ||
Output Current 20mA | ||
Input Voltage 2.7 → 36 V | ||
AC or DC Input Voltage dc | ||
Maximum Output Power 2.5W | ||
Package Type QFN | ||
Number of Pins 6 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Step up converter designed for driving up to nine (9) series White LEDs from a single cell Lithium Ion battery. It regulates the LED current and includes an analogue input for varying the LED brightness. It uses current limited, variable frequency architecture to regulate the LED current while maintaining high efficiency. The BIAS pin measures the output voltage and turns off the converter if an over voltage condition is present to prevent damage due to an open circuit condition.
Soft start
Internal current limit
Under voltage lockout
Thermal shutdown
Internal current limit
Under voltage lockout
Thermal shutdown
