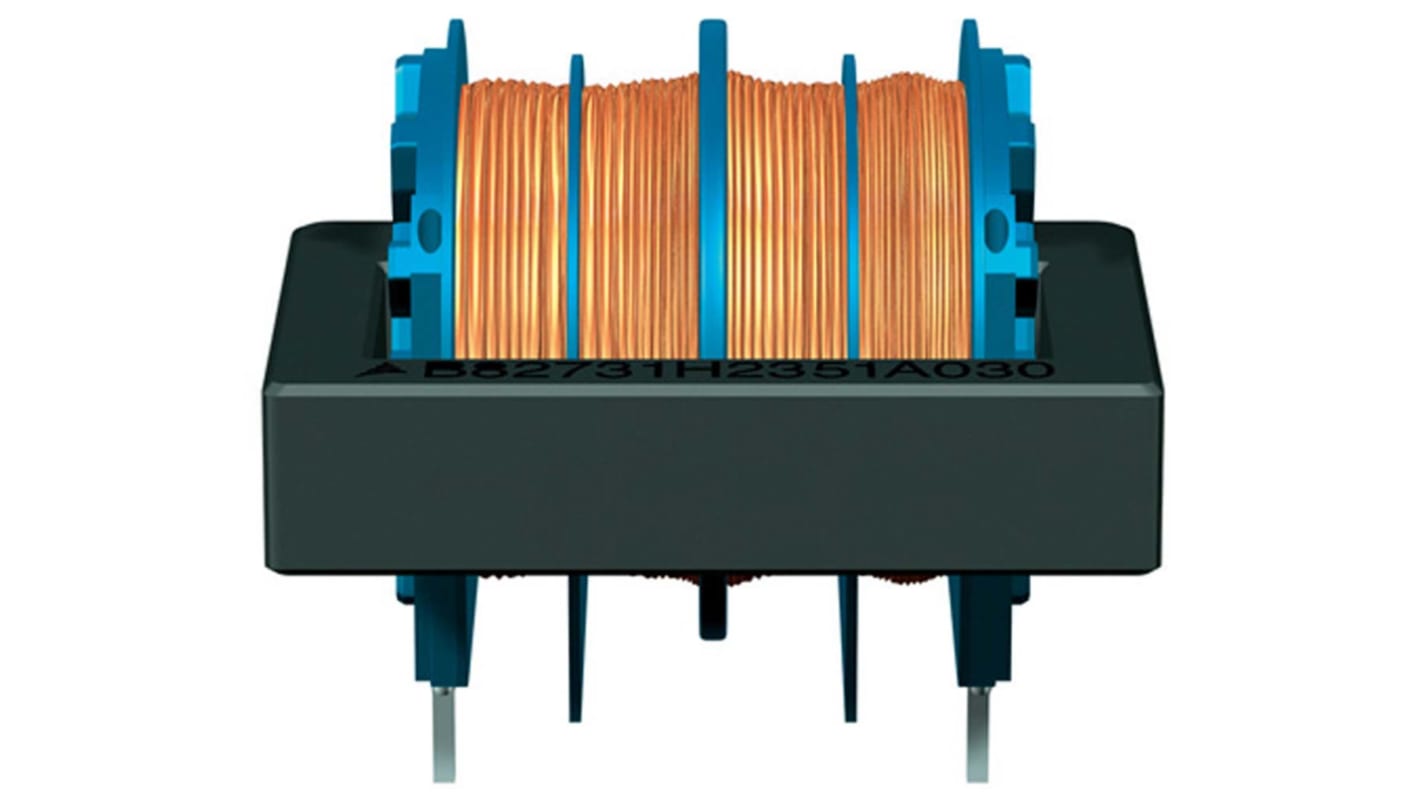

EPCOS 27 mH -30 → +50% Ferrite Power Line Choke, Max SRF:10kHz, 700mA Idc, 1Ω Rdc 250 V ac, B82731H
- RS Stock No.:
- 871-1509
- Mfr. Part No.:
- B82731H2701A030
- Brand:
- EPCOS
Subtotal (1 bag of 3 units)*
£3.939
(exc. VAT)
£4.728
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,554 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 3 + | £1.313 | £3.939 |
*price indicative
- RS Stock No.:
- 871-1509
- Mfr. Part No.:
- B82731H2701A030
- Brand:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 27 mH | |
| Maximum DC Current | 700mA | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 1Ω | |
| Tolerance | -30 → +50% | |
| Length | 21mm | |
| Depth | 20mm | |
| Height | 15.5mm | |
| Dimensions | 21 x 20 x 15.5mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10kHz | |
| Lead Pitch | 12.5mm | |
| Series | B82731H | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 0.6mm | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | PC Pin | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 27 mH | ||
Maximum DC Current 700mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 1Ω | ||
Tolerance -30 → +50% | ||
Length 21mm | ||
Depth 20mm | ||
Height 15.5mm | ||
Dimensions 21 x 20 x 15.5mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10kHz | ||
Lead Pitch 12.5mm | ||
Series B82731H | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 0.6mm | ||
Maximum Operating Temperature +125°C | ||
Terminal Type PC Pin | ||
