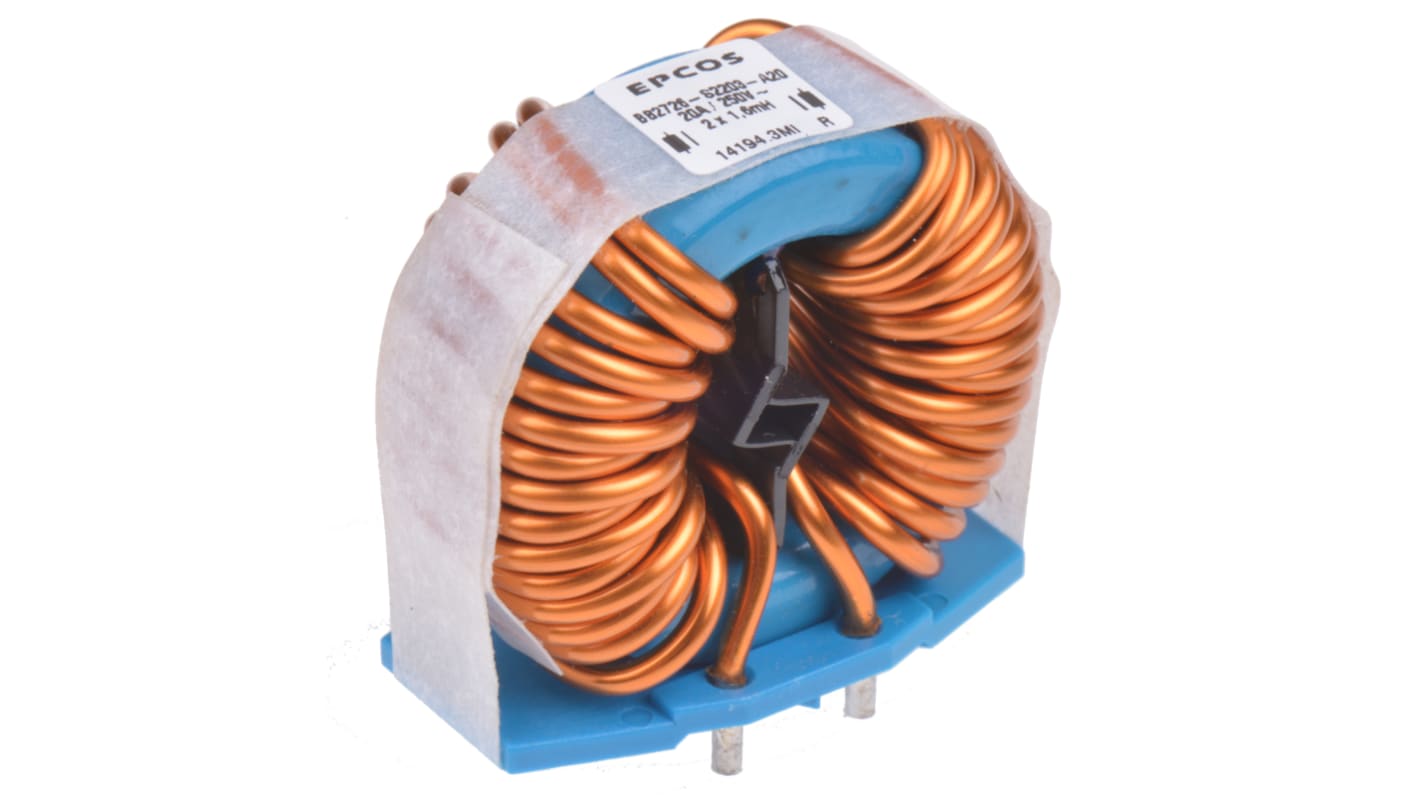

EPCOS 1.6 mH -30 → +50% Ferrite Power Line Choke, Max SRF:10kHz, 20A Idc, 4.5mΩ Rdc 250 V ac, B82726S
- RS Stock No.:
- 871-1376
- Mfr. Part No.:
- B82726S2203A020
- Brand:
- EPCOS
Subtotal (1 unit)*
£7.30
(exc. VAT)
£8.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,713 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.30 |
*price indicative
- RS Stock No.:
- 871-1376
- Mfr. Part No.:
- B82726S2203A020
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1.6 mH | |
| Maximum DC Current | 20A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 4.5mΩ | |
| Tolerance | -30 → +50% | |
| Diameter | 45mm | |
| Length | 45mm | |
| Depth | 25mm | |
| Height | 41mm | |
| Dimensions | 45 x 25 x 41mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10kHz | |
| Lead Pitch | 10mm | |
| Series | B82726S | |
| Terminal Type | PC Pin | |
| Lead Diameter | 2mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1.6 mH | ||
Maximum DC Current 20A | ||
Mounting Type Radial | ||
Maximum DC Resistance 4.5mΩ | ||
Tolerance -30 → +50% | ||
Diameter 45mm | ||
Length 45mm | ||
Depth 25mm | ||
Height 41mm | ||
Dimensions 45 x 25 x 41mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10kHz | ||
Lead Pitch 10mm | ||
Series B82726S | ||
Terminal Type PC Pin | ||
Lead Diameter 2mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Epcos B82726S Series Toroidal Inductors
B82726S3543N040 Series are Current-Compensated Ring Core double choke with a Ferrite Core
Polycarbonate base plate and spacer (UL 94 V-0)
Sector winding
Polycarbonate base plate and spacer (UL 94 V-0)
Sector winding
Suitable for wave soldering
Approx. 1% stray inductance for symmetrical interference suppression thus ideal for
Suppression of common-mode interferences and in Switch-mode applications
Approx. 1% stray inductance for symmetrical interference suppression thus ideal for
Suppression of common-mode interferences and in Switch-mode applications
