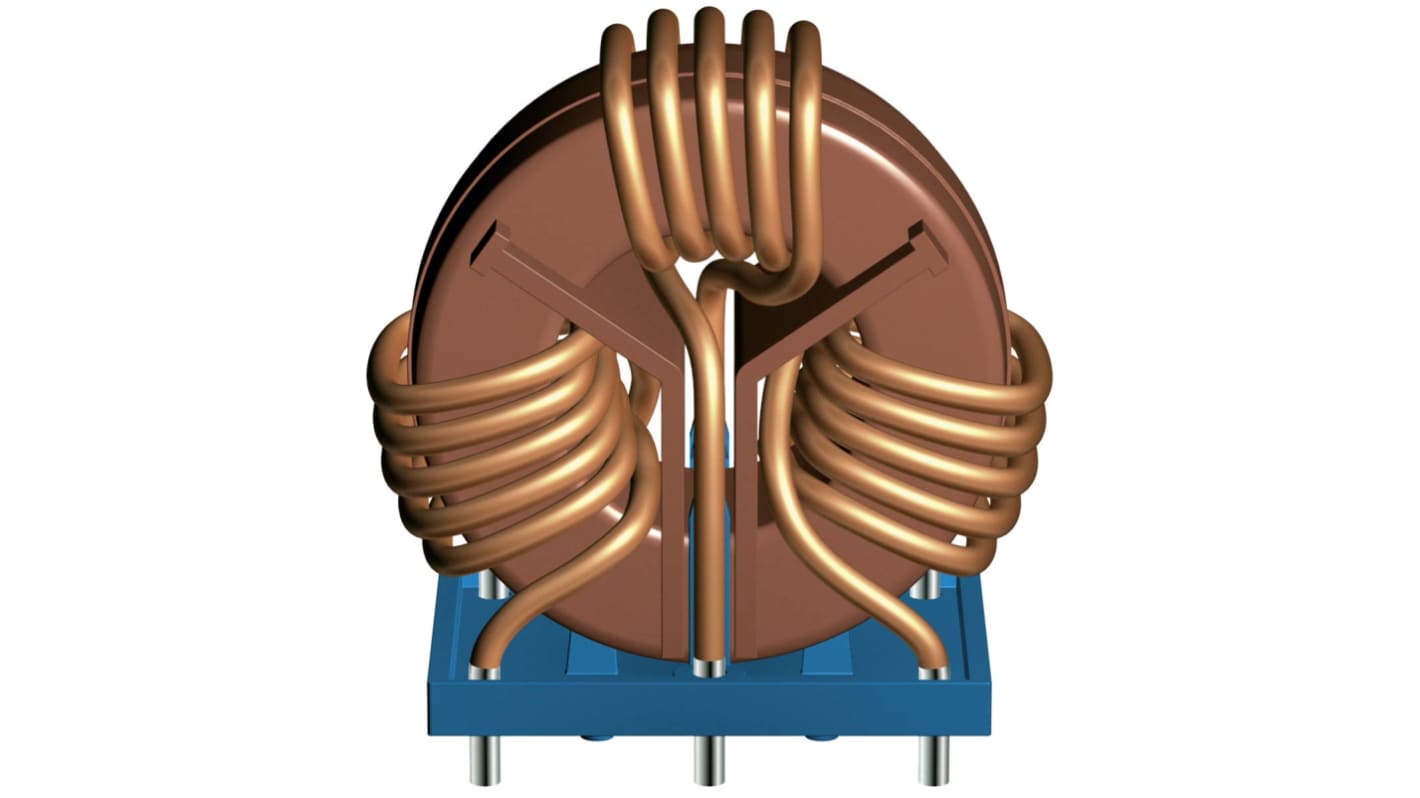

EPCOS 1.5 mH -30 → +50% Ferrite Power Line Choke, Max SRF:10kHz, 20A Idc, 4.2mΩ Rdc 350 V ac, B82747E
- RS Stock No.:
- 871-1395
- Mfr. Part No.:
- B82747E6203A040
- Brand:
- EPCOS
Subtotal (1 unit)*
£14.13
(exc. VAT)
£16.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.13 |
*price indicative
- RS Stock No.:
- 871-1395
- Mfr. Part No.:
- B82747E6203A040
- Brand:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1.5 mH | |
| Maximum DC Current | 20A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 4.2mΩ | |
| Tolerance | -30 → +50% | |
| Diameter | 65mm | |
| Length | 71mm | |
| Depth | 37mm | |
| Height | 66mm | |
| Dimensions | 65(Dia.) x 37 x 66mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10kHz | |
| Lead Pitch | 20mm | |
| Series | B82747E | |
| Minimum Operating Temperature | -40°C | |
| Terminal Type | PC Pin | |
| Lead Diameter | 2mm | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1.5 mH | ||
Maximum DC Current 20A | ||
Mounting Type Radial | ||
Maximum DC Resistance 4.2mΩ | ||
Tolerance -30 → +50% | ||
Diameter 65mm | ||
Length 71mm | ||
Depth 37mm | ||
Height 66mm | ||
Dimensions 65(Dia.) x 37 x 66mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10kHz | ||
Lead Pitch 20mm | ||
Series B82747E | ||
Minimum Operating Temperature -40°C | ||
Terminal Type PC Pin | ||
Lead Diameter 2mm | ||
Maximum Operating Temperature +125°C | ||
