- RS Stock No.:
- 772-0215
- Mfr. Part No.:
- B82725J2103N022
- Brand:
- EPCOS
473 In stock - FREE next working day delivery available
Price Each
£5.20
(exc. VAT)
£6.24
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £5.20 |
10 - 24 | £4.42 |
25 - 49 | £3.91 |
50 + | £3.38 |
- RS Stock No.:
- 772-0215
- Mfr. Part No.:
- B82725J2103N022
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

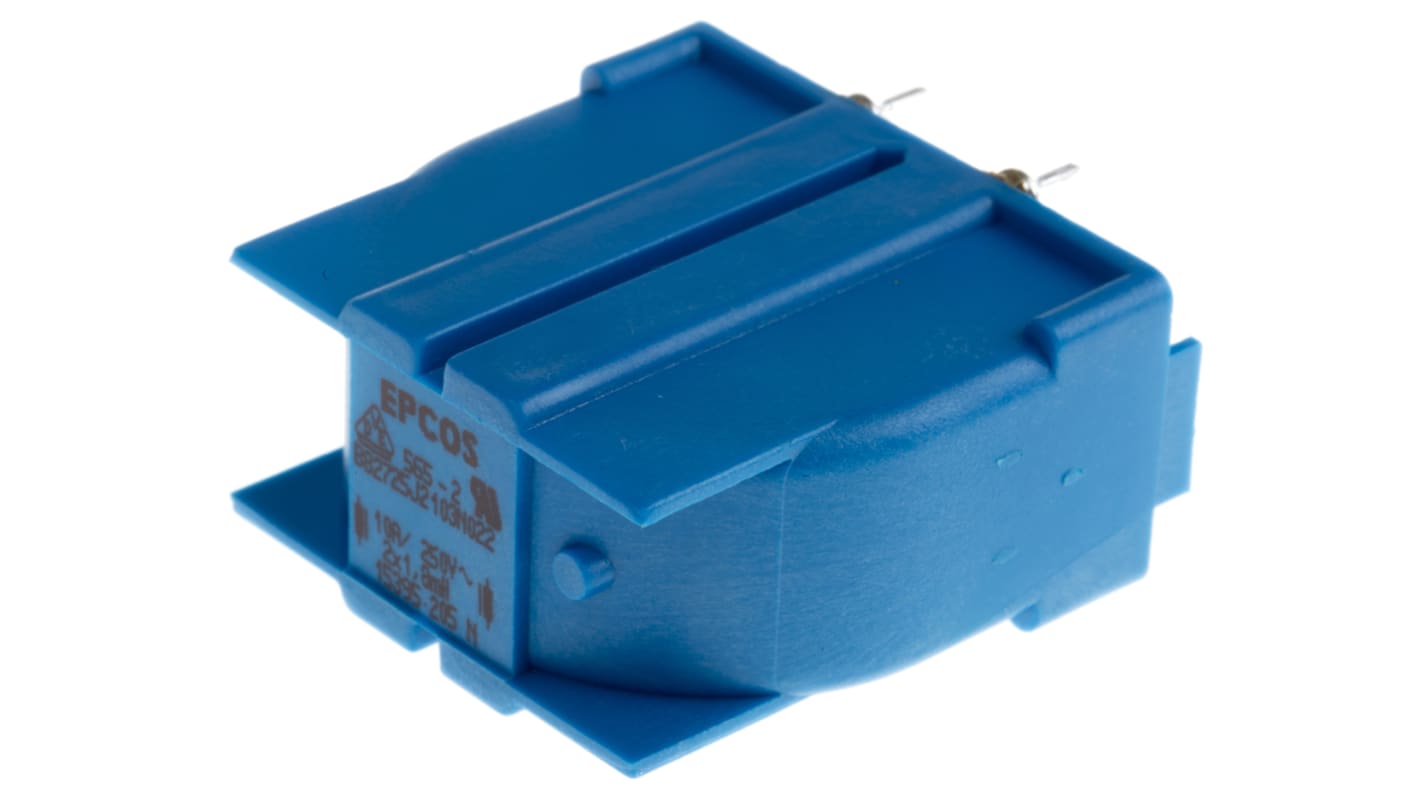

Epcos B82721A Series Common Mode Choke
Current-compensated ring core double chokes with a ferrite core in flame retardant potting and case to (UL94V-0)
High resonance frequency by virtue of the unique winding technique used
Applications include switch-mode power supplies for computers, televisions and other sensitive electronic equipment. Additionally the B82721/2/3/4/5A ranges of chokes are suitable for electronic ballasts in lamps, and the B82725J range of chokes is ideally suited for washing machines and chargers.
Low profile horizontal (-A/-B) versions
Vertical (-J/-K) versions save PCB space
High resonance frequency by virtue of the unique winding technique used
Applications include switch-mode power supplies for computers, televisions and other sensitive electronic equipment. Additionally the B82721/2/3/4/5A ranges of chokes are suitable for electronic ballasts in lamps, and the B82725J range of chokes is ideally suited for washing machines and chargers.
Low profile horizontal (-A/-B) versions
Vertical (-J/-K) versions save PCB space
Note
The stated Rated Current IR is referenced to 50Hz @ TA 40°C
The stated Rated Inductance LR is per Coil @ 20°C
The stated Rated Inductance LR is per Coil @ 20°C
Standards
VDE 0565-2 UL 1283
Approvals
VDE; UL Recognised Component
Approvals
UL; VDE
Specifications
Attribute | Value |
---|---|
Inductance | 1.8 mH |
Maximum DC Current | 10A |
Mounting Type | Radial |
Maximum DC Resistance | 13mΩ |
Tolerance | ±30% |
Length | 40.4mm |
Depth | 21.5mm |
Height | 40mm |
Dimensions | 40.4 x 21.5 x 40mm |
Core Material | Ferrite |
Lead Pitch | 12.5 mm, 17.5mm |
Series | B82721A |
Minimum Operating Temperature | -40°C |
Terminal Type | Radial Leaded |
Lead Diameter | 1mm |
Maximum Operating Temperature | +125°C |
