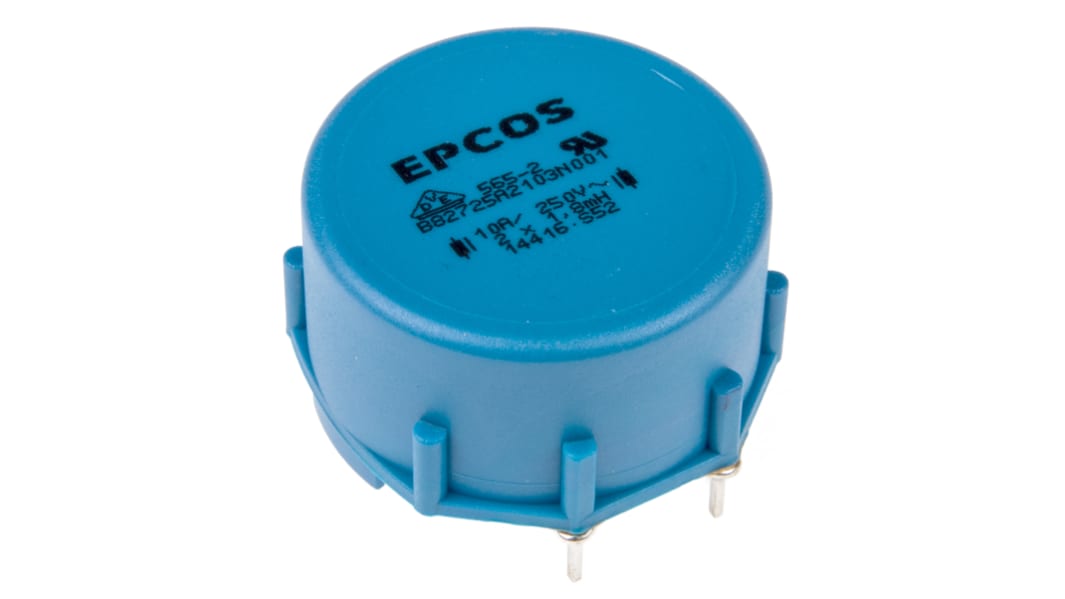

EPCOS 1.8 mH ±30% Ferrite Power Line Choke, 10A Idc, 14mΩ Rdc 250 V ac, B82725A
- RS Stock No.:
- 167-8324
- Mfr. Part No.:
- B82725A2103N001
- Brand:
- EPCOS
1 / 2
Subtotal (1 box of 160 units)**
£507.20
(exc. VAT)
£608.00
(inc. VAT)
Available to back order for despatch 15/07/2025*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Box** |
|---|---|---|
| 160 + | £3.17 | £507.20 |
**price indicative
- RS Stock No.:
- 167-8324
- Mfr. Part No.:
- B82725A2103N001
- Brand:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1.8 mH | |
| Maximum DC Current | 10A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 14mΩ | |
| Tolerance | ±30% | |
| Length | 44mm | |
| Depth | 42.4mm | |
| Height | 25mm | |
| Dimensions | 44 x 42.4 x 25mm | |
| Core Material | Ferrite | |
| Lead Pitch | 15 mm, 40mm | |
| Series | B82725A | |
| Lead Diameter | 1mm | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | PC Pin | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1.8 mH | ||
Maximum DC Current 10A | ||
Mounting Type Radial | ||
Maximum DC Resistance 14mΩ | ||
Tolerance ±30% | ||
Length 44mm | ||
Depth 42.4mm | ||
Height 25mm | ||
Dimensions 44 x 42.4 x 25mm | ||
Core Material Ferrite | ||
Lead Pitch 15 mm, 40mm | ||
Series B82725A | ||
Lead Diameter 1mm | ||
Maximum Operating Temperature +125°C | ||
Terminal Type PC Pin | ||
Minimum Operating Temperature -40°C | ||
