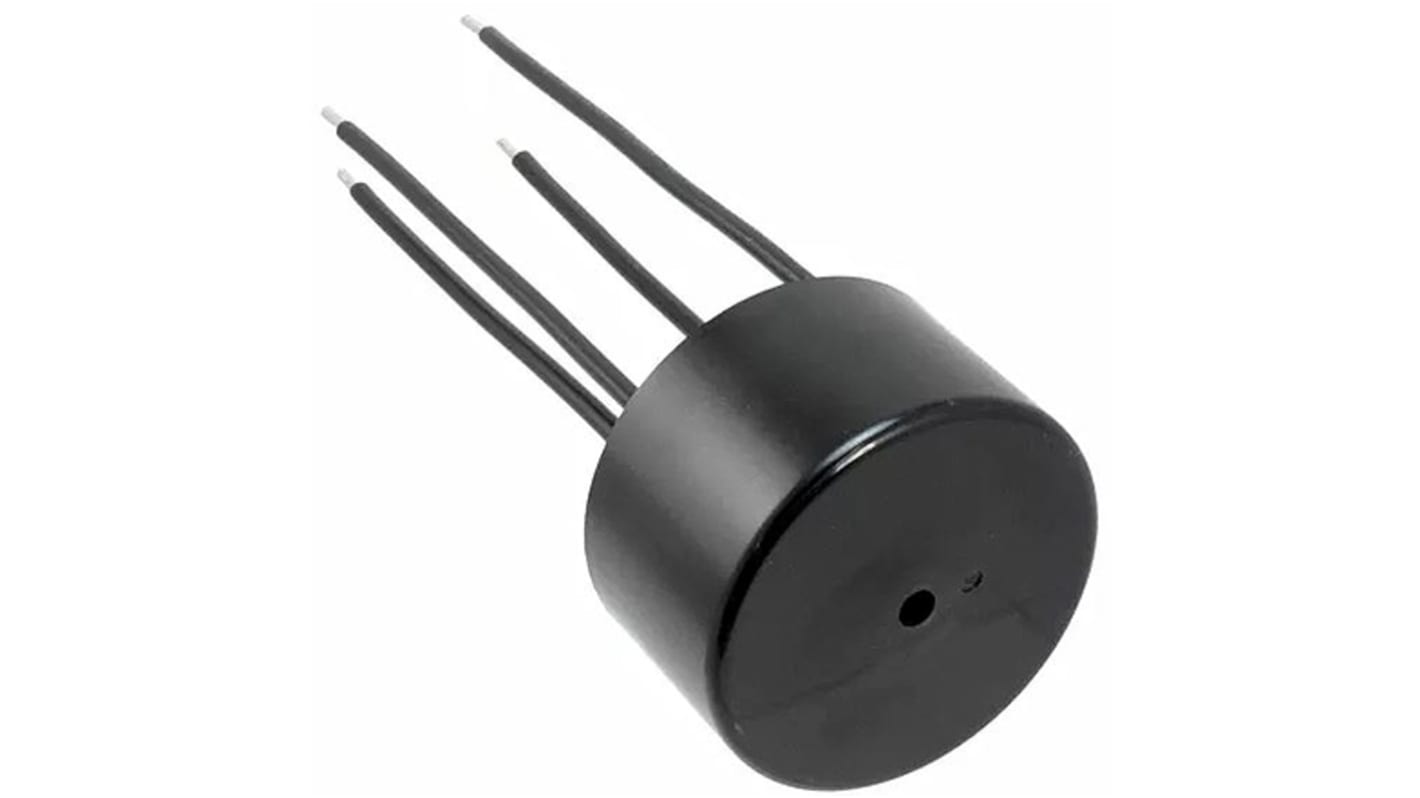

Schaffner 2.8 mH -30 → +50% Current Compensated Choke, 25A Idc, 6.4mΩ Rdc, RD

View all Leaded Inductors
Bulk discount available

Subtotal (1 unit)*

£23.42

(exc. VAT)

£28.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
  • Plus 14 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£23.42
10 - 24£22.76
25 - 49£22.16
50 - 99£21.56
100 +£21.01

*price indicative

RS Stock No.:
465-6247
Mfr. Part No.:
RD7127-25-2M8
Brand:
Schaffner
Find similar products by selecting one or more attributes.
Select all

Brand

Schaffner

Inductance

2.8 mH

Maximum DC Current

25A

Mounting Type

Lead Wire

Maximum DC Resistance

6.4mΩ

Tolerance

-30 → +50%

Diameter

70.5mm

Height

40.5mm

Dimensions

70.5 (Dia.) x 40.5mm

Series

RD

Maximum Operating Temperature

+110°C

Terminal Type

Wire

Minimum Operating Temperature

-25°C

Schaffner RD Series Common Mode Chokes


The RD series of chokes from Schaffner are attenuating common-mode or asymmetric (P/N ->E) interference signals, by being
connected in series with the phase and neutral lines of an AC powerline input. The Symmetrical of the noise are also attenuated due to the leakage inductance of the windings.

6A to 64A current ratings
Dual, Triple and Quad choke configurations

Applications


Filter networks
Decoupling tasks
Low power switch mode regulators
