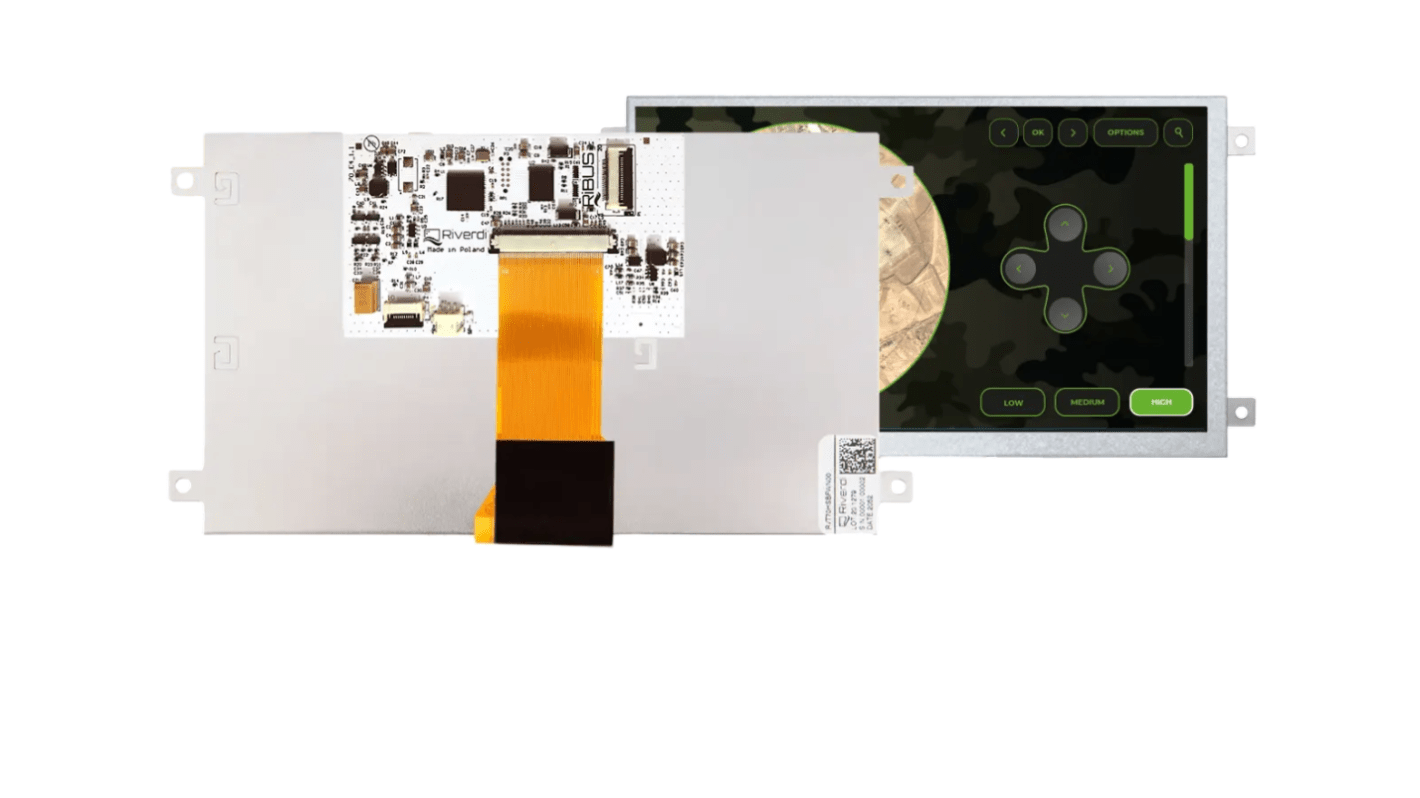

Riverdi RVT70HSBFWN00 TFT LCD Display, 7 in, 1024 x 600 pixel
- RS Stock No.:
- 672-224
- Mfr. Part No.:
- RVT70HSBFWN00
- Brand:
- Riverdi
Bulk discount available
Subtotal (1 unit)*
£70.25
(exc. VAT)
£84.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £70.25 |
| 5 + | £66.04 |
*price indicative
- RS Stock No.:
- 672-224
- Mfr. Part No.:
- RVT70HSBFWN00
- Brand:
- Riverdi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Riverdi | |
| Diagonal Display Size | 7in | |
| Product Type | TFT LCD Display | |
| Interface Type | SPI, QSPI | |
| Screen Resolution | 1024 x 600 pixel | |
| Touch Screen | No | |
| Viewing Area Dimensions | 154.21 x 85.92 mm | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 181.21mm | |
| Depth | 11.74mm | |
| Standards/Approvals | RoHS3 | |
| Height | 100.60mm | |
| Brightness | 1000cd/m² | |
| Contrast Ratio | 800:1 | |
| Display Type | TFT LCD | |
| Series | EVE4 IPS | |
| Select all | ||
|---|---|---|
Brand Riverdi | ||
Diagonal Display Size 7in | ||
Product Type TFT LCD Display | ||
Interface Type SPI, QSPI | ||
Screen Resolution 1024 x 600 pixel | ||
Touch Screen No | ||
Viewing Area Dimensions 154.21 x 85.92 mm | ||
Backlight Type LED | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Width 181.21mm | ||
Depth 11.74mm | ||
Standards/Approvals RoHS3 | ||
Height 100.60mm | ||
Brightness 1000cd/m² | ||
Contrast Ratio 800:1 | ||
Display Type TFT LCD | ||
Series EVE4 IPS | ||
- COO (Country of Origin):
- PL
The Riverdi 7 inch TFT display is equipped with a 1024x600px resolution for sharp and clear visuals. With a high brightness of 1000cd/m², it provides excellent visibility even in bright environments. The full IPS viewing angles ensure consistent color and clarity from any perspective, making it perfect for interactive and high-performance applications.
BT817Q graphics controller
QSPI/SPI interface
Mounting frame
