4D Systems gen4-uLCD-70D-WVA LCD Colour Display, 7 in, 800 x 480 pixel

View all LCD Colour Displays
Bulk discount available

Subtotal (1 unit)*

£115.59

(exc. VAT)

£138.71

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 - 4£115.59
5 +£108.65

*price indicative

RS Stock No.:
649-246
Mfr. Part No.:
gen4-uLCD-70D-WVA
Brand:
4D Systems
Find similar products by selecting one or more attributes.
Select all

Brand

4D Systems

Diagonal Display Size

7in

Product Type

LCD Colour Display

Screen Resolution

800 x 480 pixel

Current

815mA

Touch Screen

No

Viewing Area Dimensions

153.84 x 85.63 mm

Backlight Type

9x3 LEDs

Minimum Supply Voltage

4V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Height

102.1mm

Depth

7.2mm

Standards/Approvals

REACH and CE, RoHS

Width

187.0 mm

Brightness

470cd/m²

Display Type

TFT LCD

Series

gen4-uLCD-(43-70)D

Contrast Ratio

500:1

COO (Country of Origin):
AU

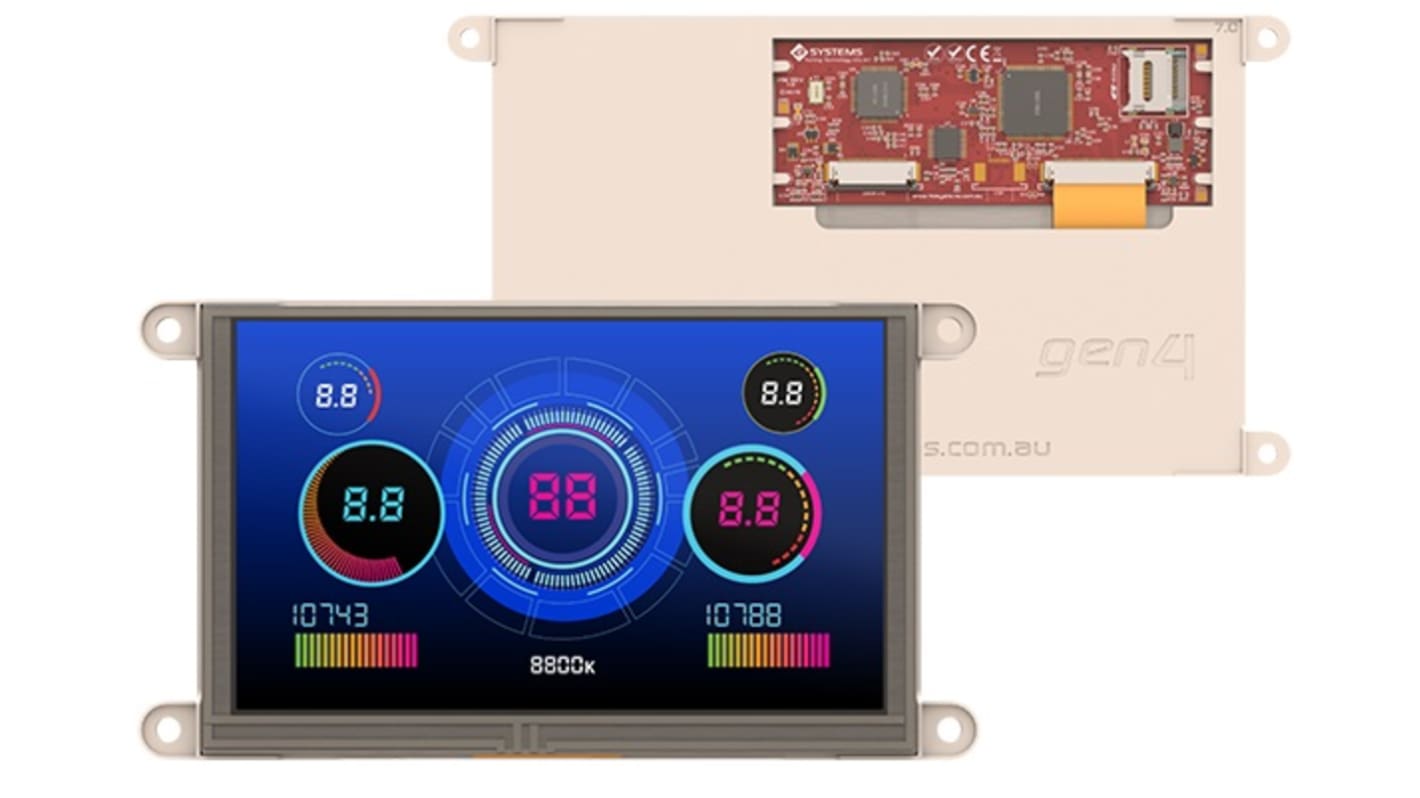

The 4D Systems Gen4 4.3 inch intelligent display module is part of the latest gen4 range designed and manufactured by 4D Systems. It features microSD memory storage, GPIO, communication interfaces, multiple millisecond-resolution timers, and built-in audio generation. The gen4 7.0 inch modules offer a resolution of 800x480. Both versions have the same touchscreen options and are mechanically identical, allowing interchangeable use in mounting solutions.

Latch-type micro-SD memory card connector for multimedia storage and data logging purposes

DOS-compatible file access (FAT16 format) as well as low-level access to card memory

Dedicated PWM Audio pin for sound generation, for an external amplifier
