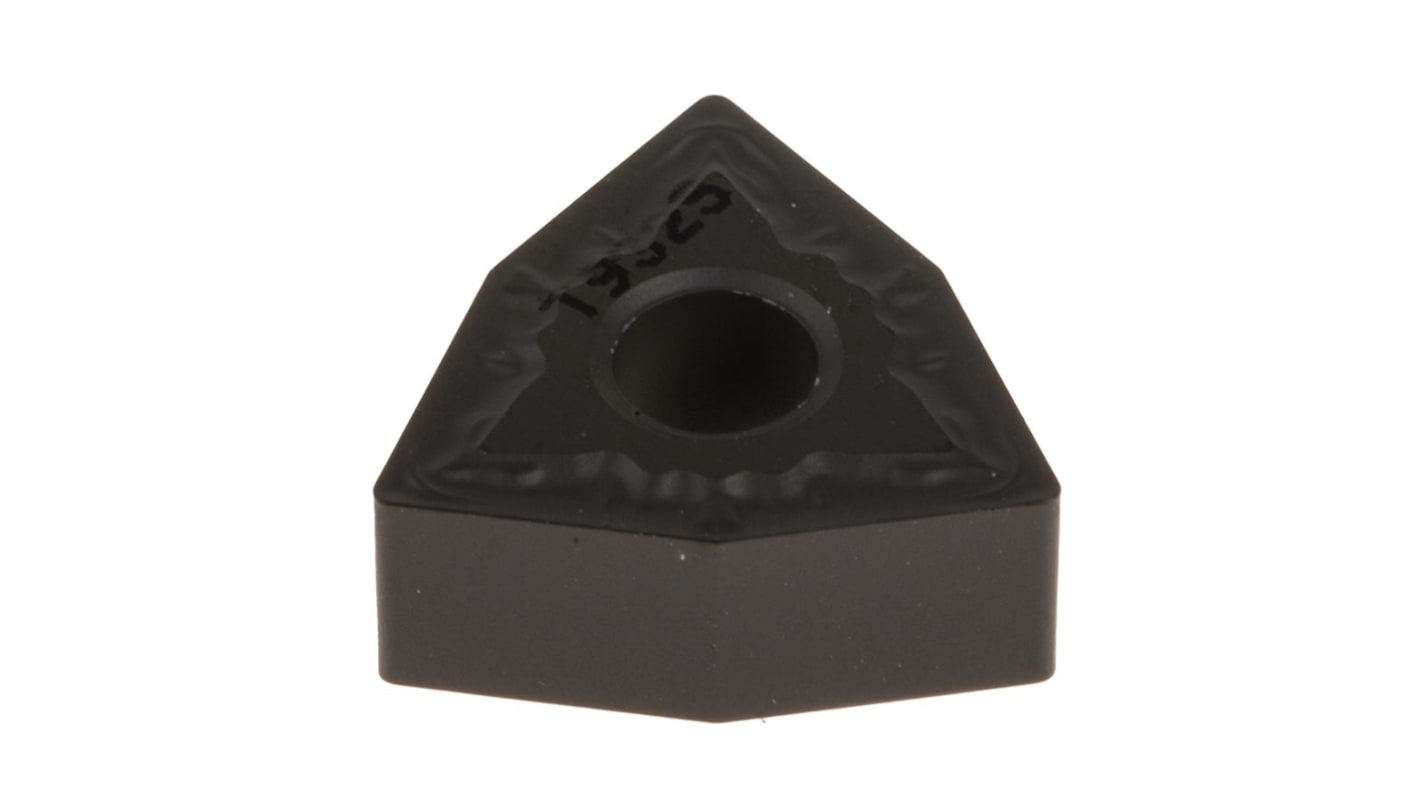

Pramet WNMG Series Lathe Insert for Use with PWLNR 0604, 4.76mm Height, 93° Approach, 6.5mm Length

View this category

Subtotal (1 box of 10 units)*

£113.25

(exc. VAT)

£135.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£113.25£11.325

*price indicative

RS Stock No.:
866-0388
Mfr. Part No.:
WNMG 060404E-FM:T9325
Brand:
Pramet
Find similar products by selecting one or more attributes.
Select all

Brand

Pramet

Lathe Part

Lathe Insert

Approach Angle

93°

Series

WNMG

For Use With

PWLNR 0604

Length

6.5mm

Height

4.76mm

RoHS Status: Exempt

COO (Country of Origin):
CZ

Pramet Lathe Part, 0.4mm Radius, 0.5 to 3mm Cutting Depth Range - WNMG Series - WNMG 060404E-FM:T9325


Cut your metal parts to the shape you need with this lathe part from Pramet. It works with your lathe machine to remove the excess substance from your rotating workpiece, giving you the desired dimensions and surface finish. Thanks to an approach angle of 93°, this unit has a robust cutting edge, which comes in handy when working with hard materials. This design also makes it fit for interrupted cuts, making it a versatile choice.

Features & Benefits


• Trigon shape means it's a versatile workmate for various operations like turning, facing and chamfering
• Cutting depth range between 0.5 and 3mm makes it useful on materials of different thicknesses

Applications


• Mechanical workshops
• Transportation industry
• Foundries

Is this lathe part indexable?


Yes, it's indexable, so you can easily replace it as needed.


Turning Inserts


Breakdown of ISO Reference


Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant


TU5525 the New Universal Turning Grade


TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.


TP2135 a Tough Impact Resistant Grade


If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.
